YOK0096MGI-Q1 0.96inch OLED Module SSD1306 Display with 128x64 Resolution and IIC Communication for UNO Mega2560 C51 STM32
  • Όνομα
  • Όνομα

YOK0096MGI-Q1 0.96inch OLED Module SSD1306 Display with 128x64 Resolution and IIC Communication for UNO Mega2560 C51 STM32

MOQ: 500 Τεμάχια
Τιμή: $1.2~1.36/pieces
standard packaging: 12*4*2
Delivery period: 14-60 ημέρες
Μέθοδος πληρωμής: T/T
Supply Capacity: 10000 τεμάχια
Πληροφορίες λεπτομέρειας
Περιγραφή προϊόντων
Αξιολογήσεις & Κριτικές
Πληροφορίες λεπτομέρειας
Τόπος καταγωγής
Γκουανγκντόνγκ, Κίνα
Μάρκα
YZY
Πιστοποίηση
CE, ROHS
Αριθμό μοντέλου
YOK0096MGI-Q1 (MC096GX)
Περιγραφή προϊόντων

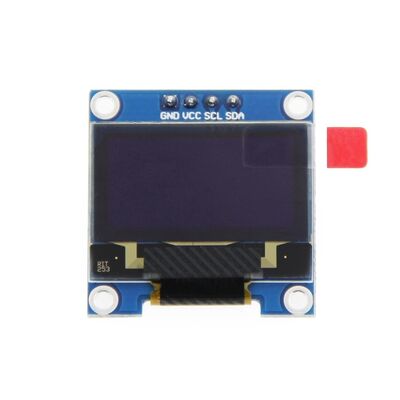

YOK0096MGI-Q1 0.96inch OLED Module SSD1306 Display with 128x64 Resolution and IIC Communication for  UNO Mega2560 C51 STM32

YOK0096MGI-Q1 0.96inch OLED Module SSD1306 Display with 128x64 Resolution and IIC Communication for UNO Mega2560 C51 STM32 0YOK0096MGI-Q1 0.96inch OLED Module SSD1306 Display with 128x64 Resolution and IIC Communication for UNO Mega2560 C51 STM32 1

Product description

  • High resolution: 128x64 (have the same resolution as 12864, high PPI)
  • Large viewing angle: greater than 160° (a screen with the largest viewing angle in the monitor)
  • Ultra-low power consumption: it's 0.06w in normal condition(far less than TFT display)
  • Wide voltage supply (3V~5V), 3.3V and 5V level logic compatible, no level shifter IC
  • IIC interface and only requires 2 IOs to light up easily
  • The range of working temperature is industrial (-20°C~70°C)
  • Military-grade process standards, long-term work steadily
  • Provide rich multi-platform routines and the technology support of underlying driver
  • Have three color display schemes of yellow and blue,white,blue to choose from
Product Specifications
YOK0096MGI-Q1 0.96inch OLED Module SSD1306 Display with 128x64 Resolution and IIC Communication for UNO Mega2560 C51 STM32 2

Interface definition

YOK0096MGI-Q1 0.96inch OLED Module SSD1306 Display with 128x64 Resolution and IIC Communication for UNO Mega2560 C51 STM32 3

Hardware description

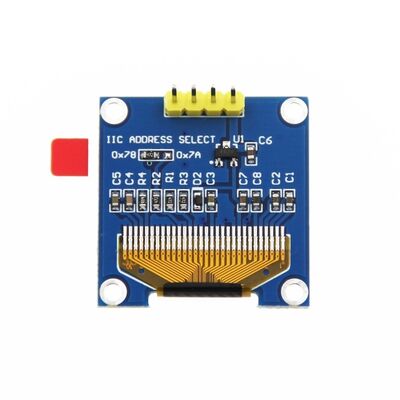

IIC hardware adjustment instructions of device address to slave device:

YOK0096MGI-Q1 0.96inch OLED Module SSD1306 Display with 128x64 Resolution and IIC Communication for UNO Mega2560 C51 STM32 4

As the picture shows,in the red rectangle,if the resistor is connected to 0x78,

it indicates that the IIC slave address is 0x78,if the resistor is connected to 0x7A,

it indicates that the IIC slave address is 0x7A.

Cooperative Partners
YOK0096MGI-Q1 0.96inch OLED Module SSD1306 Display with 128x64 Resolution and IIC Communication for UNO Mega2560 C51 STM32 5
Company Profile
Yingzhan Ying Technology was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company has always been committed to custom services, R&D, sales and after-sales services in the optoelectronic display industry.
The company's products include OLED modules, Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These products are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, financial services and other fields, making it a supplier to many well-known clients worldwide.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
Do you supply samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically 7 working days after payment confirmation.
What is the minimum order quantity?
1 piece minimum order quantity.
What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including Raspberry Pi development boards, LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
What shipping methods do you offer?
DHL and China Post shipping services available.
