IPS Portable Monitor 7 Inch 1024*600 Resolution HDMI And Raspberry Pi Compatibility

Products

IPS Portable Monitor 7 Inch 1024*600 Resolution HDMI And Raspberry Pi Compatibility

MOQ:	300pcs
Price:	$41.5-45/pieces
Delivery Period:	10-30 work days
Payment Method:	T/T
Supply Capacity:	5K/Month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin

Guangdong, China

Brand Name

Certification

CE/ROHS

Model Number

YCH070WVD-T

Display Size:

5 Inch

Supplier Type:

Factory

Highlight:

IPS Portable Monitor 7 Inch

7 Inch Portable Monitor 1024*600

IPS Portable Raspberry Pi Monitor

Product Description

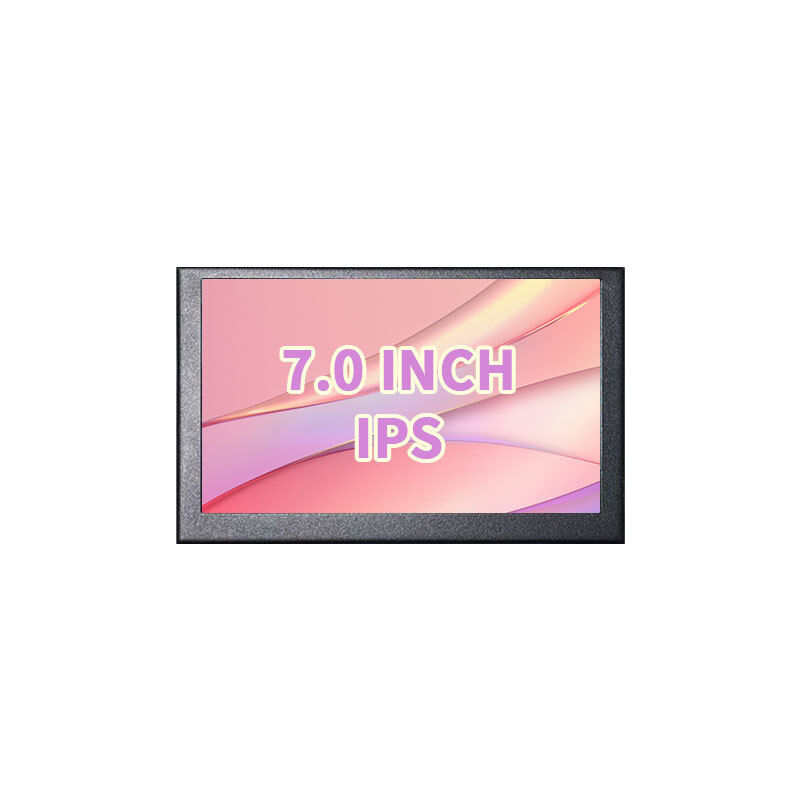

YCH070WVD-T 7 Inch IPS Portable Display with 1024*600 Resolution HDMI and Raspberry Pi Compatibility

Product Overview

The YCH070WVD-T is a 7-inch IPS HDMI LCD display with 1024*600 resolution and 5-point capacitive touch screen, designed for versatile applications including Raspberry Pi projects, gaming consoles, and computer displays.

Product dimension

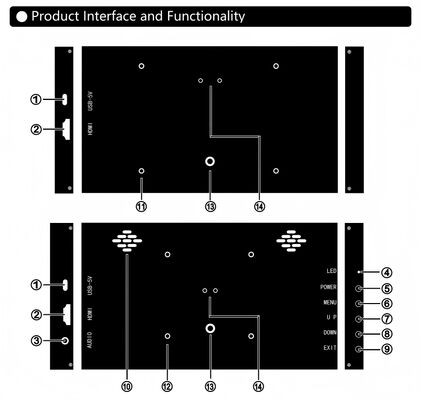

Interface and Controls

No	Component	Description
1	USB-5V	Power and touch signal input interface (USB-C)
2	HDMI	Video and audio signal input interface (miniHDMI/HDMI)
3	AUDIO	Audio output interface
4	LED	Power indicator (green: power-on, red: power-off)
5	POWER	Power button for on/off control
6	MENU	Activates OSD menu or confirms function adjustments
7	UP	Menu navigation or volume increase shortcut
8	DOWN	Menu navigation or volume decrease shortcut
9	EXIT	Menu exit or input signal switch shortcut
10	Speakers	1.5W×2 stereo speakers

Mechanical Structure

No	Feature	Description
11	M2.5/58×49mm	Mounting holes for Raspberry Pi 3B/4B motherboard
12	M3/75×75mm	VESA standard bracket fixing holes
13	M6	Fixing hole for monitor installation
14	Adjustable Angle	Bracket mounting hole (optional accessory)

Windows/macOS Connection

Connect HDMI cable between computer and monitor

For non-touch models: USB cable provides power only (≥0.5A current)

For touch models: Connect USB to Windows host with data transfer capability

Connect power before HDMI for proper signal transmission

Some macOS versions may have touch compatibility issues

Windows Display Settings

Right-click desktop → Select "Display settings"

2. Configure display preferences as needed

Game Console/TV Box Connection

Game devices don't support touch functionality
Connect power before HDMI cable

Raspberry Pi Setup

Download and install official Raspberry Pi image
Modify config.txt file by adding:
max_usb_current=1
hdmi_force_hotplug=1
config_hdmi_boost=7
hdmi_group=2
hdmi_mode=87
hdmi_drive=2
hdmi_cvt 1024600606000
Insert microSD card and connect Raspberry Pi via HDMI and USB (use ≥3A power supply)

Technical Specifications

Model	YCH070WVD-T
Screen Size	7.0 inch
Resolution	1024*600
Power Supply	DC 5V-1A (5W)
Viewing Angle	170° Full View
Dimensions	171×103×17.3mm
NTSC Ratio	50% NTSC
Response Time	25ms
Aspect Ratio	16:9
Contrast	800:1
Brightness	300cd/m²
Touch Function	Capacitive 5-Point Touch
Speakers	1.5W×2 Stereo
Shell Material	Aluminum Alloy (Black/White)
Mounting	Supports wall mounting (58×49mm)
Package Contents	LCD Screen, HDMI Cable, USB Cable, User Guide

Troubleshooting and FAQs

Display Problems

No display or black screen with proper cable connection:

Connect power (USB) before HDMI cable
Avoid using interface converters - some don't support this resolution
Check display driver installation (Linux/RPi may require system modifications)
Verify HDMI signal output from host

Display flickering, white screen, or auto power-off:

Possible insufficient power - use ≥3A supply for Raspberry Pi
Try different HDMI cable if signal is unstable

Touch Problems

Display works but touch doesn't respond:

Use original cables
Verify product touch capability
Restart computer with monitor connected
Ensure USB cable is properly connected to host
