11.6 Inch E-paper Display 960×640 Resolution Black/White 2-Color E-Ink Screen

(Model: YE0116A13)

Product Features

◊960×640 pixels display (100 DPI, pixel pitch 0.2547×0.2547mm)

◊Black/White (B/W) 2-color full display capabilities

◊High contrast & high reflectance (white L*=66, black L*=20)

◊Pure reflective mode & ultra wide viewing angle

◊Ultra-low power consumption (≤3μA deep sleep, 600mAs max update power)

◊Bi-stable display & wide commercial temperature range (0~50℃)

◊Hard-coat antiglare surface & on-chip display RAM

◊3-wire/4-wire SPI + I2C temp sensor interface (internal/external)

◊On-chip booster/regulator & RoHS2.0+REACH compliant

The YE0116A13 is an Active Matrix Electrophoretic Display (AMEPD) optimized for large-size high-information scenarios. It features an 11.6-inch active area (244.512×163.008mm) with 960×640 pixels (0.2547×0.2547mm pixel pitch, 100 DPI), supporting Black/White 2-color display—ideal for clear information presentation in electronic shelf labels, logistics tags, industrial control terminals, and large-format retail price signs. The module integrates a high-performance SSD1677 driver IC, including gate buffer, source buffer, timing control, oscillator, DC-DC converter, SRAM, and LUT, ensuring stable performance. With an outline dimension of 254.31×176.35×0.9mm (without masking film) and weight of 75.0±0.5g, it fits seamlessly into large-size device layouts. The hard-coat antiglare surface and pure reflective mode eliminate glare under strong light, while bi-stable technology ensures ultra-low power consumption—only drawing current during screen updates.

Type	E-Paper	Screen Refresh Method	Full Refresh
Resolution	960×640 (100 DPI)	Place of Origin	Shenzhen, China
Brand Name	Yingzhanying Technology	Outline Dimensions	254.31(H)×176.35(V)×0.9(D) mm (without masking film)
Supplier Type	All (IPS)	Active Area	244.512(H)×163.008(V) mm
Interface	3-wire/4-wire SPI (BS pin selectable), I2C	Driver IC	SSD1677
MOQ	5PCS	Operating Temperature	0~50℃ (45~70%RH)
Connector Type	24-pin 0.5mm ZIF Socket	Storage Temperature	-25~60℃ (max 5 years, 45~70%RH)
Colors	Black/White
Power Consumption	Update: ≤600mAs (25℃); Deep Sleep: ≤3μA

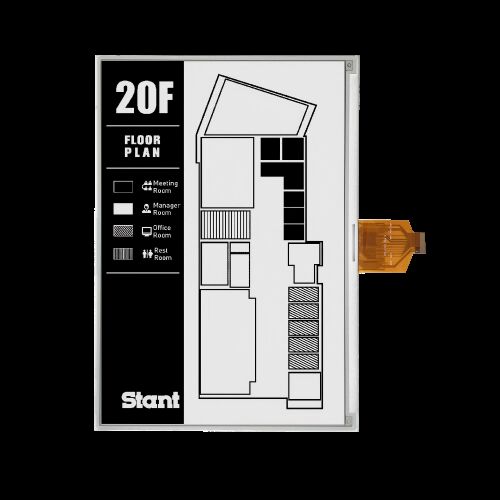

Product Picture

The YE0116A13 excels in large-size high-information scenarios with its 100 DPI resolution and 2-color capability. It clearly presents key information—black for text, barcodes, and data, white for background—making it perfect for electronic shelf labels, logistics tags, industrial control terminals, and large retail price signs. Its 960×640 high resolution and 11.6-inch large active area are tailored for displaying multi-line rich information, such as product specifications, price tiers, inventory status, detailed descriptions, and batch information. The hard-coat antiglare surface eliminates glare under direct sunlight, maintaining readability in retail stores, warehouses, or outdoor kiosks. With a slim thickness of 0.9mm and lightweight design, it fits into large-size device layouts, while ultra-low power consumption (≤3μA deep sleep) enables over 12 months of battery life for daily-updated applications.

The YE0116A13 is mainly designed for large Electronic Shelf Label (ESL) systems and industrial control with diverse industry applications. In retail, it serves as large electronic shelf labels for supermarkets, pharmacies, and bookstores, using 2-color display to present clear product descriptions/prices (black) and clean background (white)—enhancing customer information access and reducing manual label updates. Its low power consumption reduces retail maintenance costs. In logistics, it functions as large cargo tags, displaying complete waybills, transportation statuses, and batch information, withstanding -25~60℃ transportation for 10 days. In industrial control, it acts as status monitors, indicating normal (white) and fault (black) states for equipment. With RoHS2.0+REACH compliance and rigorous reliability testing (high/low temperature, vibration, drop impact), it meets global environmental and reliability demands for large-size 2-color e-paper applications.

Core Advantages

◊ Large-Size High-Res 2-Color Display: Clear Information Presentation

The YE0116A13 features an 11.6-inch large active area (244.512×163.008mm) with 960×640 resolution (100 DPI), supporting 2-color display for clear information classification. Its optical performance is excellent: white state L*=66, black state L*=20, ensuring high contrast and readability. The pure reflective mode saves power by eliminating backlighting, while the hard-coat antiglare surface reduces glare under direct sunlight. With an ultra-wide viewing angle, there’s no color or brightness deviation from any direction, supporting multi-person viewing for large shared devices like industrial monitors or retail price tags.

◊ Ultra-Low Power & Stable Performance: Long-Term Reliability

Powered by bi-stable technology, the module only consumes power during updates (max 600mAs at 25℃) and draws ≤3μA in deep sleep. A standard lithium battery can power daily-updated large devices for over 12 months, reducing battery replacement frequency. It integrates the SSD1677 driver IC with on-chip booster/regulator, generating VCOM, Gate (VGH/VGL), and Source (VSH1/VSH2/VSL) voltages internally, simplifying external circuits. The internal/external temperature sensor (I2C) enables real-time waveform adjustment, ensuring stable operation in 0~50℃. It passed rigorous reliability tests, including 240-hour high/low-temperature storage, 168-hour high-humidity operation, and 50 temperature cycles (-25℃~60℃), ensuring long-term use.

◊ Flexible Interface & Easy Integration: Low Development Cost

The module supports 3-wire/4-wire SPI (selectable via BS pin) and I2C for temperature sensors, compatible with most MCUs and embedded systems—no complex drivers needed. Pins 6 (TSCL) and 7 (TSDA) must be grounded if external temperature sensors aren’t used (not NC). The 24-pin 0.5mm ZIF Socket enables quick, secure installation. Waveform is stored in on-chip OTP with 10-byte space for module identification, supporting custom programming. The flexible FPC with PI stiffener (total thickness 0.30±0.03mm) simplifies installation in non-flat large device layouts, reducing development cycle and cost.

◊ Durable & Wide Adaptability: Harsh Environment Resistant

With an outline of 254.31×176.35×0.9mm and weight of 75.0±0.5g, the YE0116A13 is suitable for large-size device integration. The hard-coat antiglare surface resists scratches and fingerprints, while RoHS2.0+REACH compliance meets global environmental standards. It supports transportation temperature -25~60℃ (10 days) and storage temperature -25~60℃ (max 5 years), adapting to harsh environments like cold storage, warehouses, or outdoor retail. It passed vibration testing (1.04G, 10~500Hz) and drop impact (100cm height on concrete), ensuring durability during transportation and use. The 5-year design life (25℃/60%RH, daily updates) guarantees long-term reliable operation for large electronic shelf labels and industrial devices.

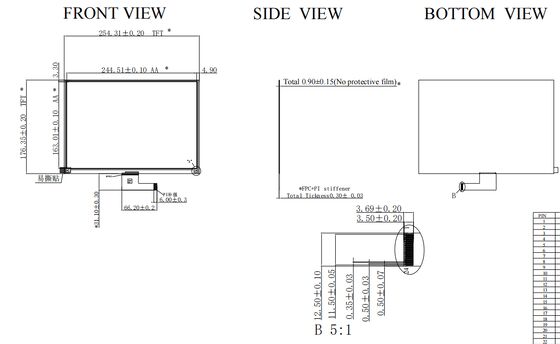

Technical Drawing

PIN Definition

PIN	Symbol	Description	Remark
1	NC	No connection and do not connect with other NC pins	Keep Open
2	GDR	N-Channel MOSFET Gate Drive Control
3	RESE	Current Sense Input for the Control Loop
4	NC	No connection and do not connect with other NC pins	Keep Open
5	VSH2	Positive Source driving voltage for Red
6	TSCL	I²C Interface to digital temperature sensor Clock pin	Ground if external sensor not used (not NC)
7	TSDA	I²C Interface to digital temperature sensor Data pin	Ground if external sensor not used (not NC)
8	BS	Bus selection pin	Low=4-wire SPI, High=3-wire SPI (9 bits)
9	BUSY_N	Busy state output pin	H=Driver busy, L=Can send command/data
10	RST_N	Global reset pin	Active low
11	DC	Data/Command control pin	High=Data, Low=Command
12	CSB	Chip Select input pin	Low=IC enabled for MCU communication
13	SCL	Serial clock pin (SPI)
14	SDA	Serial data pin (SPI)
15	VDDIO	Power for interface logic pins
16	VCC	Power Supply pin for the chip	2.4~3.6V
17	VSS	Digital ground
18	VDD	1.5V voltage input & output
19	VPP	Power Supply for OTP Programming (10V)
20	VSH1	Positive Source driving voltage
21	VGH	Positive Gate driving voltage
22	VSL	Negative Source driving voltage
23	VGL	Negative Gate voltage
24	VCOM	VCOM driving voltage	OTP programmed in factory

Customization Options

The YE0116A13 offers multiple customization options to meet diverse large-size 2-color application needs:

FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.

Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.

Display Colors: Various color combinations available for customization, including black-white-red-yellow, black-white, black-white-red, etc.

Refresh Modes: Multiple refresh methods customizable, such as fast refresh, slow refresh, full refresh, partial refresh, and more.
