YZY 7.3 Inch Smart Digital Photo Frame with E Ink Spectra 6 Full Color Display and Low Power Consumption for Indoor Advertising

Name: YZY 7.3 Inch Smart Digital Photo Frame with E Ink Spectra 6 Full Color Display and Low Power Consumption for Indoor Advertising
Brand: Shenzhen YZY Technology Co., Ltd
SKU: YC0730NJT-P1
Price: 93.00 USD
Availability: InStock

Brand Name:	YZY
Model Number:	YC0730NJT-P1
MOQ:	100
Price:	88-98USD/Pcs
Payment Terms:	T/T
Supply Ability:	10000Pcs/Month

Detail Information

Product Description

Detail Information

Place of Origin:

china shenzhen

Certification:

CE ROHS

Packaging Details:

Box

Highlight:

E Ink Spectra 6 Full Color Display Smart Digital Photo Frame

Low Power Consumption E Ink Display

7.3 Inch Display Indoor Advertising Board

Product Description

YZY 7.3 Inch Smart Digital Photo Frame

Indoor Smart Advertising Board with E Ink Spectra 6 (E6) Full Color E-Paper E-Ink Display

Product Features

Advanced E Ink Spectra 6 color technology displaying six rich colors with exceptional clarity
Extremely low power consumption with minimal electricity usage during screen refresh
Energy-saving circuit powered by large-capacity 5-volt dry battery for up to one year of worry-free operation
Elegant solid wood frame design with horizontal/vertical support and hook for flexible placement options
Open-source platform enabling full customization of functions and features

YC0730NJT-P1 7.3 Inch E-Ink Display Specifications

Display Size (diagonal)	7.3 Inch
Display Type	Eink Spectra 6
Color Support	Red, Yellow, Blue, White, Green, Black
Display Viewing Area	163.2mm (H) * 97.92mm (V)
Resolution	800 * 480
Charging Interface	Type-C with USB communication support

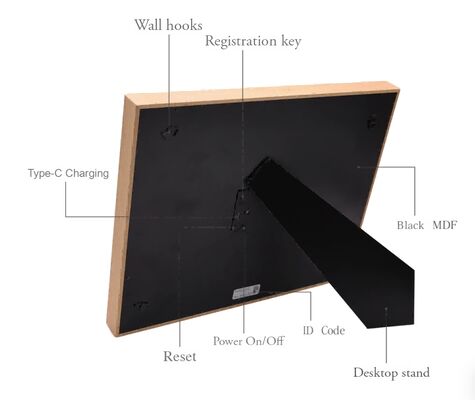

Function Keys	Power, Reset, Registration
Wireless Connectivity	WiFi b/g/n, Bluetooth 5.0
Status Indicator	RGB status indicator light
Shell Material	Solid wood (Pine wood)
Power Adapter	5V/1.5A
Built-in Battery	3.8V/5000mAh
Power Consumption (graph refresh)	≤ 3W
Dormant Power	Approximately 400μA
Update Time	≤ 15 seconds

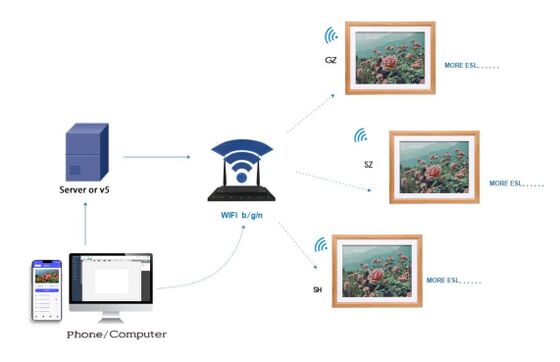

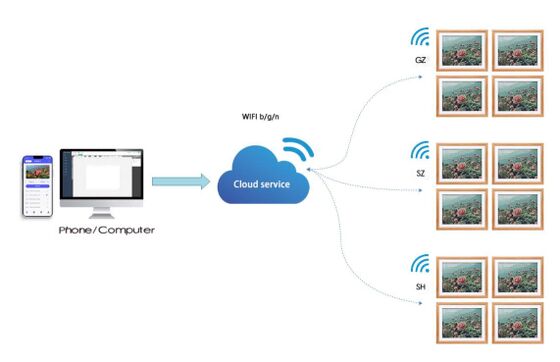

Update Method	Mobile phone APP
Product Dimensions	240 * 176 * 24mm
Net Weight	Approximately 0.4kg
Gross Weight	Approximately 0.8kg
Storage Temperature	-25°C to 60°C
Working Temperature	0°C to 50°C
Humidity	30% to 90%

Device Registration Process

Press and hold the Registration key without releasing it. The green light will remain on continuously. Then press the Reset key once. Wait for the green light to flash briefly, and then release the key. The green light will slow down its flashing, and the device will enter the configuration registration mode.

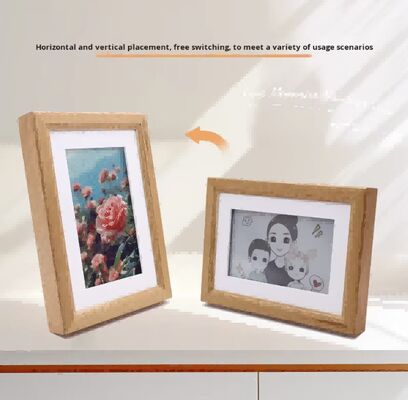

Flexible Placement Options

Multifunctional placement design suitable for both horizontal and vertical use, with wall mounting and tabletop options for various usage scenarios.
