27 Inch 1920×1080 IPS 10-Point Capacitive Touch RK3568 Android All-In-One

This 27-inch industrial Android touch all-in-one model D1-270A (Model YC2700VQU-Q1) adopts IPS TFT LCD screen, native 1920*1080 resolution with optional 1920*1200 display. Equipped with 10-point capacitive touch panel with IP65 dust & splash-proof front glass. Built-in low-power RK3568 industrial chip, pre-installed Android 10, optional Linux4.19 / Debian operating system. Integrated RJ45 Ethernet, WiFi6, Bluetooth 5.0, dual USB, TF, HDMI, DC interfaces, 4G LTE module optional. Support VESA wall mount, cantilever bracket and desktop stand three installation modes, widely used in retail, hotel, catering, education, medical, transportation and government office information terminals.

D1-270A YC2700VQU-Q1 is a 27-inch industrial Android touch all-in-one integrating IPS LCD and seamless full lamination capacitive touch screen. It features low power consumption, high integration and stable long-time continuous operation. The front touch surface reaches IP65 protection grade against dust and liquid splashes, suitable for indoor and semi-outdoor working environments. Multiple custom options are available: AG anti-glare coating, anti-fingerprint layer, full bonding touch, 500/800cd/m² high brightness, alternative RK series processors, 4GB RAM & 32G/64G storage upgrade, built-in 4G LTE module. It has passed complete ESD/EFT/Surge/PFMWF industrial anti-interference tests, supports remote OTA firmware upgrade and cloud unified terminal management, perfect for mass self-service kiosk and factory automation HMI projects. This A-grade industrial machine has a 10-year environmental service life, stable and durable for long-term commercial operation.

• 27-inch IPS wide viewing screen, default 1920*1080 FHD resolution, optional 1920*1200 high resolution
• 10-point capacitive touch glass with IP65 dustproof and splash-resistant front surface
• Optional AG anti-glare & anti-fingerprint coating, seamless full lamination touch available
• Low-power RK3568 industrial mainboard, stable Android 10 for 24-hour non-stop continuous operation
• Complete communication system: RJ45 wired + WiFi6 + BT5.0, expandable 4G LTE cellular module
• Abundant peripheral ports: HDMI, dual USB, TF card for external device expansion
• Three universal installation options: VESA wall mount, cantilever arm, desktop base bracket
• Supports remote OTA firmware update and cloud batch terminal management
• 300cd/m² standard brightness, upgradeable to 500/800 nits for bright lighting scenes
• Pass full industrial EMC anti-interference test, stable operation in factory & shopping mall environment
• A-grade industrial equipment with complete aging test, 10-year environmental service life
• Full customization service: touch scheme, shell color, silk logo, system firmware, mounting brackets
• Independent rear heat dissipation channel to avoid overheating damage during long-time running

• Supermarket & chain retail self-service payment & inquiry kiosks
• Hotel lobby information display & room intelligent control touch panels
• Catering industry self-order touch cash register terminals
• School interactive education teaching display equipment
• Hospital ward monitoring & medical auxiliary touch terminals
• Factory automation workshop HMI operation panels
• Cosmetic & pharmacy boutique commodity display screens
• Public transport station & government office inquiry machines

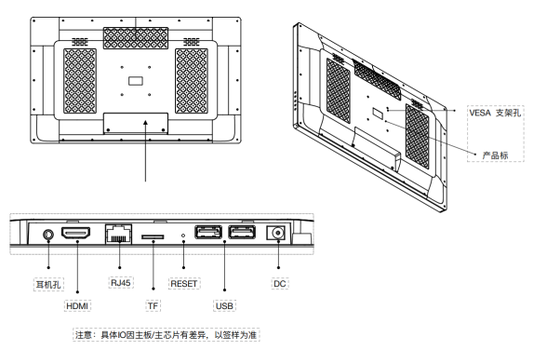

Product Drawing

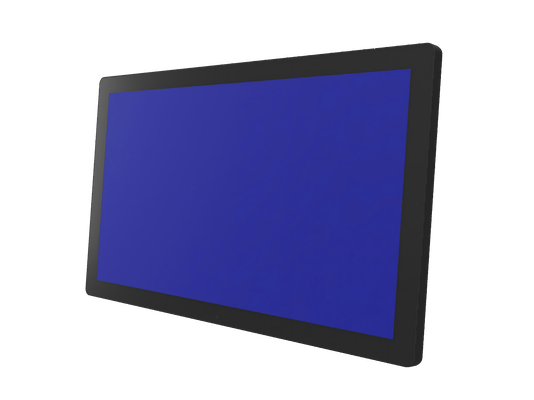

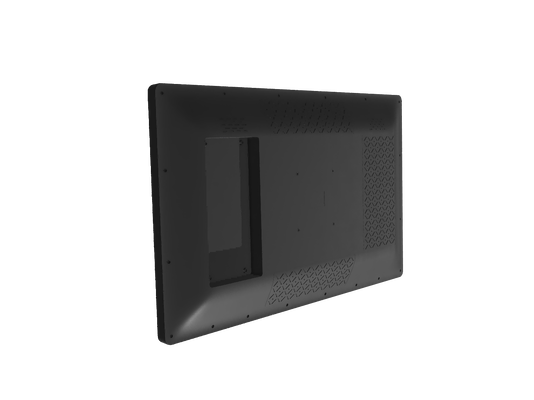

Product Image

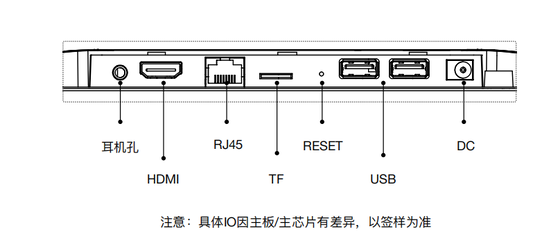

IO Interface Circuit Diagram

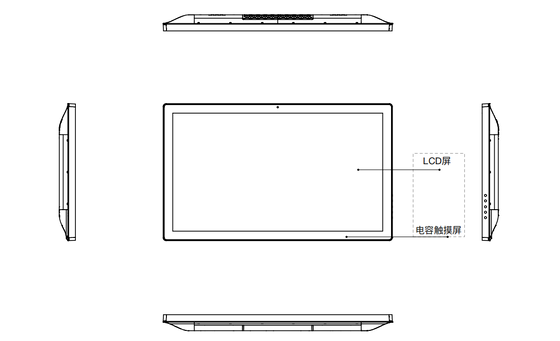

Mechanical Dimension Drawing

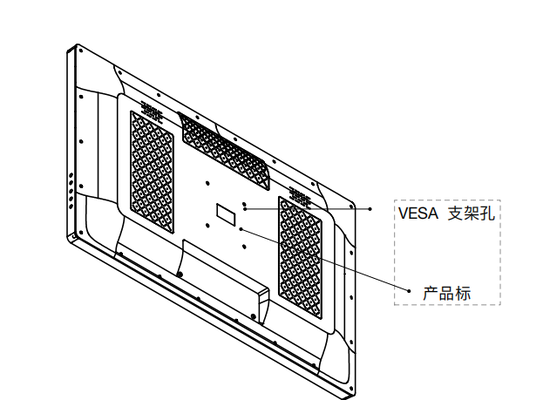

Wall / Cantilever / Desktop Mount Diagram

Shipping & Packaging Information
