| Brand Name: | YZY |
| Model Number: | YT0500C1I-Q1 |
| MOQ: | 500 pcs |
| Price: | $6–8 / Piece |
| Payment Terms: | T/T |
Projected Capacitive Touch Panel
GT911 IC | IIC(I2C) Interface | 10‑point Multi‑touch
YT0500C1I‑Q1 is a 5.0‑inch G+G projected capacitive touch panel equipped with GT911 touch controller IC and IIC(I2C) communication interface, supporting 10‑point multi‑touch input. Adopting tempered glass material, it delivers ≥6H surface hardness and ≥86% light transmittance. Widely applied in industrial HMI, measuring instruments, smart control terminals and various embedded touch devices.
Equipped with FPC flexible cable, this touch panel supports input by finger or conductive stylus, maintaining stable touch performance within wide temperature range.
YT0500C1I‑Q1 Main View
FPC Flexible Cable & GT911 Chip
| Item | Specification |
| Part Number | YT0500C1I‑Q1 |
| Display Size | 5.0 Inch |
| Structure | G+G |
| Touch IC | GT911 |
| Communication Interface | IIC(I2C) |
| Touch Points | 10‑point Multi‑touch |
| Cover / Sensor Thickness | 0.7mm / 0.7mm |
| Active Area | 109.15 * 66.1 mm |
| View Area | 108.15 * 65.1 mm |
| Surface Hardness | ≥6H |
| Light Transmittance | ≥86% |
| Working Environment | ‑10℃ ~ +60℃, ≤65%RH |
| Storage Environment | ‑20℃ ~ +70℃, ≤65%RH |
| Input Method | Finger / Conductive Stylus |

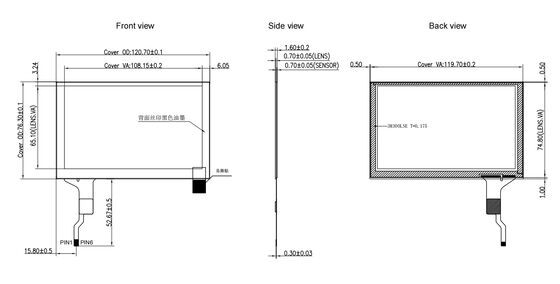

YT0500C1I‑Q1 Dimension Drawing (For Reference Only)
Multiple custom options available for YT0500C1I‑Q1: cover glass logo printing, FPC cable length modification, interface definition and special‑shape cutting.
We support sample testing and mass‑volume production for your project.
We provide sample support, customized touch panel solutions and competitive quotation.
Welcome to send inquiry for YT0500C1I‑Q1 datasheet and engineering drawing.
Looking forward to your inquiry.
