| Brand Name: | YZY |
| Model Number: | YBC076NNM-G01-8 |
| MOQ: | 500 pcs |
| Price: | Negotiable |
| Payment Terms: | T/T |
7.6 Inch Square TFT LCD Module | 800×800 | MIPI DSI | 1000 cd/m² | Wide Temperature Industrial LCM
Model YBC076NNM‑G01 is a 7.6‑inch square industrial TFT‑LCM display module with resolution 800(RGB)×800 pixels, adopting Normally‑Black display mode, support 16.7M rich colors. Equipped with 4‑lane MIPI DSI interface, typical brightness reaches 1000cd/m², full viewing angle performance. Wide working temperature from ‑20℃ ~ +70℃, storage temperature ‑25℃ ~ +75℃, fully RoHS compliant.
This module supports optional G+G capacitive touch screen. It can perfectly match our HDMI‑to‑MIPI driver board (LRX_H2MIPI30P_TP_V2.0), greatly simplifying customer prototype testing and product development. The LCM passed strict reliability test, suitable for harsh industrial environment.

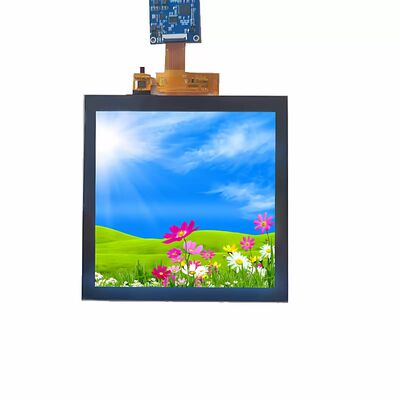

Product Front View
Module outline dimension: 142.56(H) × 148.24(V) × 5.1(D) mm; Active display AA area: 135.36 × 135.36 mm. General tolerance ±0.2mm. Please check mechanical drawing for FPC pin definition and assembly suggestion.
Mechanical Drawing

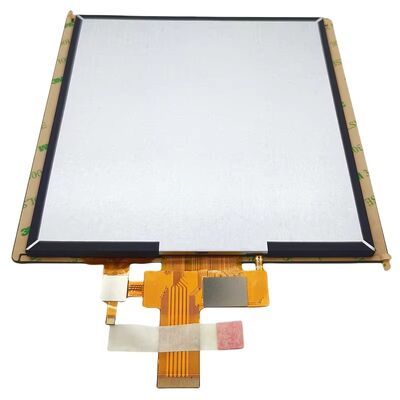

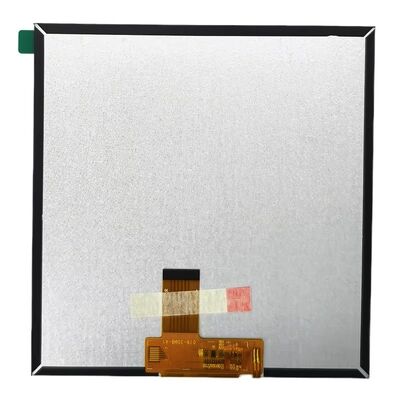

Product Back View
This LCM module has passed complete reliability validation: high / low temperature storage & operation test, high temperature & humidity storage, thermal shock, drop test, vibration and ESD test. Stable performance for long‑term industrial working condition.

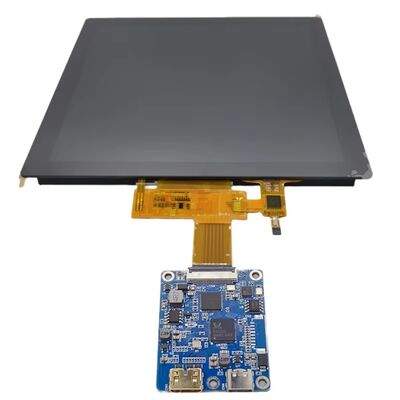

Optional matching HDMI‑MIPI converter board LRX_H2MIPI30P_TP_V2.0. Support HDMI input, MIPI output, Type‑C power supply. It helps customers quick evaluation without developing mainboard firmware.
YBC076NNM‑G01 square TFT‑LCD module is widely used for industrial HMI control terminals, smart instrument panel, automation control equipment, medical auxiliary display device, embedded system, outdoor handheld terminal, IoT human‑machine interaction equipment. We accept custom service for brightness, touch function, FPC pin definition and backlight parameters.
Application Scenario‑1
Application Scenario‑2
Should you have any inquiries about YBC076NNM‑G01 including sample request, quotation, datasheet download or customized requirements, please feel free to send us your message. We will give you professional reply within 24 working hours.
