160RGB×160 Square IPS Screen,4‑Line SPI,GC9D01,All‑Viewing‑Angle Small Display
YVO0071DDS‑J2 is ultra‑compact 0.71‑inch square IPS TFT‑LCD module with resolution 160RGB×160. Adopt GC9D01 driver IC and 4‑Line SPI interface, support 262K colors, all‑angle viewing performance.
Working temperature ‑20℃~70℃, 10000‑hour LED backlight lifetime. Super small outline, suitable for mini wearable and micro embedded devices with limited installation space.

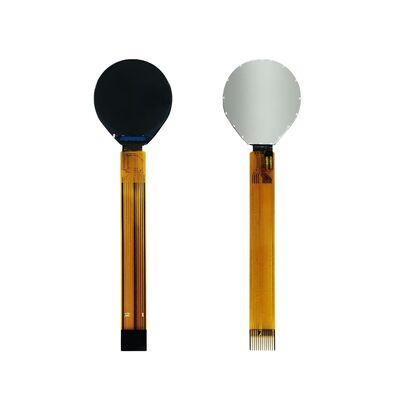

Module Main View

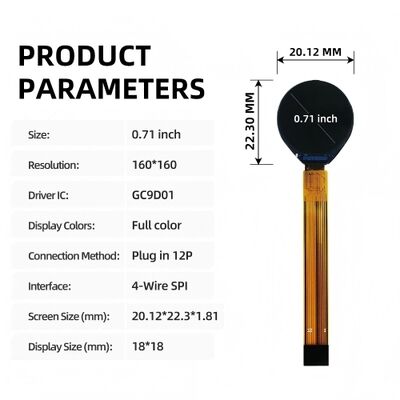

| Model Number | YVO0071DDS‑J2 |
| Screen Size | 0.71 Inch |
| Display Type | IPS TFT, Normally Black |
| Resolution | 160RGB × 160 |
| Active Area | 18.0(W) × 18.0(H) mm |
| Module Dimension | 20.12(W) × 22.3(H) ×1.81(T) mm |
| Display Colors | 262K |
| Interface Type | 4‑Line SPI |
| Driver IC | GC9D01 |
| LED Backlight Lifetime | 10000 Hours |
| Operating Temperature | ‑20℃ ~ +70℃ |
| Storage Temperature | ‑30℃ ~ +80℃ |

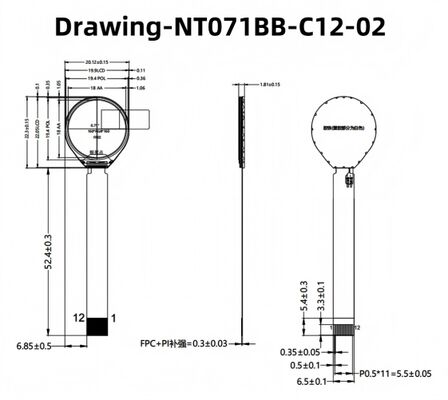

Outline Dimension Diagram
Based on this 0.71‑inch tiny square IPS screen, we provide partial customization services for your mini embedded projects.
Custom Display Solutions
Schematic & Timing Chart
This ultra‑small square IPS SPI display features full viewing angle, mainly applied in compact wearable devices and micro‑size embedded products.
Mini Wearable Device
Used for miniature wearable equipment, for simple status icon and numerical parameter display.
Micro Embedded Module
Suitable for micro embedded control modules, small‑size instrument indicator and prompt information output.
