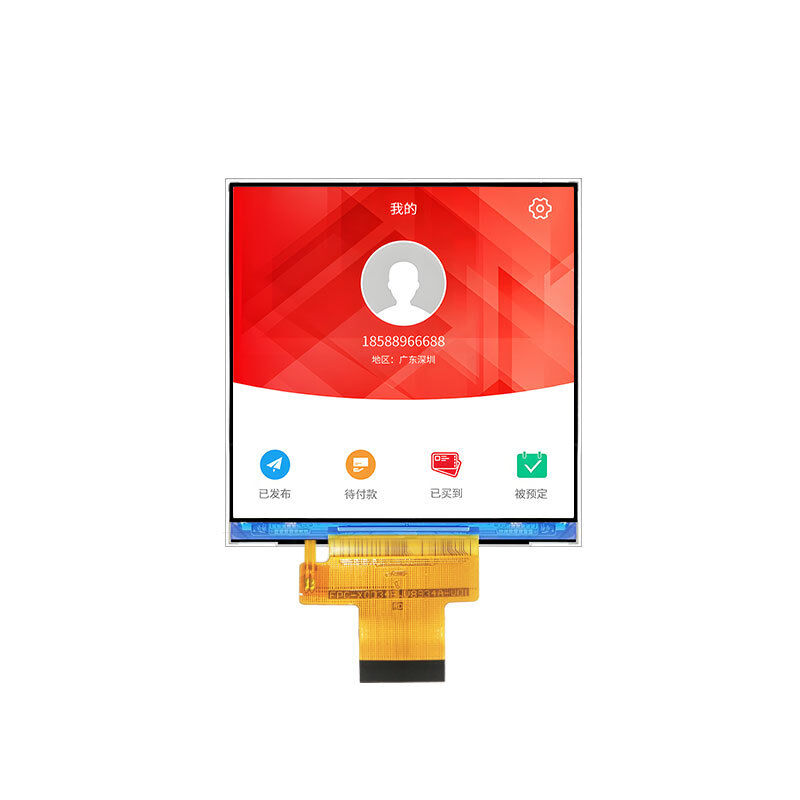

3.4 Inch Square LCD Display 480*480 Resolution Optional Touch Screen MIPI

The LCD module has a system voltage (VDD) typically at 2.8V (range 2.5V - 3.6V) and an interface operation voltage (VDDI) typically at 1.8V (range 1.65V - 3.3V), ensuring stable power for reliable operation. Regarding its electrical characteristics, the digital supply current (I_DVCC) and analog supply current (I_VCI) meet operational needs, and the module’s electrical design enables smooth integration into various device circuits.

The YVO034WV - C01 boasts robust environmental adaptability. It can operate within a temperature range of -20°C to 70°C and be stored within a range of -30°C to 80°C, making it suitable for various working scenarios. It successfully passes stringent reliability tests: 120 hours of high - temperature (80°C) storage, 120 hours of low - temperature (-30°C) storage, 120 hours of high - temperature (70°C) operation, 120 hours of low - temperature (-20°C) operation (with no condensation of dew), 96 hours of operation under 60°C/90% humidity (with no condensation dew), 10 thermal shock cycles of -20°C to 70°C (30min. / 5min. / 30min.), and ESD tests with a ±2kV voltage (330Ω, 150pF air discharge, 10 times). After these tests, when stored at room temperature for 4 hours, the sample shall be free from defects: air bubble in the LCD, seal leak, non - display, missing segments, glass crack, and a current IDD that is twice higher than the initial value.

The YVT034HD-C01 offers multiple customization options to meet diverse application needs:

FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.

Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.

Brightness: Adjustable from 200–1000 nits for indoor or outdoor use.

Touch Options: With or without capacitive touch, customized driver IC available.

Surface Treatment: AF (Anti-Fingerprint), AG (Anti-Glare), or tempered glass for durability.
