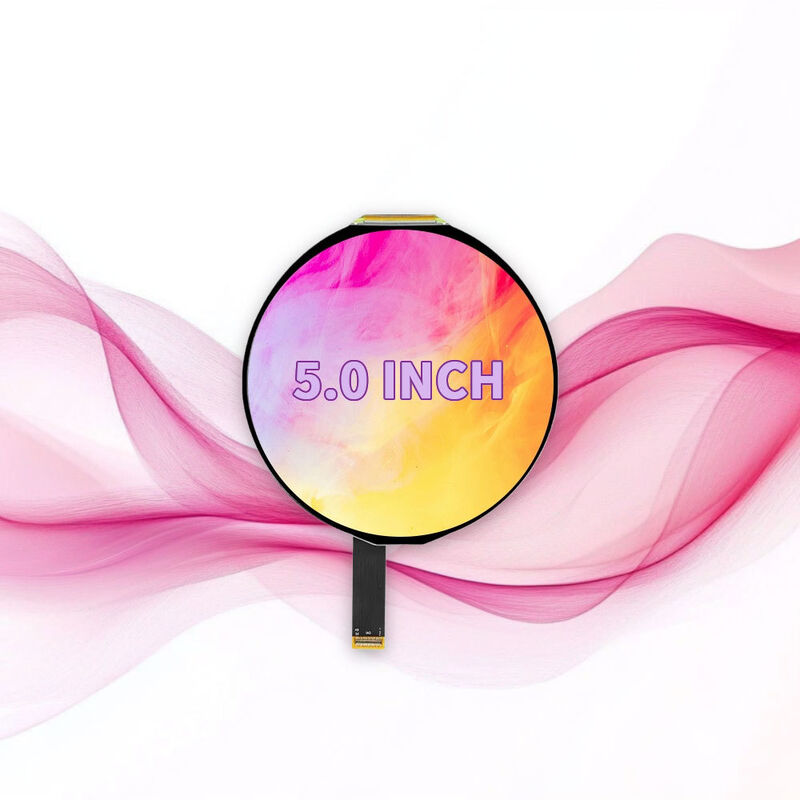

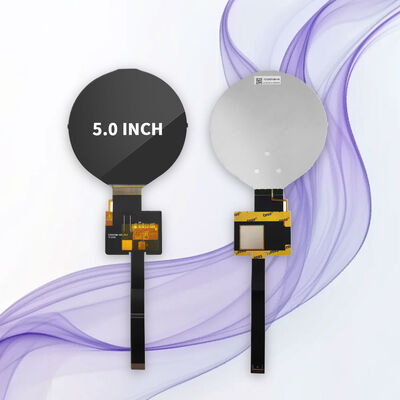

5 Inch Round LCD Display 1080*1080 Resolution Optional MIPI Touch Screen

Power Supply: The module supports dual power supplies — analog supply voltage (VCI) and digital supply voltage (IOVCC), both with a range of 1.65V ~ 3.3V (typical 1.8V), ensuring stable power input and reducing power consumption.

Backlight Performance: The white LED backlight has a typical forward current of 20mA and a typical forward voltage of 37.2V; the typical backlight power consumption is 744mW, and the service life reaches 20,000 hours (when brightness decays to 50% of the initial value), suitable for long-term continuous operation.

Optical Performance: It has excellent optical indicators — contrast ratio (CR) of 800 ~ 1300 (at 0° viewing angle), response time (T_ON + T_OFF) maximum 40ms (at 25℃), brightness uniformity (U) typical 82%, NTSC color gamut typical 70%, and luminance (L) typical 350 CD/m²; the viewing angles (θT/θB/θL/θR) are all typical 80° (at CR ≥ 10), ensuring no color distortion from any direction.

The YVO050FHD - C01 exhibits strong environmental adaptability. It has an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C, enabling it to be suitable for a wide variety of application scenarios. It successfully undergoes rigorous reliability tests: 96 hours of high - temperature (80°C) storage, 96 hours of low - temperature (-30°C) storage, 96 hours of high - temperature (70°C) operation, 96 hours of low - temperature (-20°C) operation, 96 hours of operation under 60°C / 90% humidity (with no condensation), 10 thermal shock cycles between -20°C and 70°C (each cycle including 30 minutes at -20°C, 5 minutes of transition, and 30 minutes at 70°C), and ESD tests with a voltage of ±4kV (using a 150pF capacitor and 330Ω resistor for air discharge, 10 times). After these tests, when the product is stored at room temperature for 4 hours, it should be free from defects like air bubbles in the LCD, seal leaks, non - display segments, missing segments, glass cracks, and a current IDD that is twice the initial value.

The  YVO050FHD - C01 offers multiple customization options to meet diverse application needs:

FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.

Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.

Brightness: Adjustable from 200–1000 nits for indoor or outdoor use.

Touch Options: With or without capacitive touch, customized driver IC available.

Surface Treatment: AF (Anti-Fingerprint), AG (Anti-Glare), or tempered glass for durability.
