13.3 Inch E-paper Display 960*680 Resolution 24pin Low Power Consumption E-Ink Screen

• 960×680 pixels display
• High contrast + High reflectance + Pure reflective mode
• Ultra wide viewing angle
• Ultra low power consumption + Ultra Low current deep sleep mode
• Bi-stable display
• Commercial temperature range
• Landscape, portrait modes
• Hard-coat antiglare display surface
• Serial peripheral interface available

The YE133A01 E-PAPER display module boasts remarkable features. It comes with a 13.3 - inch screen and a display resolution of 960(H)×680(V) pixels, delivering clear and fine visuals. With an ultra - wide viewing angle, consistent display effects can be enjoyed from any direction. It operates in pure reflective mode and has ultra - low power consumption, making it highly energy - efficient. Also, it supports landscape and portrait modes, offering flexible display options. The module has an outline dimension of 286.32(H)×212.16(V)×1.15(D) mm (without mask) and a weight of 72±0.2 g, facilitating easy integration into various devices. Moreover, it features a hard - coat antiglare display surface for enhanced visual comfort and is equipped with an internal temperature sensor to adapt to different environmental conditions, ensuring stable performance in a commercial temperature range.

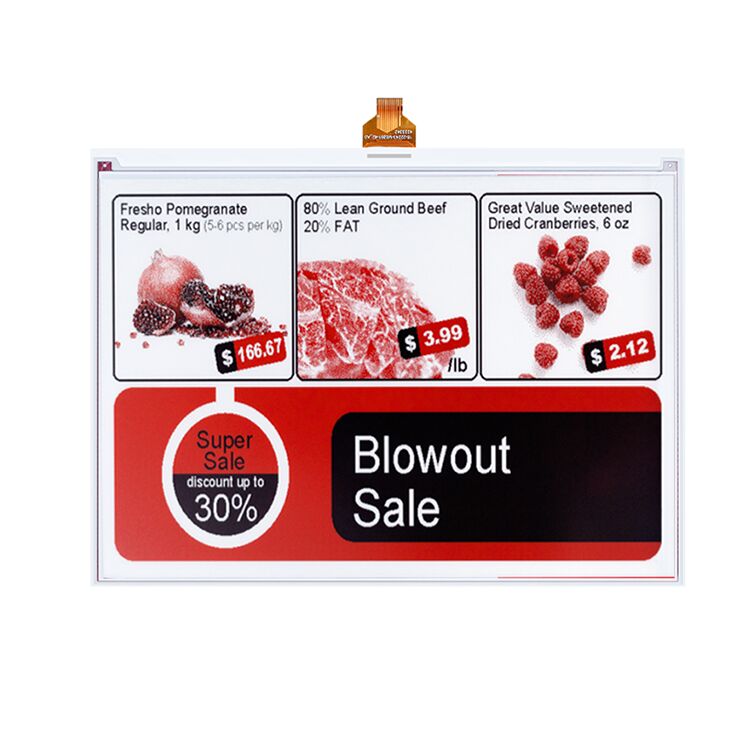

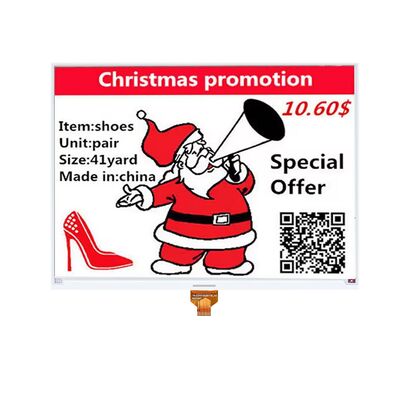

These E - PAPER display modules excel in showcasing promotional content. As seen in the images, they can vividly present Christmas sales campaigns for products like shoes, with clear pricing and product details. They're also perfect for highlighting grocery promotions, making items and discounts stand out. Their crisp display and versatile nature make them ideal for retail advertising scenarios, helping to attract customers' attention effectively.

E - PAPER display modules find extensive application across numerous scenarios. In retail stores, they are perfect for showcasing product promotions, like holiday sales on apparel, discounted electronics, or special offers on groceries. The clear display ensures customers can easily see prices, product details, and discount info. For logistics and warehousing, they serve as smart shelf labels, enabling real - time updates of product names, quantities, and storage locations, which streamlines inventory management. In smart homes, they can act as control panels or info displays, showing weather, schedules, or device statuses with low power consumption. Also, in educational settings, they work well as electronic nameplates in classrooms or digital notice boards in campuses, facilitating information dissemination in an eco - friendly way. With their excellent readability, low power usage, and versatile display capabilities, E - PAPER modules meet the diverse needs of various industries.

PIN Definition

The YE133A01 offers multiple customization options to meet diverse application needs:

• FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.
• Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.
• Display Colors: Various color combinations available for customization, including black-white-red-yellow, black-white, black-white-red, etc.
• Refresh Modes: Multiple refresh methods customizable, such as fast refresh, slow refresh, full refresh, partial refresh, and more.
