10.2 Inch E Paper Display 960*640 Resolution 24pin Low Power Consumption E Ink Screen
  • name
  • name
  • name
  • name

10.2 Inch E Paper Display 960*640 Resolution 24pin Low Power Consumption E Ink Screen

MOQ: 300
Price: 42.12-49.14/pc
Standard Packaging: 320pcs/box
Delivery Period: 14-30days
Payment Method: ,T/T,D/P,D/A,Western Union
Supply Capacity: 300k/month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
RoHS/CE/CB
Model Number
YE102A04
Document
YE102A04.pdf
Highlight:

10.2 Inch E Paper Display

,

E Paper Display 960*640

,

Low Power Consumption E Ink Screen

Product Description
10.2 Inch E-paper Display 960*640 Resolution 24pin Low Power Consumption E-Ink Screen



Product Features

◊960×680 pixels display
◊Ultra low power consumption
◊Pure reflective mode
◊Bi - stable display
◊Ultra Low current deep sleep mode
◊On chip display RAM
◊Serial peripheral interface available
◊On - chip oscillator
◊On - chip booster and regulator control for generating driving voltages

The YE102A04 E - PAPER display module has outstanding features. It is equipped with a 10.2 - inch screen and a display resolution of 640(H)×960(V) pixels (with a DPI of 113), presenting clear and delicate images. The pixel configuration is rectangular, and the pixel pitch is 0.2245×0.2245 mm, contributing to precise display. It has an active area of 215.52(H)×143.68(V) mm, providing a suitable display space. With an outline dimension of 224(H)×157(V)×1.15(D) mm (without masking film) and a weight of 60±0.2 g, it can be easily integrated into various devices. This module is designed to offer excellent display performance and convenient application
Type E-Paper Screen refreshing method Full Refresh
Resolution 960*640 Place Of Origin
Guangdong,China
Brand Name YZY Outline Dimensions
224(H)×157(V)×1.15(D) mm
Supplier Type All (IPS) Active Area
215.52(H)×143.68(V) mm
Interface SPI Driver IC SSD1677
MOQ 5PCS Operating Temp.
0~40°
Connector Type
24 pin
 Storage Temp.
-25~60°
Colors                                                     Black/White/Red

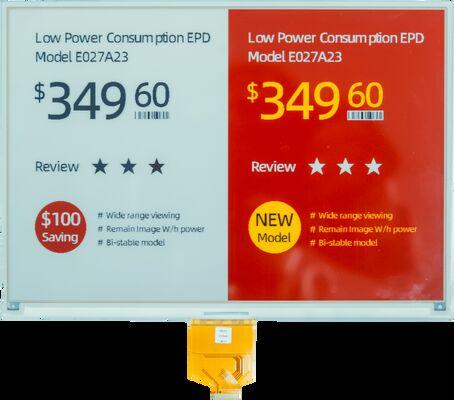

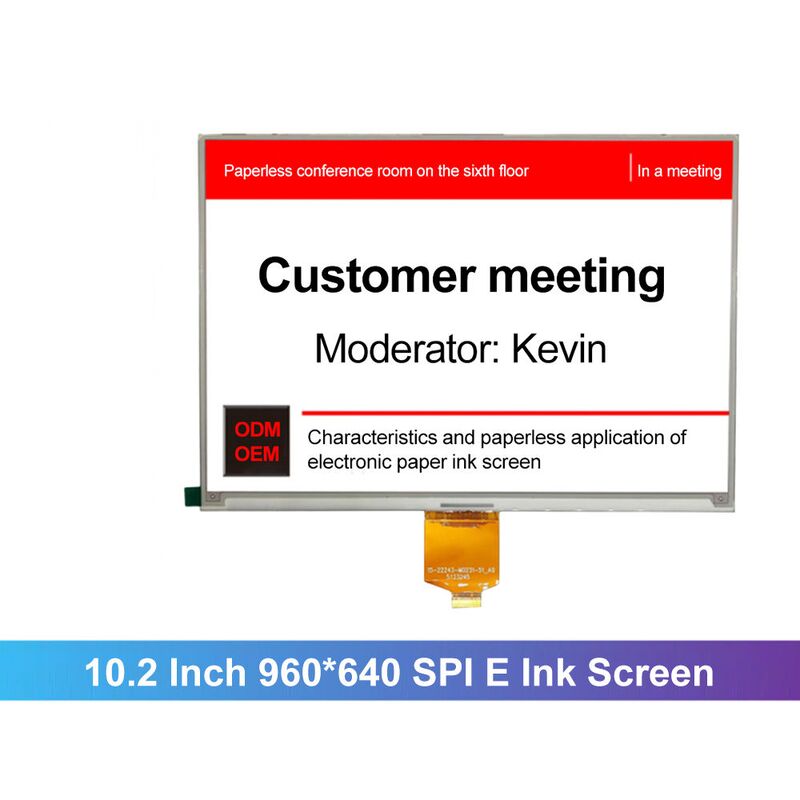

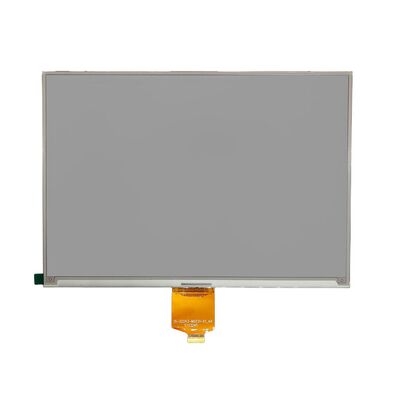

Product Picture

10.2 Inch E Paper Display 960*640 Resolution 24pin Low Power Consumption E Ink Screen 0
These E - PAPER display modules are exceptionally good at presenting promotional content. As shown in the images, they can vividly display sales campaigns for products, showing clear pricing and product details. They are also perfect for highlighting various promotions, making items and discounts stand out prominently. Their sharp display and adaptable nature make them ideal for retail advertising situations, helping to effectively draw customers' attention.
E - PAPER display modules have a wide range of applications in many scenarios. In retail stores, they are perfect for showcasing product promotions, such as special offers on electronic products (similar to the displayed model), discounted daily necessities, or holiday sales on accessories. The clear display ensures that customers can easily see prices, product details, and discount information. For logistics and warehousing, they can be used as smart shelf labels, allowing real - time updates of product names, quantities, and storage locations, which optimizes inventory management. In smart homes, they can function as control panels or information displays, showing weather, schedules, or device statuses while consuming very little power. Also, in educational environments, they work well as electronic nameplates in classrooms or digital notice boards on campuses, promoting information dissemination in an environmentally friendly manner. With their outstanding readability, low power consumption, and versatile display capabilities, E - PAPER modules meet the varied needs of different industries.



Core Advantages


10.2 Inch E Paper Display 960*640 Resolution 24pin Low Power Consumption E Ink Screen 1

 ◊ Paper-like Visual Experience: Comfortable Viewing, Clear Display in All Scenarios

It adopts pure reflective display technology and does not require a backlight module. Relying on ambient light for imaging, it delivers a visual effect similar to that of traditional paper, ensuring no eye fatigue even during long - term viewing. The screen is designed with a hard - coat anti - glare feature, which reduces glare under direct strong light. Even in sunny outdoor conditions, the text and images on the screen remain clear. Combined with the ultra - wide viewing angle characteristic, there is no color or brightness deviation when the screen is viewed from the front or side, providing a consistent viewing experience for multiple viewers. This module is suitable for scenarios such as outdoor advertising, retail shelves, conference dashboards, and e - readers.

  ◊ Ultra-low Power Consumption Design: Long-lasting Battery Life with One Charge

Based on bistable display technology, the module only consumes power when the screen is refreshed, and there is almost zero power consumption in the static display mode. The current in the deep sleep mode is ≤3μA, and the maximum full - screen refresh power consumption is 80mAs. When paired with a lithium battery, its battery life can range from several months to several years, depending on the refresh frequency. For instance, smart price tags that are refreshed once a day can have a battery life of more than 12 months, eliminating the need for frequent power supply and maintenance. It is applicable to scenarios like outdoor signs, logistics labels, and monitoring screens in remote areas.

  ◊ Stable and Durable: Adaptable to Multiple Environments, Worry-free Long-term Use

The hard - coat screen possesses anti - glare, scratch - resistant, and fingerprint - resistant properties, preventing damage caused by slight collisions and friction in daily use. It can operate within a temperature range of 0~40℃ and has a storage and transportation temperature range of -25~60℃, ensuring no black screen at low temperatures and no malfunction at high temperatures. This makes it suitable for outdoor environments, industrial workshops, hospitals, and other settings. Since it does not contain liquid crystals or organic light - emitting materials, there is no risk of "screen burn - in", and no afterimage appears during static display. It has passed 240 - hour high - and low - temperature tests and 50 temperature cycle tests, with a designed service life of 3 years. This meets the long - term use requirements of scenarios such as industrial panels, hospital bedside information cards, and elevator signs.

  ◊ Flexible Adaptation: Multiple Interfaces for Easy Connection, Meeting Scenario Customization Needs

It supports SPI and I2C interfaces, enabling connection to microcontrollers, PLCs, embedded systems, and other devices without the need for complex driver development, which reduces integration difficulty. It also supports horizontal and vertical screen switching to adapt to different installation scenarios, as well as partial and full refresh modes. Partial refresh for smart price tags helps reduce power consumption, while full refresh for office dashboards ensures the complete presentation of content, balancing efficiency and power consumption. This module is suitable for scenarios including smart wearables, retail price tags, industrial monitoring, and office dashboards.

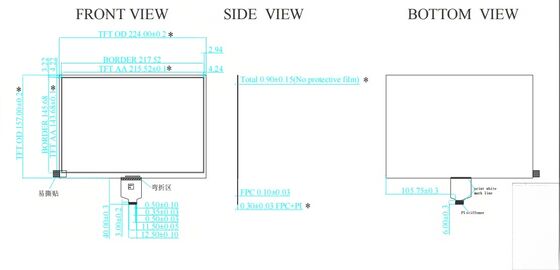

Technical Drawing


10.2 Inch E Paper Display 960*640 Resolution 24pin Low Power Consumption E Ink Screen 2

PIN Definition
PIN Symbol Description
1 NC No connection and do not connect with other NC Keep Open
2 GDR This pin is N-MOS gate control.
3 RESE Current sense input for control loop.
4 NC No connection and do not connect with other NC Keep Open
5 VSH2 Positive source voltage for Red
6 TSCL I2C clock for external temperature sensor Connect to GND if not used
7 TSDA I2C data for external temperature sensor Connect to GND if not used
8 BS Input interface setting Note 6-5
9 BUSY_N This pin indicates the driver status. Note 6-4
10 RST_N Global reset pin Note 6-3
11 DC Serial communication Command/Data input Note 6-2
12 CSB Serial communication chip select. Note 6-1
13 SCL Serial communication clock input.
14 SDA Serial communication data input.
15 VDDIO IO voltage supply
16 VCC Digital/Analog power.
17 VSS Digital ground
18 VDD 1.5V voltage input &output
19 VPP OTP program power (10V)
20 VSH1 Positive source voltage
21 VGH Positive gate voltage
22 VSL Negative source voltage.
23 VGL Negative gate voltage.
24 VCOM VCOM driving voltage



Customization Options


The  YE102A04 offers multiple customization options to meet diverse application needs:

FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.

Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.

Display Colors: Various color combinations available for customization, including black-white-red-yellow, black-white, black-white-red, etc.

Refresh Modes: Multiple refresh methods customizable, such as fast refresh, slow refresh, full refresh, partial refresh, and more.
