9.7 E Ink Display 960*672 Resolution 24pin Low Power Consumption E Ink Screen

Products

9.7 E Ink Display 960*672 Resolution 24pin Low Power Consumption E Ink Screen

MOQ:	500
Price:	32.24-36.53/pc
Standard Packaging:	320pcs/box
Delivery Period:	14-30days
Payment Method:	,T/T,D/P,D/A,Western Union
Supply Capacity:	300k/month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

Certification

RoHS/CE/CB

Model Number

YE097A01

Document

Highlight:

9.7 E Ink Display

E Ink Display 960*672

Low Power Consumption E Ink Screen

Product Description

9.7 Inch E-paper Display 960*672 Resolution 24pin Low Power Consumption E-Ink Screen(Model: YE097A01)

Product Features

◊960×672 pixels display (120 DPI)

◊High contrast & high reflectance

◊Pure reflective mode & ultra wide viewing angle

◊Bi-stable display & ultra low power consumption

◊Ultra Low current deep sleep mode(≤3μA)

◊On-chip display RAM & 10-byte OTP space for module identification

◊Serial peripheral interface (3-wire/4-wire SPI) available

◊On-chip oscillator & internal temperature sensor

◊Hard-coat antiglare display surface & commercial temperature range (0~35℃)

The YE097A01 E-PAPER display module is an Active Matrix Electrophoretic Display (AMEPD) with integrated interface and reference system design. It features a 9.7-inch active area with 960×672 pixels, supporting 1-bit white/black and 1-bit red full display capabilities. The module is equipped with an integrated circuit that includes gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and border circuits, ensuring stable and reliable performance. With a pixel pitch of 0.21×0.21 mm and rectangular pixel configuration, it presents clear and delicate images. The outline dimension is 210.80(H)×154.90(V)×1.1(D) mm and weight is 58±0.2 g, enabling easy integration into various devices.

Type	E-Paper	Screen refreshing method	Full Refresh
Resolution	960*672 (120 DPI)	Place Of Origin	Shenzhen, China
Brand Name	YZY	Outline Dimensions	210.80(H)×154.90(V)×1.1(D) mm
Supplier Type	All (IPS)	Active Area	201.60(H)×141.12(V) mm
Interface	3-wire/4-wire SPI	Driver IC	SSD1677
MOQ	5PCS	Operating Temp.	0~40℃
Connector Type	24 pin (0.5mm ZIF Socket)	Storage Temp.	-20~60°C
Colors	Black/White/Red

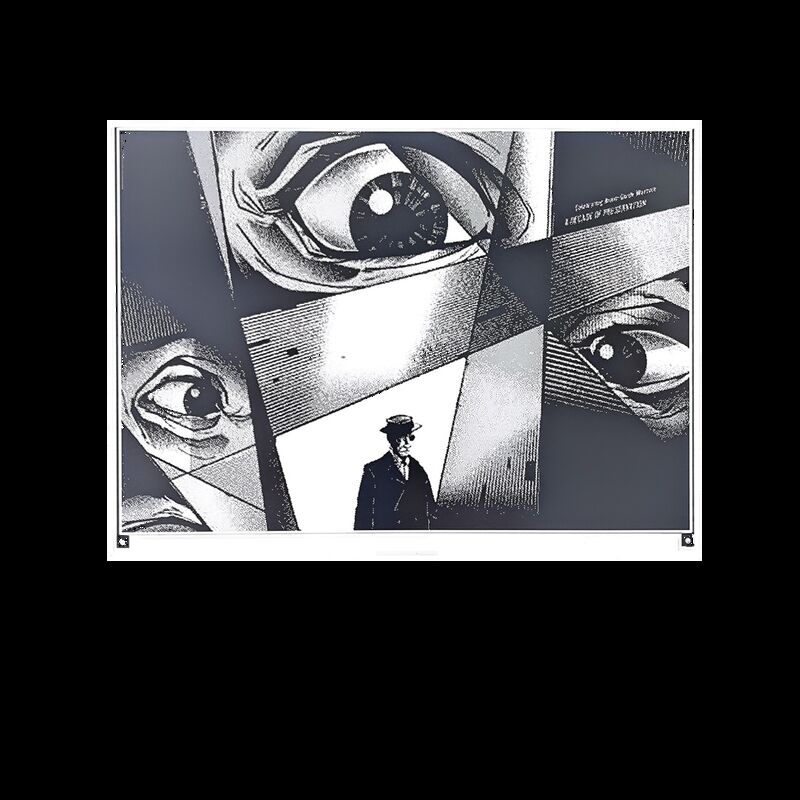

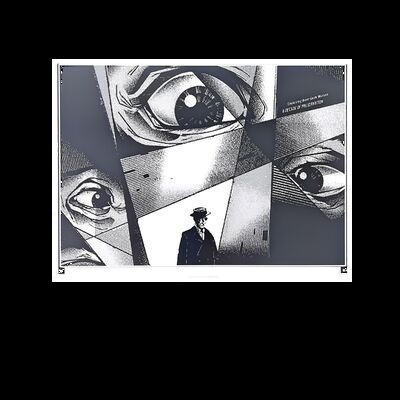

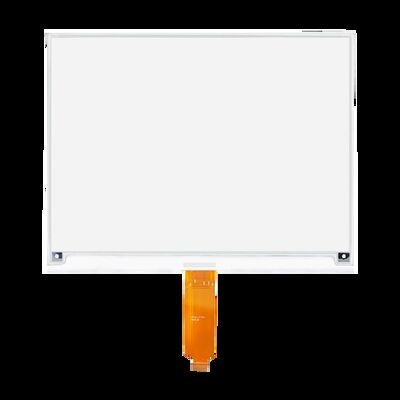

Product Picture

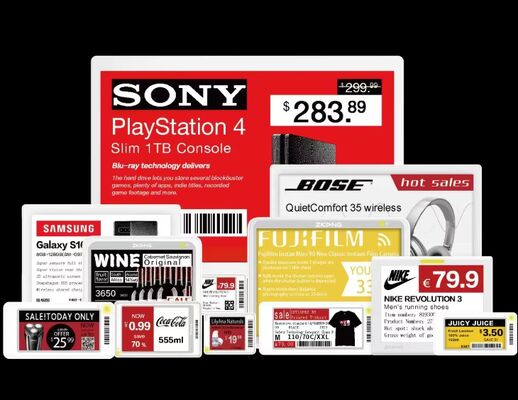

The YE097A01 E-PAPER display modules have a wide range of applications across multiple industries. In retail stores, they serve as electronic shelf labels, enabling real-time updates of product prices, stock levels, and promotional information—their low power consumption eliminates frequent battery replacements. In logistics and warehousing, they function as smart cargo labels, displaying waybills, destination details, and inventory statuses, withstanding harsh transportation conditions (-25~60℃ for up to 10 days). In smart homes and offices, they act as digital notice boards or control panels, showing schedules, weather forecasts, or device statuses, and their paper-like visual experience reduces eye strain during long-term viewing. Additionally, in educational institutions, they work as electronic nameplates or classroom information displays, supporting landscape and portrait modes to adapt to different installation environments. With their reliable performance, low power consumption, and versatile design, these modules meet the diverse needs of modern smart scenarios.

Core Advantages

◊ Paper-like Visual Experience: High Contrast, Anti-glare, Wide Viewing Angle

Adopting pure reflective display technology without a backlight module, the YE097A01 delivers a visual effect identical to traditional paper—its white state reflectance reaches 35% (typ.), black state L* value is 13~14, and contrast ratio is 15 (typ.), ensuring clear and sharp content. The hard-coat antiglare surface reduces glare under direct sunlight, maintaining readability even in outdoor environments. With an ultra-wide viewing angle, there is no color or brightness deviation when viewed from any direction, making it suitable for multi-person viewing scenarios like retail shelves or office dashboards. Additionally, it supports both landscape and portrait modes, adapting to different installation orientations.

◊ Ultra-low Power Consumption: Long Battery Life, Energy-saving Design

Based on bi-stable display technology, the module only consumes power during screen refresh—panel power consumption during update is 250 mAs (max.) at 25℃, and deep sleep mode current is ≤3μA. When paired with a standard lithium battery, its service life can extend from several months to years depending on refresh frequency: for example, electronic shelf labels refreshed once daily can operate for over 12 months without battery replacement. The integrated on-chip booster and regulator control generates driving voltages (VCOM, Gate, Source) internally, reducing external circuit complexity and further optimizing power efficiency. This makes it ideal for battery-powered devices in remote or hard-to-maintain scenarios.

◊ Stable & Durable: Wide Temperature Adaptability, High Reliability

The YE097A01 module features excellent environmental adaptability: it operates stably at 0~35℃ (45~70%RH) and can withstand transportation temperatures of -25~60℃ for up to 10 days. It has passed rigorous reliability tests, including 240-hour high-temperature (40℃) and low-temperature (0℃) operation, 50 temperature cycles (-25℃~60℃), and 168-hour high-temperature high-humidity (40℃, 90%RH) operation—ensuring no functional failures or appearance defects. The hard-coat screen is scratch-resistant and fingerprint-resistant, preventing damage from daily friction. With no liquid crystals or organic light-emitting materials, there is no "screen burn-in" risk, and the designed service life is 5 years (under normal use: 0~35℃, 45~70%RH, updated once daily), meeting long-term use requirements in industrial, retail, and logistics fields.

◊ Flexible Interface & Integration: Easy to Connect, Rich Functions

The module supports 3-wire/4-wire SPI interfaces, selectable via the BS1 pin—compatible with most microcontrollers, PLCs, and embedded systems, requiring no complex driver development. It includes an internal temperature sensor (and supports external temperature sensors via I2C) for real-time temperature monitoring and waveform adjustment, ensuring stable performance under temperature fluctuations. The on-chip display RAM and 10-byte OTP space simplify data storage and module identification. Additionally, it offers rich commands for display control, such as RAM address setting, VCOM adjustment, and deep sleep mode, enabling customization for different application scenarios. The 24-pin 0.5mm ZIF Socket connector ensures secure and easy installation, reducing integration difficulty for developers.

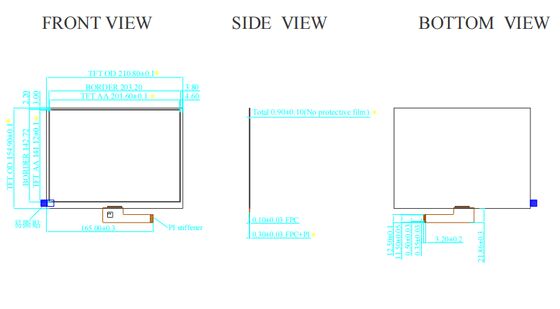

Technical Drawing

9.7 E Ink Display 960*672 Resolution 24pin Low Power Consumption E Ink Screen 2

PIN Definition

PIN	Symbol	Description	Remark
1	NC	No connection and do not connect with other NC pins	Keep Open
2	GDR	N-Channel MOSFET Gate Drive Control
3	RESE	Current Sense Input for the Control Loop
4	NC	No connection and do not connect with other NC pins	Keep Open
5	VSH2	Positive Source driving voltage
6	TSCL	I2C Interface to digital temperature sensor Clock pin	Note 6-6
7	TSDA	I2C Interface to digital temperature sensor Data pin	Note 6-6
8	BS1	Bus selection pin	Note 6-5
9	BUSY	Busy state output pin	Note 6-4
10	RES#	Reset	Note 6-3
11	D/C#	Data/Command control pin	Note 6-2
12	CS#	Chip Select input pin	Note 6-1
13	SCL	Serial clock pin (SPI)
14	SDA	Serial data pin (SPI)
15	VDDIO	Power for interface logic pins
16	VCI	Power Supply pin for the chip
17	VSS	Ground
18	VDD	Core logic power pin
19	VPP	Power Supply for OTP Programming
20	VSH1	Positive Source driving voltage
21	VGH	Power Supply pin for Positive Gate driving voltage and VSH
22	VSL	Negative Source driving voltage
23	VGL	Power Supply pin for Negative Gate driving voltage, VCOM and VSL
24	VCOM	VCOM driving voltage

Customization Options

The YE097A01 offers multiple customization options to meet diverse application needs:

FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.

Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.

Display Colors: Various color combinations available for customization, including black-white-red-yellow, black-white, black-white-red, etc.

Refresh Modes: Multiple refresh methods customizable, such as fast refresh, slow refresh, full refresh, partial refresh, and more.
