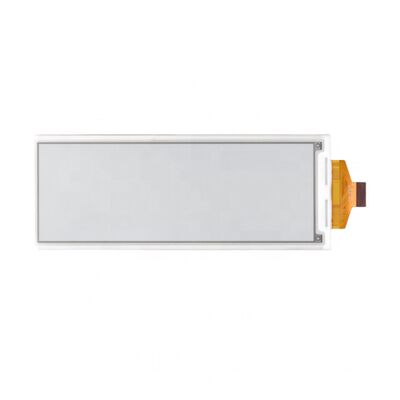

5.79 Inch E Paper Display 792*272 Resolution 24pin Electronic Paper Display Monitor

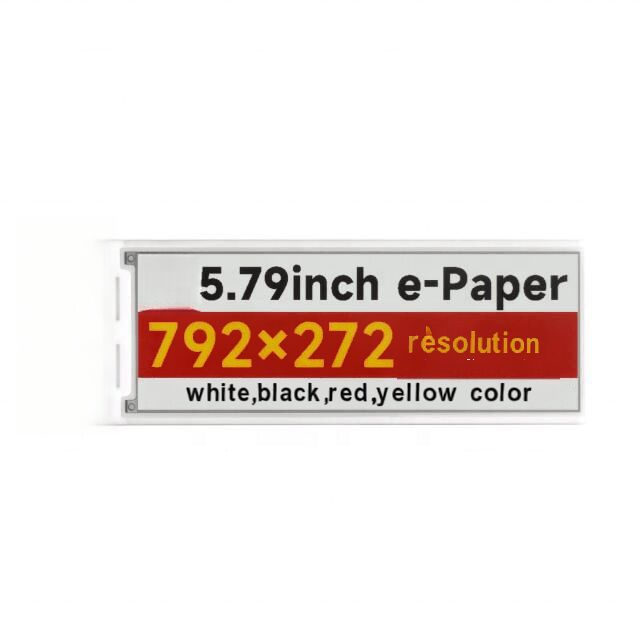

The YE0579A16 E-PAPER display module stands out with its 4-color (Black/White/Red/Yellow) display capability and high-resolution performance. As shown in the images, it can vividly present color-coded information—such as red for promotions, yellow for warnings, and black/white for basic content—making it ideal for scenarios requiring clear information classification. Its 144 DPI resolution and square pixels (0.1755×0.1755mm) ensure sharp text and graphics, while the hard-coat antiglare surface eliminates glare under direct light, maintaining readability in retail stores, logistics warehouses, or outdoor kiosks. Whether used for electronic shelf labels, smart cargo tags, or portable information displays, its compact size and low power consumption make it a versatile choice for space-constrained and battery-powered applications.

The YE0579A16 E-PAPER display module has a wide range of applications across multiple industries. In retail, it serves as electronic shelf labels, using 4-color display to highlight promotional products (red), new arrivals (yellow), and regular items (black/white)—enabling customers to quickly identify key information. Its low power consumption (≤3μA deep sleep) eliminates frequent battery replacements, reducing retail maintenance costs. In logistics and warehousing, it functions as smart cargo labels, displaying waybills, destination details, and inventory statuses with color-coded alerts (e.g., yellow for urgent shipments), while withstanding transportation temperatures of -25~50℃ for up to 10 days. In smart wearables and portable devices, its ultra-thin (0.90mm) and lightweight design fits compact form factors, serving as a digital nameplate or health data display. Additionally, in industrial control, it works as equipment status monitors, using color coding to indicate normal (green, simulated via white), warning (yellow), and fault (red) states—supporting landscape/portrait modes to adapt to different installation environments. With ROHS2.0+HF+REACH compliance and rigorous reliability testing, it meets environmental and long-term use requirements in diverse scenarios.

The YE0579A16 supports Black/White/Red/Yellow 4-color full-display, with precise color performance: red state L*=25~28 (a*=38~40), yellow state L*=55~62 (b*=63~68), white state L*=63~65, and black state L*=9~14. This enables color-coded information classification, ideal for scenarios like retail promotions and logistics alerts. Its 792×272 resolution (144 DPI) and square pixels (0.1755×0.1755mm) ensure sharp text and graphics—even small fonts (8pt) remain legible. The pure reflective mode and high white reflectance (35% typ.) deliver a paper-like visual experience, while the hard-coat antiglare surface reduces glare under direct sunlight, maintaining readability in outdoor or bright indoor environments. With an ultra-wide viewing angle, there is no color/brightness deviation from any direction, supporting multi-person viewing.

Based on bi-stable display technology, the module only consumes power during screen refresh—panel power consumption is 360 mAs (max. at 25℃), while deep sleep mode current is ≤3μA. When paired with a standard lithium battery, electronic shelf labels refreshed once daily can operate for over 12 months without replacement. The integrated on-chip booster generates VCOM, Gate (VGH/VGL), and Source (VSH1/VSH2/VSL) driving voltages internally, reducing external circuit complexity and optimizing power efficiency. It also supports low-voltage detection (LVD) to monitor battery status, ensuring reliable operation even when voltage drops to 2.4V (min. VDD), and high-voltage ready detection to prevent abnormal operation due to insufficient driving voltages.

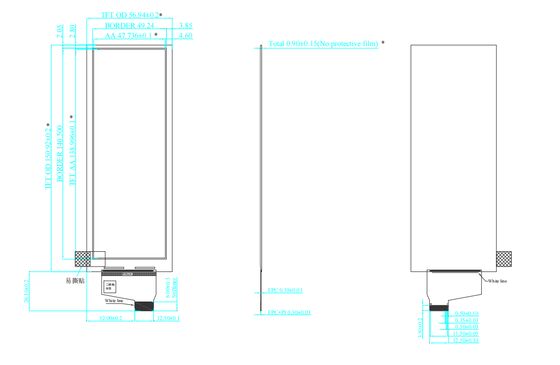

With an ultra-thin outline dimension of 56.94×150.92×0.90mm and lightweight design (weight TBD), the YE0579A16 fits compact devices like smart wearables and small electronic shelf labels. It features excellent environmental adaptability: operating at 0~40℃ (45~70%RH) and withstanding transportation/storage temperatures of -25~50℃ (max 10 days above 40℃). It has passed rigorous reliability tests, including 240-hour high-temperature (40℃) and low-temperature (0℃) operation, 50 temperature cycles (-25℃~60℃), and 168-hour high-temperature high-humidity (40℃, 90%RH) operation—ensuring no functional failures or appearance defects. The hard-coat screen is scratch-resistant and fingerprint-resistant, while ROHS2.0+HF+REACH compliance meets global environmental standards, making it suitable for international markets.

The module supports 3-wire/4-wire SPI interfaces (selectable via the BS1 pin) and I2C for internal/external temperature sensors, compatible with most microcontrollers, PLCs, and embedded systems—no complex driver development required. The dual IST7158CA1 driver ICs ensure stable signal processing and display control, while on-chip OTP stores waveform data, reducing external memory requirements. It includes an internal temperature sensor (with I2C master interface for external sensors) for real-time temperature monitoring and waveform adjustment, ensuring stable performance under temperature fluctuations. The 24-pin connector ensures secure and easy installation, while support for landscape/portrait modes adapts to different device layouts. Additionally, it offers customizations like FPC length, cover glass processing, and waveform parameters to meet specific application needs.
