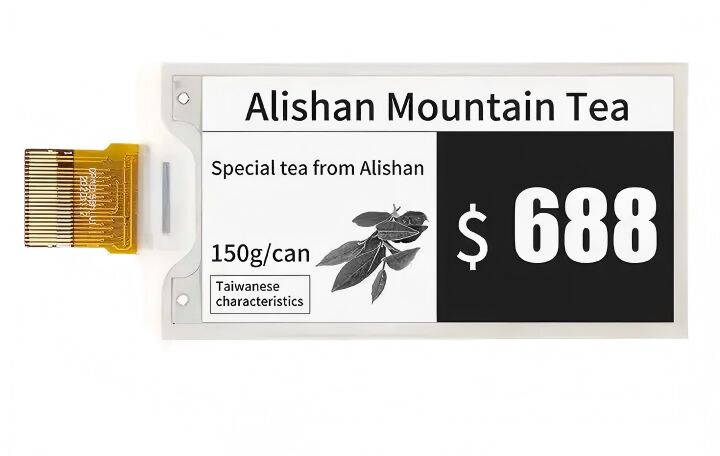

| MOQ: | 600 |
| Price: | 3.37-4.77/pc |
| Standard Packaging: | 50pcs/box |
| Delivery Period: | 14-30days |
| Payment Method: | ,T/T,D/P,D/A,Western Union |
| Supply Capacity: | 300k/month |
| Type | E-Paper | Screen Refresh Method | Full Refresh |
|---|---|---|---|
| Resolution | 176×264 (117 DPI) | Place of Origin | Shenzhen, China |

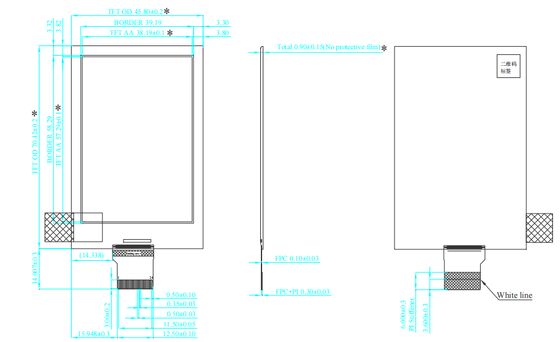

| Brand Name | Yingzhanying Technology | Outline Dimensions | 45.8(H)×70.42(V)×0.90(D) mm |
| Supplier Type | All (IPS) | Active Area | 38.19(H)×57.29(V) mm |
| Interface | 3-wire/4-wire SPI (BS pin selectable), I2C (temp sensor) | Driver IC | SSD1680 |
| MOQ | 50 PCS | Operating Temperature | 0~50℃ |
| Connector Type | 26-pin 0.5mm ZIF Socket | Storage Temperature | -25~60℃ |
| Colors | Black/White | ||
| Power Consumption | Update: ≤70mAs (25℃); Deep Sleep: ≤3μA | ||
| PIN | Symbol | Description | Remark |
| 1 | NC | No connection | |
| 2 | NC | No connection and do not connect with other NC pins | Keep Open |
| 3 | GDR | N-MOS gate control | |
| 4 | RESE | Current sense input for control loop | |
| 5 | NC | No connection and do not connect with other NC pins | Keep Open |
| 6 | VSH2 | Positive source voltage | |
| 7 | GND | Ground | |
| 8 | GND | Ground | |
| 9 | BS | Bus selection pin | Low=4-wire SPI, High=3-wire SPI |
| 10 | BUSY_N | Busy state output pin | High=IC working, no command allowed |
| 11 | RST_N | Global reset pin | Active low |
| 12 | DC | Command/Data control pin | High=Data, Low=Command |
| 13 | CSB | Chip Select input pin | Low=IC enabled for MCU communication |
| 14 | SCL | Serial communication clock input | |
| 15 | SDA | Serial communication data input | |
| 16 | VDDIO | IO voltage supply | |
| 17 | VCC | Digital/Analog power | 2.4~3.6V |
| 18 | VSS | Digital ground | |
| 19 | VDD | 1.5V voltage input & output | |
| 20 | VPP | OTP program power | 10V |
| 21 | VSH1 | Positive source voltage | |
| 22 | VGH | Positive gate voltage | |
| 23 | VSL | Negative source voltage | |
| 24 | VGL | Negative gate voltage | |
| 25 | VCOM | VCOM driving voltage | OTP programmed in factory |
| 26 | NC | No connection |
Customization Options
The YE027A71 offers multiple customization options to meet diverse application needs:
FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.
Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.
Display Optimization: Custom waveform parameters for specific temperature ranges (0~50℃) to enhance contrast and stability.
OTP Programming: 10-byte user ID storage for module identification, customized VCOM voltage for optimized display effect.
