2.13 Inch E Ink Display 122×250 Resolution 24pin 2 Color Black White E Ink Screen

Products

2.13 Inch E Ink Display 122×250 Resolution 24pin 2 Color Black White E Ink Screen

MOQ:	600
Price:	2.21-4.71/pc
Standard Packaging:	50 pcs/box
Delivery Period:	14-30days
Payment Method:	,T/T,D/P,D/A,Western Union
Supply Capacity:	300k/month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

Certification

RoHS/CE/CB

Model Number

YE0213A367

Document

Highlight:

2.13 Inch E Ink Display

E Ink Display 122×250

Black White E Ink Screen

Product Description

2.13 Inch E-paper Display 122×250 Resolution 24pin 2-Color (Black/White) E-Ink Screen(Model: YE0213A367)

Product Features

◊122×250 pixels display (130 DPI, pixel pitch 0.194×0.194mm)

◊Black/White (B/W) 2-color full display capabilities

◊High contrast & high reflectance (white L*≥66, black L*≤30)

◊Pure reflective mode & ultra wide viewing angle

◊Ultra-low power consumption (≤3μA deep sleep, 70mAs typ update power)

◊Bi-stable display & commercial temperature range (0~50℃)

◊Hard-coat antiglare surface & on-chip display RAM

◊3-wire/4-wire SPI + I2C temperature sensor interface (internal/external)

◊On-chip booster/regulator & ROHS2.0+HF+REACH compliant

The YE0213A367 is an Active Matrix Electrophoretic Display (AMEPD) optimized for small-size monochrome display scenarios. It features a 2.13-inch active area (23.7×48.55mm) with 122×250 pixels (0.194×0.194mm pitch, 130 DPI), supporting Black/White 2-color display—ideal for electronic shelf labels and compact information terminals. The module integrates a SSD1682 driver IC, including gate buffer, source buffer, timing control, oscillator, DC-DC converter, SRAM, and LUT, ensuring stable performance. With an ultra-thin outline (29.2×59.2×0.9mm without masking film) and lightweight design (3±0.5g), it fits seamlessly into devices like electronic shelf labels, portable terminals, and smart wearables. The hard-coat antiglare surface and pure reflective mode eliminate glare under strong light, while bi-stable technology ensures ultra-low power consumption—only drawing current during screen updates.

Type	E-Paper	Screen Refresh Method	Full Refresh
Resolution	122×250 (130 DPI)	Place of Origin	Shenzhen, China
Brand Name	Yingzhanying Technology	Outline Dimensions	29.2(H)×59.2(V)×0.9(D) mm
Supplier Type	All (IPS)	Active Area	23.7(H)×48.55(V) mm
Interface	3-wire/4-wire SPI (BS pin selectable), I2C (temp sensor)	Driver IC	SSD1682
MOQ	5PCS	Operating Temperature	0~50℃
Connector Type	24-pin 0.5mm ZIF Socket	Storage Temperature	-25~60℃
Colors	Black/White
Power Consumption	Update: Typ 70mAs (25℃); Deep Sleep: ≤3μA

Product Picture

The YE029A241 excels in small-size monochrome display scenarios with its 130 DPI display and 2-color capability. It clearly presents text, barcodes, and simple graphics—black for key information and white for background—making it perfect for electronic shelf labels, smart wearables, and portable terminals. Its pixel pitch (0.194×0.194mm) ensures sharp text, even small fonts remain legible. The hard-coat antiglare surface eliminates glare under direct sunlight, maintaining readability in retail stores or outdoor kiosks. With an ultra-thin (0.9mm) and lightweight (3±0.5g) design, it fits into space-constrained devices like smart labels, while ultra-low power consumption (≤3μA deep sleep) enables over 12 months of battery life for daily-updated applications.

The YE0213A367 is mainly designed for Electronic Shelf Label (ESL) systems, with diverse industry applications. In retail, it serves as compact electronic shelf labels for groceries, electronics, and more, using 2-color display to show product names, prices, and stock status—enhancing customer information access and reducing manual update costs. In logistics, it functions as mini cargo tags, displaying waybills and statuses, withstanding -25~60℃ transportation for 10 days. In smart wearables, its compact size fits into fitness trackers or smart badges, showing steps, heart rate, or alert notifications. With ROHS2.0+HF+REACH compliance and rigorous reliability testing (high/low temperature, humidity, vibration, ESD), it meets global environmental and reliability demands.

Core Advantages

◊ 2-Color High-Contrast Display: Clear Presentation, Energy Saving

The YE0213A367 features 122×250 resolution (130 DPI) with 0.194×0.194mm pixels, delivering sharp text, barcodes, and 2-color graphics. Its color performance is excellent: white state L*≥66 and black state L*≤30. The high contrast ratio (white reflectance divided by dark reflectance) ensures clear visibility in low light. The pure reflective mode saves power by eliminating backlighting, while the hard-coat antiglare surface reduces glare under direct sunlight. With an ultra-wide viewing angle, there’s no color deviation from any direction, supporting multi-person viewing for shared devices.

◊ Ultra-Low Power & Long Lifespan: Cost-Effective Operation

Powered by bi-stable technology, the module only consumes power during updates (typ 70mAs at 25℃) and draws ≤3μA in deep sleep. A standard lithium battery can power daily-updated devices for over 12 months, reducing replacement frequency. It has a 5-year design life (25℃/60%RH, daily updates) and passed rigorous reliability tests: 240-hour high/low-temperature operation (40℃/0℃), 168-hour high-humidity operation (40℃, 90%RH), ESD testing (±250V, 0Ω, 200pF), and UV exposure resistance (765 W/㎡ for 168hrs).

◊ Compact Design & Easy Integration: Wide Application Adaptability

With an outline of 29.2×59.2×0.9mm and weight of 3±0.5g, the YE0213A367 fits into small-size devices like electronic shelf labels and portable terminals. The flexible FPC simplifies installation in non-flat layouts. It supports 3-wire/4-wire SPI (selectable via BS pin) and I2C for temperature sensors, compatible with most MCUs and embedded systems—no complex drivers needed. Pins 6 and 7 on FPC are grounded, simplifying circuit design.

◊ Environmental Compliance & Reliable Quality: Global Market Adaptation

The module complies with ROHS2.0+HF+REACH standards, meeting global environmental requirements. It features a hard-coat antiglare surface that resists scratches and fingerprints, protecting the display from daily wear. The 12+1 months warranty (1 month delivery time included) provides peace of mind for bulk purchases. Strict shipment inspection ensures defect-free delivery: spot defects 0.25~0.4mm (N≤4) in active area, no display malfunctions or errors, and scratch defects ≤5mm (W≤0.3mm, N≤2).

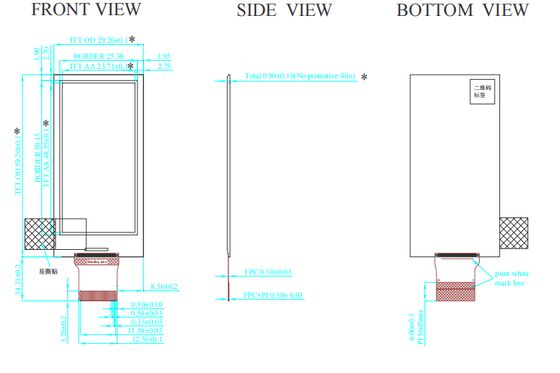

Technical Drawing

PIN Definition

PIN	Symbol	Description	Remark
1	NC	No connection and do not connect with other NC pins	Keep Open
2	GDR	N-MOS gate control
3	RESE	Current sense input for control loop
4	NC	No connection and do not connect with other NC pins	Keep Open
5	VSH2	Positive source voltage for Red
6	GND	Ground pin	Pre-connected to ground
7	GND	Ground pin	Pre-connected to ground
8	BS	Bus selection pin	Low=4-wire SPI, High=3-wire SPI (9 bits)
9	BUSY_N	Busy state output pin	High=IC working, no command allowed
10	RST_N	Global reset pin	Active low
11	DC	Command/Data control pin	High=Data, Low=Command
12	CSB	Chip Select input pin	Low=IC enabled for MCU communication
13	SCL	Serial communication clock input
14	SDA	Serial communication data input
15	VDDIO	IO voltage supply
16	VCC	Digital/Analog power	2.4~3.6V
17	VSS	Digital ground
18	VDD	1.5V voltage input & output
19	VPP	OTP program power	10V
20	VSH1	Positive source voltage
21	VGH	Positive gate voltage
22	VSL	Negative source voltage
23	VGL	Negative gate voltage
24	VCOM	VCOM driving voltage	OTP programmed in factory

Customization Options

The YE0213A367 offers multiple customization options to meet diverse application needs:

FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.

Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.

Display Colors: Monochrome color options available for customization, including black-white, black-gray, etc.

Refresh Modes: Multiple refresh methods customizable, such as fast refresh, slow refresh, full refresh, partial refresh, and more.
