3.5 Inch E Paper Display 184×384 Resolution 24pin Black / White 2 Coloured E Ink Display
Products

HDMI LCD Display

TFT LCD Module

Rectangular LCD Display

Round LCD Display

Square LCD Display

Bar Type LCD Display

Industrial Monitor

Portable Monitor

HDMI Driver Board

E Paper Display

TFT LCD Touch Screen

Digital Photo Frame

Commercial Display

Laptop LCD Screen

OLED Display Module

ESP32 Display Module
Contact Us
Contact Now
3.5 Inch E Paper Display 184×384 Resolution 24pin Black / White 2 Coloured E Ink Display
  • name
  • name

3.5 Inch E Paper Display 184×384 Resolution 24pin Black / White 2 Coloured E Ink Display

MOQ: 600
Price: 5.14-7.93/pc
Standard Packaging: 35 pcs/box
Delivery Period: 14-30days
Payment Method: ,T/T,D/P,D/A,Western Union
Supply Capacity: 300k/month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
RoHS/CE/CB
Model Number
YE035A32
Document
YE035A32.pdf
Highlight:

3.5 Inch E Paper Display

,

E Paper Display 184×384

,

2 Coloured E Ink Display

Product Description
3.5 Inch E-paper Display 184×384 Resolution 24pin  Black/White 2-Color E-Ink Screen
(Model: YE035A32)



Product Features

◊184×384 pixels display (122 DPI, pixel pitch 0.2075×0.2075mm)
◊Black/White (B/W) 2-color full display capabilities
◊High contrast & high reflectance (white L*=67, black L*=18)
◊Pure reflective mode & ultra wide viewing angle
◊Ultra-low power consumption (≤3μA deep sleep, 26mAs max update power)
◊Broad operating temperature range (-15~65℃, normal 0~50℃)
◊Hard-coat antiglare surface & on-chip display RAM
◊3-wire/4-wire SPI + I2C temperature sensor interface (internal/external)
◊On-chip booster/regulator & ROHS2.0+HF+REACH compliant

The YE035A32 is an Active Matrix Electrophoretic Display (AMEPD) optimized for medium-to-large size high-info scenarios. It features a 3.5-inch active area (38.18×79.68mm) with 184×384 pixels (0.2075×0.2075mm pitch, 122 DPI), supporting Black/White 2-color display—ideal for clear presentation of detailed information in electronic shelf labels. The module integrates a SSD1685 driver IC, including gate buffer, source buffer, timing control, oscillator, DC-DC converter, SRAM, and LUT, ensuring stable performance. With an ultra-thin outline (45.03×91.75×0.9mm without masking film) and lightweight design (TBD), it fits seamlessly into devices like large electronic shelf labels, logistics tags, and industrial control terminals. The hard-coat antiglare surface and pure reflective mode eliminate glare under strong light, while bi-stable technology ensures ultra-low power consumption—only drawing current during screen updates.
Type E-Paper Screen Refresh Method Full Refresh
Resolution 184×384 (122 DPI) Place of Origin Shenzhen, China
Brand Name Yingzhanying Technology Outline Dimensions 45.03(H)×91.75(V)×0.9(D) mm
Supplier Type All (IPS) Active Area 38.18(H)×79.68(V) mm
Interface 3-wire/4-wire SPI (BS1 pin selectable), I2C (temp sensor) Driver IC SSD1685
MOQ 5PCS Operating Temperature -15~65℃ (normal 0~50℃)
Connector Type 24-pin 0.5mm ZIF Socket Storage Temperature 0~50℃ (max 5 years)
Colors                                                     Black/White
Power Consumption                                                     Update: ≤26mAs (25℃); Deep Sleep: ≤3μA

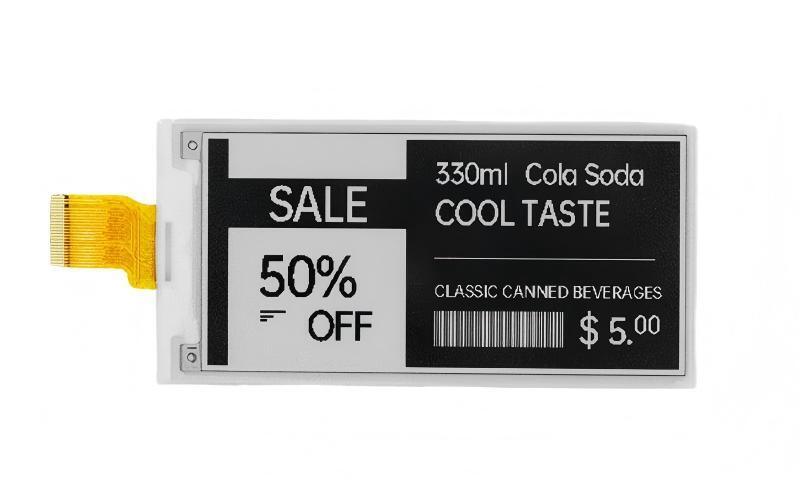

Product Picture3.5 Inch E Paper Display 184×384 Resolution 24pin Black / White 2 Coloured E Ink Display 0
The YE035A32 excels in medium-to-large size high-info scenarios with its 122 DPI display and 2-color high contrast. It clearly presents detailed black-and-white information—ideal for displaying product descriptions, multi-line prices, and barcodes in large electronic shelf labels, logistics tags, and industrial terminals. Its square pixel pitch (0.2075×0.2075mm) ensures sharp text and graphics, even small fonts remain legible. The hard-coat antiglare surface eliminates glare under direct sunlight, maintaining readability in retail stores or outdoor kiosks. With an ultra-thin (0.9mm) design, it fits into space-constrained devices, while ultra-low power consumption (≤3μA deep sleep) enables over 12 months of battery life for daily-updated applications.
The YE035A32 is mainly designed for Electronic Shelf Label (ESL) systems with diverse industry applications. In retail, it serves as large electronic shelf labels for bulky products (e.g., home appliances, furniture), displaying detailed product info, prices, and stock status—enhancing customer information access. Its low power consumption reduces retail maintenance costs. In logistics, it functions as large cargo tags, displaying complete waybills and transportation statuses, withstanding -25~60℃ transportation for 10 days. In industrial control, it acts as status monitors, indicating normal (white background with black text) and fault (black background with white text) states for equipment. With ROHS2.0+HF+REACH compliance and rigorous reliability testing, it meets global environmental and reliability demands.



Core Advantages

 ◊ High-Resolution Large Display: More Info, Sharper Details

The YE035A32 features 184×384 high resolution (122 DPI) with 0.2075×0.2075mm square pixels, delivering sharp text, multi-line content, and barcodes—ideal for displaying detailed information. Its 2-color performance is outstanding: white state L*=67, black state L*=18, with high reflectance and contrast ratio ensuring clear visibility in low light. The pure reflective mode saves power by eliminating backlighting, while the hard-coat antiglare surface reduces glare under direct sunlight. With an ultra-wide viewing angle, there’s no brightness deviation from any direction, supporting multi-person viewing for shared devices.

  ◊ Ultra-Low Power & Broad Temperature Range: Versatile Adaptation

Powered by bi-stable technology, the module only consumes power during updates (max 26mAs at 25℃) and draws ≤3μA in deep sleep. A standard lithium battery can power daily-updated devices for over 12 months. It supports a broad operating temperature range (-15~65℃), adapting to harsh environments like cold storage or high-temperature workshops (normal use 0~50℃). The on-chip booster generates driving voltages internally, simplifying circuits. The internal/external temperature sensor (I2C) enables real-time waveform adjustment, ensuring stability in extreme temperatures.

  ◊ Durable & Easy Integration: Low Development Cost

With an outline of 45.03×91.75×0.9mm, the YE035A32 fits into medium-to-large size devices. It passed rigorous reliability tests: 240-hour high/low-temperature operation (40℃/0℃), 50 temperature cycles (-25℃~60℃), 168-hour high-humidity operation (40℃, 90%RH), and ESD testing (machine model ±250V). The hard-coat screen resists scratches and fingerprints, while ROHS2.0+HF+REACH compliance meets global standards. Its 5-year design life (25℃/60%RH, daily updates) ensures long-term use. The flexible FPC (0.10±0.03mm) with PI stiffener (0.30±0.03mm) simplifies installation in non-flat layouts.

  ◊ Flexible Interface: Wide Compatibility

The module supports 3-wire/4-wire SPI (selectable via BS1 pin) and I2C for temperature sensors, compatible with most MCUs and embedded systems—no complex drivers needed. Pins 6 (TSCL) and 7 (TSDA) must be grounded if external temperature sensors aren’t used (not NC). The 24-pin 0.5mm ZIF Socket enables quick, secure installation. Customizations include FPC layout/connector type, cover glass processing (logo/pattern printing), and OTP programming (10-byte module identification), adapting to diverse application needs like large ESLs and industrial monitors.








Technical Drawing



3.5 Inch E Paper Display 184×384 Resolution 24pin Black / White 2 Coloured E Ink Display 1
PIN Definition
PIN Symbol Description Remark
1 NC No connection and do not connect with other NC pins Keep Open
2 GDR N-Channel MOSFET Gate Drive Control
3 RESE Current Sense Input for the Control Loop
4 NC No connection and do not connect with other NC pins Keep Open
5 VSH2 Positive Source driving voltage
6 TSCL I²C Interface to digital temperature sensor Clock pin Ground if external sensor not used (not NC)
7 TSDA I²C Interface to digital temperature sensor Data pin Ground if external sensor not used (not NC)
8 BS1 Bus selection pin Low=4-wire SPI, High=3-wire SPI (9 bits)
9 BUSY Busy state output pin High=IC working, no command allowed
10 RES# Reset signal input Active low
11 D/C# Data/Command control pin High=Data, Low=Command
12 CS# Chip Select input pin Low=IC enabled for MCU communication
13 SCL Serial clock pin for interface
14 SDA Serial data pin for interface
15 VDDIO Power input pin for the Interface
16 VCI Power Supply pin for the chip 2.5~3.7V
17 VSS Ground (Digital)
18 VDD Core logic power pin
19 VPP Power Supply for OTP Programming
20 VSH1 Positive Source driving voltage
21 VGH Positive Gate driving voltage
22 VSL Negative Source driving voltage
23 VGL Negative Gate driving voltage
24 VCOM VCOM driving voltage OTP programmed in factory



Customization Options


The YE035A32 offers multiple customization options to meet diverse application needs:

FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.

Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.

Display Colors: Various color combinations available for customization, including black-white-red-yellow, black-white, black-white-red, etc.

Refresh Modes: Multiple refresh methods customizable, such as fast refresh, slow refresh, full refresh, partial refresh, and more.

Tags:

Color E Ink Screen,

E Paper E Ink Display,

Electronic Paper Display

Recommended Products
11.6 Inch Electronic Paper Display 640×960 Black / White / Red 3 Color E Ink Display

11.6 Inch Electronic Paper Display 640×960 Black / White / Red 3 Color E Ink Display

Contact Now
11.6 Inch E Paper Display 960×640 Resolution Black / White 2 Color E Ink Screen

11.6 Inch E Paper Display 960×640 Resolution Black / White 2 Color E Ink Screen

Contact Now
10.2 Inch Electronic Paper Display 640×960 Black / White / Red 3 Color E Ink Screen

10.2 Inch Electronic Paper Display 640×960 Black / White / Red 3 Color E Ink Screen

Contact Now
3.5 Inch E Paper Display 184*384 Resolution 24 Pin Low Power Consumption E Ink Display

3.5 Inch E Paper Display 184*384 Resolution 24 Pin Low Power Consumption E Ink Display

Contact Now
9.7 Inch E Ink Display 960×672 Resolution Black White Red Color E Ink Screen

9.7 Inch E Ink Display 960×672 Resolution Black White Red Color E Ink Screen

Contact Now
4.2 Inch E paper Display 400×300 Resolution Black White Red Yellow 4 Color E Ink Screen

4.2 Inch E paper Display 400×300 Resolution Black White Red Yellow 4 Color E Ink Screen

Contact Now
2.9 Inch E Ink Display 128×296 Resolution 24 Pin Ultra Low Power 2 Color E Ink Screen

2.9 Inch E Ink Display 128×296 Resolution 24 Pin Ultra Low Power 2 Color E Ink Screen

Contact Now
products
PRODUCTS DETAILS
Products

HDMI LCD Display

TFT LCD Module

Rectangular LCD Display

Round LCD Display

Square LCD Display

Bar Type LCD Display

Industrial Monitor

Portable Monitor

HDMI Driver Board

E Paper Display

TFT LCD Touch Screen

Digital Photo Frame

Commercial Display

Laptop LCD Screen

OLED Display Module

ESP32 Display Module
3.5 Inch E Paper Display 184×384 Resolution 24pin Black / White 2 Coloured E Ink Display
  • name
  • name
3.5 Inch E Paper Display 184×384 Resolution 24pin Black / White 2 Coloured E Ink Display
MOQ: 600
Price: 5.14-7.93/pc
Standard Packaging: 35 pcs/box
Delivery Period: 14-30days
Payment Method: ,T/T,D/P,D/A,Western Union
Supply Capacity: 300k/month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
RoHS/CE/CB
Model Number
YE035A32
Document
YE035A32.pdf
Minimum Order Quantity:
600
Price:
5.14-7.93/pc
Packaging Details:
35 pcs/box
Delivery Time:
14-30days
Payment Terms:
,T/T,D/P,D/A,Western Union
Supply Ability:
300k/month
Highlight

3.5 Inch E Paper Display

,

E Paper Display 184×384

,

2 Coloured E Ink Display

Product Description
3.5 Inch E-paper Display 184×384 Resolution 24pin  Black/White 2-Color E-Ink Screen
(Model: YE035A32)



Product Features

◊184×384 pixels display (122 DPI, pixel pitch 0.2075×0.2075mm)
◊Black/White (B/W) 2-color full display capabilities
◊High contrast & high reflectance (white L*=67, black L*=18)
◊Pure reflective mode & ultra wide viewing angle
◊Ultra-low power consumption (≤3μA deep sleep, 26mAs max update power)
◊Broad operating temperature range (-15~65℃, normal 0~50℃)
◊Hard-coat antiglare surface & on-chip display RAM
◊3-wire/4-wire SPI + I2C temperature sensor interface (internal/external)
◊On-chip booster/regulator & ROHS2.0+HF+REACH compliant

The YE035A32 is an Active Matrix Electrophoretic Display (AMEPD) optimized for medium-to-large size high-info scenarios. It features a 3.5-inch active area (38.18×79.68mm) with 184×384 pixels (0.2075×0.2075mm pitch, 122 DPI), supporting Black/White 2-color display—ideal for clear presentation of detailed information in electronic shelf labels. The module integrates a SSD1685 driver IC, including gate buffer, source buffer, timing control, oscillator, DC-DC converter, SRAM, and LUT, ensuring stable performance. With an ultra-thin outline (45.03×91.75×0.9mm without masking film) and lightweight design (TBD), it fits seamlessly into devices like large electronic shelf labels, logistics tags, and industrial control terminals. The hard-coat antiglare surface and pure reflective mode eliminate glare under strong light, while bi-stable technology ensures ultra-low power consumption—only drawing current during screen updates.
Type E-Paper Screen Refresh Method Full Refresh
Resolution 184×384 (122 DPI) Place of Origin Shenzhen, China
Brand Name Yingzhanying Technology Outline Dimensions 45.03(H)×91.75(V)×0.9(D) mm
Supplier Type All (IPS) Active Area 38.18(H)×79.68(V) mm
Interface 3-wire/4-wire SPI (BS1 pin selectable), I2C (temp sensor) Driver IC SSD1685
MOQ 5PCS Operating Temperature -15~65℃ (normal 0~50℃)
Connector Type 24-pin 0.5mm ZIF Socket Storage Temperature 0~50℃ (max 5 years)
Colors                                                     Black/White
Power Consumption                                                     Update: ≤26mAs (25℃); Deep Sleep: ≤3μA
Product Picture3.5 Inch E Paper Display 184×384 Resolution 24pin Black / White 2 Coloured E Ink Display 0
The YE035A32 excels in medium-to-large size high-info scenarios with its 122 DPI display and 2-color high contrast. It clearly presents detailed black-and-white information—ideal for displaying product descriptions, multi-line prices, and barcodes in large electronic shelf labels, logistics tags, and industrial terminals. Its square pixel pitch (0.2075×0.2075mm) ensures sharp text and graphics, even small fonts remain legible. The hard-coat antiglare surface eliminates glare under direct sunlight, maintaining readability in retail stores or outdoor kiosks. With an ultra-thin (0.9mm) design, it fits into space-constrained devices, while ultra-low power consumption (≤3μA deep sleep) enables over 12 months of battery life for daily-updated applications.
The YE035A32 is mainly designed for Electronic Shelf Label (ESL) systems with diverse industry applications. In retail, it serves as large electronic shelf labels for bulky products (e.g., home appliances, furniture), displaying detailed product info, prices, and stock status—enhancing customer information access. Its low power consumption reduces retail maintenance costs. In logistics, it functions as large cargo tags, displaying complete waybills and transportation statuses, withstanding -25~60℃ transportation for 10 days. In industrial control, it acts as status monitors, indicating normal (white background with black text) and fault (black background with white text) states for equipment. With ROHS2.0+HF+REACH compliance and rigorous reliability testing, it meets global environmental and reliability demands.



Core Advantages

 ◊ High-Resolution Large Display: More Info, Sharper Details

The YE035A32 features 184×384 high resolution (122 DPI) with 0.2075×0.2075mm square pixels, delivering sharp text, multi-line content, and barcodes—ideal for displaying detailed information. Its 2-color performance is outstanding: white state L*=67, black state L*=18, with high reflectance and contrast ratio ensuring clear visibility in low light. The pure reflective mode saves power by eliminating backlighting, while the hard-coat antiglare surface reduces glare under direct sunlight. With an ultra-wide viewing angle, there’s no brightness deviation from any direction, supporting multi-person viewing for shared devices.

  ◊ Ultra-Low Power & Broad Temperature Range: Versatile Adaptation

Powered by bi-stable technology, the module only consumes power during updates (max 26mAs at 25℃) and draws ≤3μA in deep sleep. A standard lithium battery can power daily-updated devices for over 12 months. It supports a broad operating temperature range (-15~65℃), adapting to harsh environments like cold storage or high-temperature workshops (normal use 0~50℃). The on-chip booster generates driving voltages internally, simplifying circuits. The internal/external temperature sensor (I2C) enables real-time waveform adjustment, ensuring stability in extreme temperatures.

  ◊ Durable & Easy Integration: Low Development Cost

With an outline of 45.03×91.75×0.9mm, the YE035A32 fits into medium-to-large size devices. It passed rigorous reliability tests: 240-hour high/low-temperature operation (40℃/0℃), 50 temperature cycles (-25℃~60℃), 168-hour high-humidity operation (40℃, 90%RH), and ESD testing (machine model ±250V). The hard-coat screen resists scratches and fingerprints, while ROHS2.0+HF+REACH compliance meets global standards. Its 5-year design life (25℃/60%RH, daily updates) ensures long-term use. The flexible FPC (0.10±0.03mm) with PI stiffener (0.30±0.03mm) simplifies installation in non-flat layouts.

  ◊ Flexible Interface: Wide Compatibility

The module supports 3-wire/4-wire SPI (selectable via BS1 pin) and I2C for temperature sensors, compatible with most MCUs and embedded systems—no complex drivers needed. Pins 6 (TSCL) and 7 (TSDA) must be grounded if external temperature sensors aren’t used (not NC). The 24-pin 0.5mm ZIF Socket enables quick, secure installation. Customizations include FPC layout/connector type, cover glass processing (logo/pattern printing), and OTP programming (10-byte module identification), adapting to diverse application needs like large ESLs and industrial monitors.

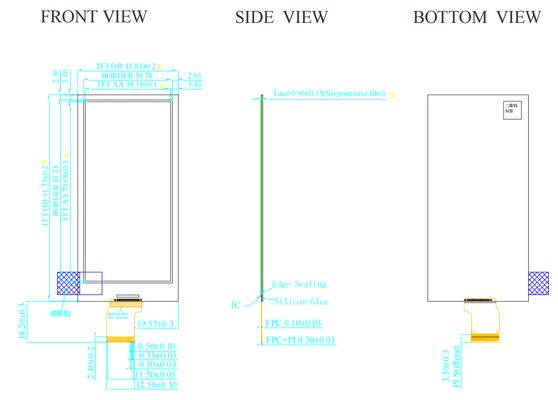

Technical Drawing



3.5 Inch E Paper Display 184×384 Resolution 24pin Black / White 2 Coloured E Ink Display 1
PIN Definition
PIN Symbol Description Remark
1 NC No connection and do not connect with other NC pins Keep Open
2 GDR N-Channel MOSFET Gate Drive Control
3 RESE Current Sense Input for the Control Loop
4 NC No connection and do not connect with other NC pins Keep Open
5 VSH2 Positive Source driving voltage
6 TSCL I²C Interface to digital temperature sensor Clock pin Ground if external sensor not used (not NC)
7 TSDA I²C Interface to digital temperature sensor Data pin Ground if external sensor not used (not NC)
8 BS1 Bus selection pin Low=4-wire SPI, High=3-wire SPI (9 bits)
9 BUSY Busy state output pin High=IC working, no command allowed
10 RES# Reset signal input Active low
11 D/C# Data/Command control pin High=Data, Low=Command
12 CS# Chip Select input pin Low=IC enabled for MCU communication
13 SCL Serial clock pin for interface
14 SDA Serial data pin for interface
15 VDDIO Power input pin for the Interface
16 VCI Power Supply pin for the chip 2.5~3.7V
17 VSS Ground (Digital)
18 VDD Core logic power pin
19 VPP Power Supply for OTP Programming
20 VSH1 Positive Source driving voltage
21 VGH Positive Gate driving voltage
22 VSL Negative Source driving voltage
23 VGL Negative Gate driving voltage
24 VCOM VCOM driving voltage OTP programmed in factory



Customization Options


The YE035A32 offers multiple customization options to meet diverse application needs:

FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.

Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.

Display Colors: Various color combinations available for customization, including black-white-red-yellow, black-white, black-white-red, etc.

Refresh Modes: Multiple refresh methods customizable, such as fast refresh, slow refresh, full refresh, partial refresh, and more.

Tags:

Color E Ink Screen,

E Paper E Ink Display,

Electronic Paper Display

Quick link
Home Products About Us Video News Cases Contact Us
Quick Contact

Address

Room 514, 5th Floor, Block B, Baogang Center, Baoyuan Road, Xixiang Sub-district, Bao 'an District, Shenzhen City

Tel

86-0755-8524744-815

13823537002
Our Newsletter
Subscribe to our newsletter for discounts and more.
Privacy Policy |  sitemap  | China Good Quality HDMI LCD Display Supplier. Copyright © 2025 Shenzhen YZY Technology Co., Ltd . All Rights Reserved.
