24pin Black White 2 Colour E Paper Display 3.7 Inch 240×416 Resolution

Products

24pin Black White 2 Colour E Paper Display 3.7 Inch 240×416 Resolution

MOQ:	600
Price:	6.46-9.54/pc
Standard Packaging:	35 pcs/box
Delivery Period:	14-30days
Payment Method:	,T/T,D/P,D/A,Western Union
Supply Capacity:	300k/month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

Certification

RoHS/CE/CB

Model Number

YE037A30

Document

Highlight:

2 Colour E Paper Display

2 Colour E Paper Display 3.7 Inch

Color E Ink Screen 240×416

Product Description

3.7 Inch E-paper Display 240×416 Resolution 24pin Black/White 2-Color E-Ink Screen

(Model: YE037A30)

Product Features

◊240×416 pixels display (130 DPI, pixel pitch 0.196×0.196mm)

◊Black/White (B/W) 2-color full display capabilities

◊High contrast & high reflectance (white reflectance 30~35%)

◊Pure reflective mode & ultra wide viewing angle

◊Ultra-low power consumption (≤3μA deep sleep, 50mAs max update power)

◊Broad operating temperature range (0~50℃, transport -25~60℃)

◊Hard-coat antiglare surface & on-chip display RAM

◊3-wire/4-wire SPI + I2C temperature sensor interface (internal/external)

◊On-chip booster/regulator & ROHS2.0 compliant

The YE037A30 is an Active Matrix Electrophoretic Display (AMEPD) optimized for medium-to-large size high-info scenarios. It features a 3.7-inch active area (47.04×81.54mm) with 240×416 pixels (0.196×0.196mm pitch, 130 DPI), supporting Black/White 2-color display—ideal for clear presentation of detailed information in electronic shelf labels. The module integrates a UC8253C driver IC, including gate buffer, source buffer, timing control, oscillator, DC-DC converter, SRAM, and LUT, ensuring stable performance. With an ultra-thin outline (53×92.99×0.9mm without masking film) and lightweight design (8.5±0.5g), it fits seamlessly into devices like large electronic shelf labels, logistics tags, and industrial control terminals. The hard-coat antiglare surface and pure reflective mode eliminate glare under strong light, while bi-stable technology ensures ultra-low power consumption—only drawing current during screen updates.

Type	E-Paper	Screen Refresh Method	Full Refresh
Resolution	240×416 (130 DPI)	Place of Origin	Shenzhen, China
Brand Name	Yingzhanying Technology	Outline Dimensions	53(H)×92.99(V)×0.9(D) mm
Supplier Type	All (IPS)	Active Area	47.04(H)×81.54(V) mm
Interface	3-wire/4-wire SPI (BS pin selectable), I2C (temp sensor)	Driver IC	UC8253C
MOQ	5PCS	Operating Temperature	0~50℃ (35~70%RH)
Connector Type	24-pin 0.5mm ZIF Socket	Storage Temperature	0~40℃ (max 5 years)
Colors	Black/White
Power Consumption	Update: ≤50mAs (25℃); Deep Sleep: ≤3μA

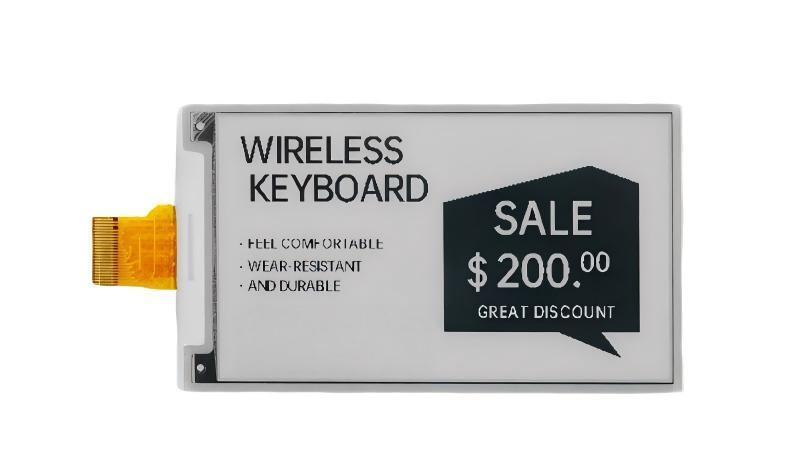

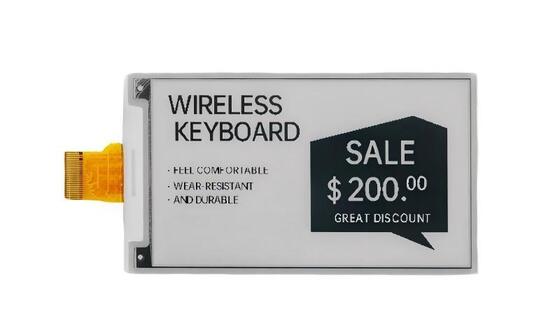

Product Picture

The YE037A30 excels in medium-to-large size high-info scenarios with its 130 DPI display and 2-color high contrast. It clearly presents detailed black-and-white information—ideal for displaying product descriptions, multi-line prices, and barcodes in large electronic shelf labels, logistics tags, and industrial terminals. Its square pixel pitch (0.196×0.196mm) ensures sharp text and graphics, even small fonts remain legible. The hard-coat antiglare surface eliminates glare under direct sunlight, maintaining readability in retail stores or outdoor kiosks. With an ultra-thin (0.9mm) design, it fits into space-constrained devices, while ultra-low power consumption (≤3μA deep sleep) enables over 12 months of battery life for daily-updated applications.

The YE037A30 is mainly designed for Electronic Shelf Label (ESL) systems with diverse industry applications. In retail, it serves as large electronic shelf labels for bulky products (e.g., home appliances, furniture), displaying detailed product info, prices, and stock status—enhancing customer information access. Its low power consumption reduces retail maintenance costs. In logistics, it functions as large cargo tags, displaying complete waybills and transportation statuses, withstanding -25~60℃ transportation for 10 days. In industrial control, it acts as status monitors, indicating normal (white background with black text) and fault (black background with white text) states for equipment. With ROHS2.0 compliance and rigorous reliability testing, it meets global environmental and reliability demands.

Core Advantages

◊ High-Resolution Large Display: More Info, Sharper Details

The YE037A30 features 240×416 high resolution (130 DPI) with 0.196×0.196mm square pixels, delivering sharp text, multi-line content, and barcodes—ideal for displaying detailed information. Its 2-color performance is outstanding: white reflectance 30~35%, contrast ratio typ. 10:1, ensuring clear visibility in low light. The pure reflective mode saves power by eliminating backlighting, while the hard-coat antiglare surface reduces glare under direct sunlight. With an ultra-wide viewing angle, there’s no brightness deviation from any direction, supporting multi-person viewing for shared devices.

◊ Ultra-Low Power & Broad Temperature Range: Versatile Adaptation

Powered by bi-stable technology, the module only consumes power during updates (max 50mAs at 25℃) and draws ≤3μA in deep sleep. A standard lithium battery can power daily-updated devices for over 12 months. It supports a broad operating temperature range (0~50℃) and transportation temperature (-25~60℃ for 10 days), adapting to harsh environments like cold storage or high-temperature workshops. The on-chip booster generates driving voltages internally, simplifying circuits. The internal/external temperature sensor (I2C) enables real-time waveform adjustment, ensuring stability in extreme temperatures.

◊ Durable & Easy Integration: Low Development Cost

With an outline of 53×92.99×0.9mm, the YE037A30 fits into medium-to-large size devices. It passed rigorous reliability tests: 240-hour high/low-temperature operation (40℃/0℃), 100 temperature cycles (-25℃~70℃), 168-hour high-humidity operation (40℃, 90%RH), vibration testing (1.04G, 20~200Hz), and drop impact (100cm height). The hard-coat screen resists scratches and fingerprints, while ROHS2.0 compliance meets global standards. Its long service life ensures long-term use, while the flexible FPC (0.10±0.03mm) with stiffener (0.30±0.03mm) simplifies installation in non-flat layouts.

◊ Flexible Interface: Wide Compatibility

The module supports 3-wire/4-wire SPI (selectable via BS pin) and I2C for temperature sensors, compatible with most MCUs and embedded systems—no complex drivers needed. Pins 6 (TSCL) and 7 (TSDA) must be grounded if external temperature sensors aren’t used (not NC). The 24-pin 0.5mm ZIF Socket enables quick, secure installation. Customizations include FPC layout/connector type, cover glass processing (logo/pattern printing), and OTP programming, adapting to diverse application needs like large ESLs and industrial monitors.

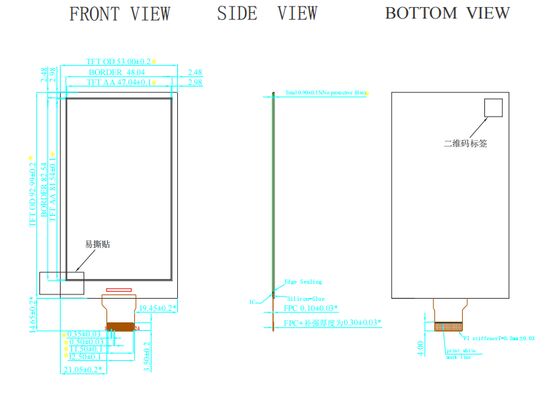

Technical Drawing

PIN Definition

PIN	Symbol	Description	Remark
1	NC	No connection and do not connect with other NC pins	Keep Open
2	GDR	N-Channel MOSFET Gate Drive Control
3	RESE	Current Sense Input for the Control Loop
4	NC	No connection and do not connect with other NC pins	Keep Open
5	VDHR	Positive Source driving voltage
6	TSCL	I²C Interface to digital temperature sensor Clock pin	Ground if external sensor not used (not NC)
7	TSDA	I²C Interface to digital temperature sensor Data pin	Ground if external sensor not used (not NC)
8	BS	Bus selection pin	Low=4-wire SPI, High=3-wire SPI
9	BUSY_N	Busy state output pin	L=Driver busy, H=Can send command/data
10	RST_N	Reset signal input	Active low
11	DC	Data/Command control pin	High=Data, Low=Command
12	CSB	Chip Select input pin	Low=IC enabled for MCU communication
13	SCL	Serial clock pin for SPI interface
14	SDA	Serial data pin for SPI interface
15	VDDIO	Power for interface logic pins
16	VDD	Power Supply pin for the chip	2.5~3.6V
17	GND	Ground (Digital)
18	VDDD	Core logic power pin
19	VPP	Power Supply for OTP Programming
20	VSH	Positive Source driving voltage
21	VGH	Positive Gate driving voltage
22	VSL	Negative Source driving voltage
23	VGL	Negative Gate driving voltage
24	VCOM	VCOM driving voltage	OTP programmed in factory

Customization Options

The YE037A30 offers multiple customization options to meet diverse application needs:

FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.

Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.

Display Colors: Various color combinations available for customization, including black-white-red-yellow, black-white, black-white-red, etc.

Refresh Modes: Multiple refresh methods customizable, such as fast refresh, slow refresh, full refresh, partial refresh, and more.
