4.37 Inch E-paper Display 176×480 Resolution Black/White/Red/Yellow 4-Color E-Ink Screen

Products

4.37 Inch E-paper Display 176×480 Resolution Black/White/Red/Yellow 4-Color E-Ink Screen

MOQ:	600
Price:	8.22-11.16/pc
Standard Packaging:	35 pcs/box
Delivery Period:	14-30days
Payment Method:	,T/T,D/P,D/A,Western Union
Supply Capacity:	300k/month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

Certification

RoHS/CE/CB

Model Number

YE0437A08

Document

Highlight:

176×480 e paper display

176×480 e paper e ink display

4.37 inch e paper display

Product Description

4.37 Inch E-paper Display 176×480 Resolution Black/White/Red/Yellow 4-Color E-Ink Screen

(Model: YE0437A08)

Product Features

◊176×480 pixels display (117 DPI, pixel pitch 0.217×0.217mm)

◊Black/White/Red/Yellow (B/W/R/Y) 4-color full display capabilities

◊High contrast & high reflectance (white L*=63~65, black L*=9~14, red L*=25~28, yellow L*=55~62)

◊Pure reflective mode & ultra wide viewing angle

◊Ultra-low power consumption (≤3μA deep sleep, 150mAs max update power)

◊Bi-stable display & commercial temperature range (0~40℃)

◊Hard-coat antiglare surface & on-chip display RAM

◊3-wire/4-wire SPI interface (BS pin selectable), internal temp sensor

◊On-chip booster/regulator & ROHS2.0+HF+REACH compliant

The YE0437A08 is an Active Matrix Electrophoretic Display (AMEPD) optimized for long-strip multi-color classification scenarios. It features a 4.37-inch active area (38.19×104.16mm) with 176×480 pixels (0.217×0.217mm pixel pitch, 117 DPI), supporting Black/White/Red/Yellow 4-color display—ideal for precise information categorization in long electronic shelf labels. The module integrates a high-performance IST7163CA1-C driver IC, including gate buffer, source buffer, timing control, oscillator, DC-DC converter, SRAM, and LUT, ensuring stable performance. With an ultra-thin outline (46.6×115.86×0.90mm without mask) and lightweight design, it fits seamlessly into devices like long electronic shelf labels, logistics tags, and industrial control terminals. The hard-coat antiglare surface and pure reflective mode eliminate glare under strong light, while bi-stable technology ensures ultra-low power consumption—only drawing current during screen updates.

Type	E-Paper	Screen Refresh Method	Full Refresh
Resolution	176×480 (117 DPI)	Place of Origin	Shenzhen, China
Brand Name	Yingzhanying Technology	Outline Dimensions	46.6(H)×115.86(V)×0.90(D) mm
Supplier Type	All (IPS)	Active Area	38.19(H)×104.16(V) mm
Interface	3-wire/4-wire SPI (BS pin selectable)	Driver IC	IST7163CA1-C
MOQ	5PCS	Operating Temperature	0~40℃ (45~70%RH)
Connector Type	24-pin 0.5mm ZIF Socket	Storage Temperature	-25~60℃ (max 5 years)
Colors	Black/White/Red/Yellow
Power Consumption	Update: ≤150mAs (25℃); Deep Sleep: ≤3μA

Product Picture

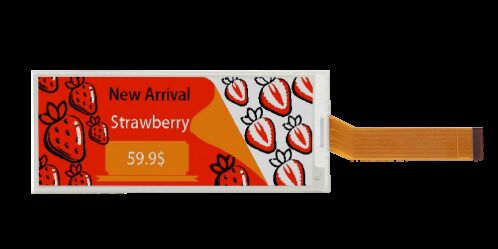

The YE0437A08 excels in long-strip multi-level classification scenarios with its 117 DPI display and 4-color capability. It vividly presents multi-dimensional information—red for promotions/urgent alerts, yellow for new arrivals/stock warnings, black for detailed text/barcodes, and white for background—making it perfect for long electronic shelf labels, logistics tags, and industrial terminals. Its 176×480 long-strip resolution is tailored for narrow and tall information display, such as product specifications or price tiers. The hard-coat antiglare surface eliminates glare under direct sunlight, maintaining readability in retail stores, warehouses, or outdoor kiosks. With an ultra-thin (0.90mm) design, it fits into space-constrained long devices, while ultra-low power consumption (≤3μA deep sleep) enables over 12 months of battery life for daily-updated applications.

The YE0437A08 is mainly designed for long Electronic Shelf Label (ESL) systems with diverse industry applications. In retail, it serves as long electronic shelf labels for beverages, cosmetics, and narrow-format products, using 4-color display to highlight promotions (red), new arrivals (yellow), detailed product descriptions/prices (black), and stock status (white background)—enhancing customer information access and reducing manual label updates. Its low power consumption reduces retail maintenance costs. In logistics, it functions as long cargo tags, displaying complete waybills, transportation statuses, priority levels (red for urgent, yellow for regular), withstanding -25~60℃ transportation for 10 days. In industrial control, it acts as status monitors, indicating normal (white), fault (black), urgent (red), and maintenance alerts (yellow) for equipment. With ROHS2.0+HF+REACH compliance and rigorous reliability testing (high/low temperature, vibration, drop impact), it meets global environmental and reliability demands for long-strip 4-color e-paper applications.

Core Advantages

◊ Long-Strip 4-Color Display: Precise Classification, Tailored for Narrow Scenarios

The YE0437A08 features a 4.37-inch long-strip active area (38.19×104.16mm) with 176×480 resolution (117 DPI), supporting 4-color display for refined information classification. Its optical performance is excellent: white state L*=63~65, black state L*=9~14, red state L*=25~28 (a*=38~40), yellow state L*=55~62 (b*=63~68), white reflectance 30~35%, and contrast ratio 10:1 typ. The pure reflective mode saves power by eliminating backlighting, while the hard-coat antiglare surface reduces glare under direct sunlight. With an ultra-wide viewing angle, there’s no color or brightness deviation from any direction, supporting multi-person viewing for long shared devices.

◊ Ultra-Low Power & Stable Performance: Long-Term Reliability

Powered by bi-stable technology, the module only consumes power during updates (max 150mAs at 25℃) and draws ≤3μA in deep sleep. A standard lithium battery can power daily-updated long devices for over 12 months, reducing battery replacement frequency. It integrates the IST7163CA1-C driver IC with on-chip booster/regulator, generating VCOM, Gate (VGH/VGL), and Source (VSH1/VSH2/VSL) voltages internally, simplifying external circuits. The internal temperature sensor enables real-time waveform adjustment, ensuring stable operation in 0~40℃. It passed rigorous reliability tests, including 240-hour high/low-temperature storage, 168-hour high-humidity operation, and 50 temperature cycles (-25℃~60℃), ensuring long-term use.

◊ Flexible Interface & Easy Integration: Low Development Cost

The module supports 3-wire/4-wire SPI (selectable via BS pin), compatible with most MCUs and embedded systems—no complex drivers needed. Pins 6 and 7 on FPC are pre-grounded (no need for external handling). The 24-pin 0.5mm ZIF Socket enables quick, secure installation. Waveform is stored in on-chip OTP, supporting custom programming. The flexible FPC (0.10±0.03mm) with stiffener simplifies installation in non-flat long device layouts, reducing development cycle and cost.

◊ Durable & Wide Adaptability: Harsh Environment Resistant

With an outline of 46.6×115.86×0.90mm, the YE0437A08 is tailored for long-strip device integration. The hard-coat antiglare surface resists scratches and fingerprints, while ROHS2.0+HF+REACH compliance meets global environmental standards. It supports transportation temperature -25~60℃ (10 days) and storage temperature -25~60℃ (max 5 years), adapting to harsh environments like cold storage, warehouses, or outdoor retail. It passed vibration testing (1.04G, 10~500Hz) and drop impact (100cm height on concrete), ensuring durability during transportation and use. The 5-year design life (25℃/60%RH, daily updates) guarantees long-term reliable operation for long electronic shelf labels and industrial devices.

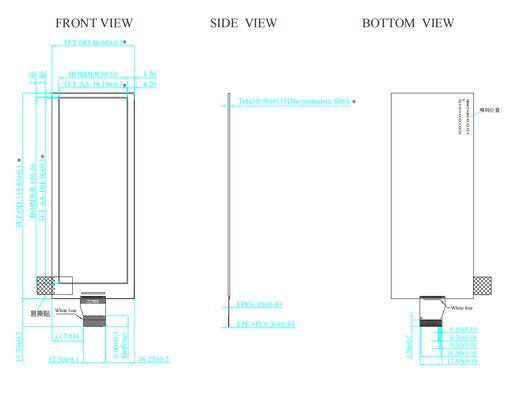

Technical Drawing

PIN Definition

PIN	Symbol	Description	Remark
1	NC	No connection and do not connect with other NC pins	Keep Open
2	GDR	N-Channel MOSFET Gate Drive Control
3	RESE	Current Sense Input for the Control Loop
4	NC	No connection and do not connect with other NC pins	Keep Open
5	VSH2	Positive Source driving voltage (for Red/Yellow)
6	GND	Ground pin	Pre-grounded on FPC
7	GND	Ground pin	Pre-grounded on FPC
8	BS	Bus selection pin	Low=4-wire SPI, High=3-wire SPI (9 bits)
9	BUSY_N	Busy state output pin	H=Driver busy, L=Can send command/data
10	RST_N	Global reset pin	Active low
11	DC	Serial communication Command/Data input	High=Data, Low=Command
12	CSB	Serial communication chip select	Low=IC enabled for MCU communication
13	SCL	Serial communication clock input
14	SDA	Serial communication data input
15	VDDIO	IO voltage supply
16	VCC	Digital/Analog power	2.4~3.6V
17	VSS	Digital ground
18	VDD	1.5V voltage input & output
19	VMTP	OTP program power	10V
20	VSH1	Positive source voltage (for B/W)
21	VGH	Positive gate voltage
22	VSL	Negative source voltage
23	VGL	Negative gate voltage
24	VCOM	VCOM driving voltage	OTP programmed in factory

Customization Options

The YE0437A08 offers multiple customization options to meet diverse long-strip 4-color application needs:

FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.

Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.

Display Colors: Various color combinations available for customization, including black-white-red-yellow, black-white, black-white-red, etc.

Refresh Modes: Multiple refresh methods customizable, such as fast refresh, slow refresh, full refresh, partial refresh, and more.
