5.79 Inch E Ink E Paper Display 272×792 Resolution Black White Red E Ink Screen

Products

5.79 Inch E Ink E Paper Display 272×792 Resolution Black White Red E Ink Screen

MOQ:	600
Price:	10.13-11.89/pc
Standard Packaging:	35 pcs/box
Delivery Period:	14-30days
Payment Method:	,T/T,D/P,D/A,Western Union
Supply Capacity:	300k/month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

Certification

RoHS/CE/CB

Model Number

YE0579A07

Document

Highlight:

5.79 Inch E Ink E Paper Display

E Ink E Paper Display 272×792

Black White Red E Ink Screen

Product Description

5.79 Inch E-paper Display 272×792 Resolution Black/White/Red 3-Color E-Ink Screen

(Model: YE0579A07)

Product Features

◊272×792 pixels display (144 DPI, pixel pitch 0.1755×0.1755mm)

◊Black/White/Red (B/W/R) 3-color full display capabilities

◊High contrast & high reflectance (white L*=63~65, black L*=13~14, red L*=25~26.5)

◊Pure reflective mode & ultra wide viewing angle

◊Ultra-low power consumption (≤5μA deep sleep, 240mAs max update power)

◊Bi-stable display & commercial temperature range (0~40℃)

◊Hard-coat antiglare surface & on-chip display RAM

◊3-wire/4-wire SPI + I2C temp sensor interface (internal/external)

◊On-chip booster/regulator & ROHS2.0+HF+REACH compliant

The YE0579A07 is an Active Matrix Electrophoretic Display (AMEPD) optimized for large-size color-coded scenarios. It features a 5.79-inch active area (47.74×139.00mm) with 272×792 pixels (0.1755×0.1755mm pixel pitch, 144 DPI), supporting Black/White/Red 3-color display—ideal for precise information categorization in electronic shelf labels, logistics tags, and industrial terminals. The module integrates a high-performance SSD1683 driver IC, including gate buffer, source buffer, timing control, oscillator, DC-DC converter, SRAM, and LUT, ensuring stable performance. With an ultra-thin outline (56.94×150.92×0.90mm) and lightweight design, it fits seamlessly into space-constrained devices. The hard-coat antiglare surface and pure reflective mode eliminate glare under strong light, while bi-stable technology ensures ultra-low power consumption—only drawing current during screen updates.

Type	E-Paper	Screen Refresh Method	Full Refresh
Resolution	272×792 (144 DPI)	Place of Origin	Shenzhen, China
Brand Name	Yingzhanying Technology	Outline Dimensions	56.94(H)×150.92(V)×0.90(D) mm
Supplier Type	All (IPS)	Active Area	47.74(H)×139.00(V) mm
Interface	3-wire/4-wire SPI (BS1 pin selectable), I2C	Driver IC	SSD1683
MOQ	5PCS	Operating Temperature	0~40℃ (45~70%RH)
Connector Type	24-pin 0.5mm ZIF Socket	Storage Temperature	0~40℃ (max 5 years)
Colors	Black/White/Red
Power Consumption	Update: ≤240mAs (25℃); Deep Sleep: ≤5μA

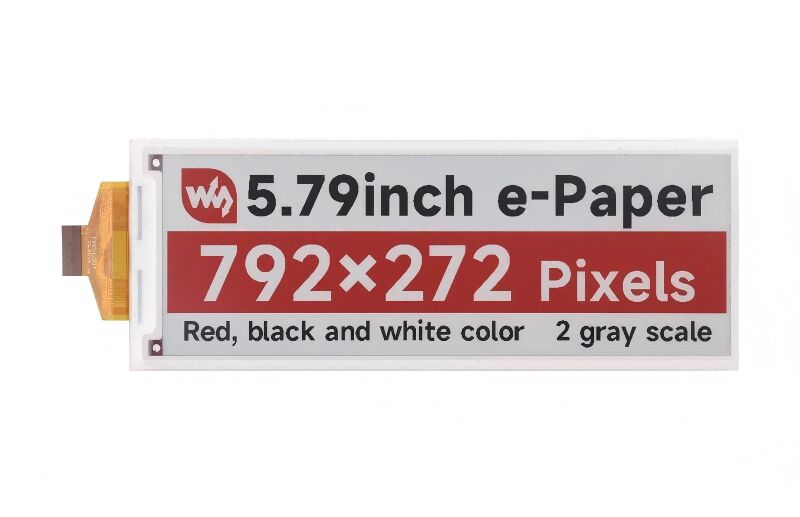

Product Picture

The YE0579A07 excels in large-size color-coded scenarios with its 144 DPI high resolution and 3-color capability. It vividly presents dual-level information—red for promotions/urgent alerts, black for detailed text/barcodes, and white for background—making it perfect for electronic shelf labels, logistics tags, industrial control terminals, and retail price signs. Its 272×792 resolution and 5.79-inch size are tailored for displaying multi-line information, such as product specifications, price tiers, and inventory status. The hard-coat antiglare surface eliminates glare under direct sunlight, maintaining readability in retail stores, warehouses, or outdoor kiosks. With an ultra-thin (0.90mm) design, it fits into space-constrained devices, while ultra-low power consumption (≤5μA deep sleep) enables over 12 months of battery life for daily-updated applications.

The YE0579A07 is mainly designed for large Electronic Shelf Label (ESL) systems and industrial control with diverse industry applications. In retail, it serves as large electronic shelf labels for supermarkets, pharmacies, and bookstores, using 3-color display to highlight promotions (red), detailed product descriptions/prices (black), and stock status (white background)—enhancing customer information access and reducing manual label updates. Its low power consumption reduces retail maintenance costs. In logistics, it functions as large cargo tags, displaying complete waybills, transportation statuses, and urgent markers (red for priority shipments), withstanding -25~60℃ transportation for 10 days. In industrial control, it acts as status monitors, indicating normal (white), fault (black), and urgent (red) states for equipment. With ROHS2.0+HF+REACH compliance and rigorous reliability testing (high/low temperature, vibration, drop impact), it meets global environmental and reliability demands for large-size 3-color e-paper applications.

Core Advantages

◊ Large-Size 3-Color Display: Clear Classification, Rich Information Display

The YE0579A07 features a 5.79-inch large active area (47.74×139.00mm) with 272×792 resolution (144 DPI), supporting 3-color display for dual-level information classification. Its optical performance is excellent: white state L*=63~65, black state L*=13~14, red state L*=25~26.5 (a*=36~40), white reflectance 30~35%, and contrast ratio 10~15:1. The pure reflective mode saves power by eliminating backlighting, while the hard-coat antiglare surface reduces glare under direct sunlight. With an ultra-wide viewing angle, there’s no color or brightness deviation from any direction, supporting multi-person viewing for large shared devices like industrial monitors or retail price tags.

◊ Ultra-Low Power & Stable Performance: Long-Term Reliability

Powered by bi-stable technology, the module only consumes power during updates (max 240mAs at 25℃) and draws ≤5μA in deep sleep. A standard lithium battery can power daily-updated large devices for over 12 months, reducing battery replacement frequency. It integrates the SSD1683 driver IC with on-chip booster/regulator, generating VCOM, Gate (VGH/VGL), and Source (VSH1/VSH2/VSL) voltages internally, simplifying external circuits. The internal/external temperature sensor (I2C) enables real-time waveform adjustment, ensuring stable operation in 0~40℃. It passed rigorous reliability tests, including 240-hour high/low-temperature storage, 168-hour high-humidity operation, and 50 temperature cycles (-25℃~60℃), ensuring long-term use.

◊ Flexible Interface & Easy Integration: Low Development Cost

The module supports 3-wire/4-wire SPI (selectable via BS1 pin) and I2C for temperature sensors, compatible with most MCUs and embedded systems—no complex drivers needed. Pins 6 (TSCL) and 7 (TSDA) must be grounded if external temperature sensors aren’t used (not NC). The 24-pin 0.5mm ZIF Socket enables quick, secure installation. It includes 10-byte OTP space for module identification, supporting custom programming. The flexible FPC (0.10±0.03mm) with PI stiffener simplifies installation in non-flat large device layouts, reducing development cycle and cost.

◊ Durable & Wide Adaptability: Harsh Environment Resistant

With an outline of 56.94×150.92×0.90mm, the YE0579A07 is suitable for large-size device integration. The hard-coat antiglare surface resists scratches and fingerprints, while ROHS2.0+HF+REACH compliance meets global environmental standards. It supports transportation temperature -25~60℃ (10 days) and storage temperature 0~40℃ (max 5 years), adapting to harsh environments like cold storage, warehouses, or outdoor retail. It passed vibration testing (1.04G, 20~200Hz) and drop impact (100cm height on concrete), ensuring durability during transportation and use. The 5-year design life (25℃/60%RH, daily updates) guarantees long-term reliable operation for large electronic shelf labels and industrial devices.

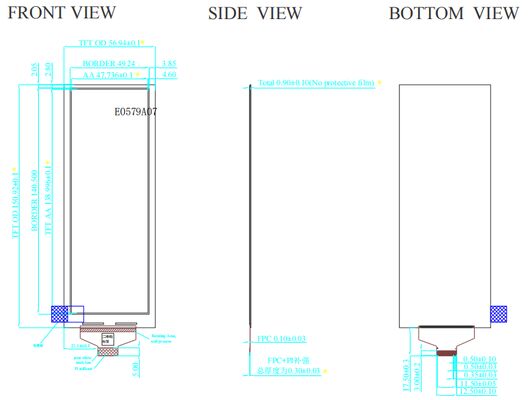

Technical Drawing

PIN Definition

PIN	Symbol	Description	Remark
1	NC	No connection and do not connect with other NC pins	Keep Open
2	GDR	N-Channel MOSFET Gate Drive Control
3	RESE	Current Sense Input for the Control Loop
4	NC	No connection and do not connect with other NC pins	Keep Open
5	VSH2	Positive Source driving voltage (for Red)
6	TSCL	I²C Interface to digital temperature sensor Clock pin	Ground if external sensor not used (not NC)
7	TSDA	I²C Interface to digital temperature sensor Data pin	Ground if external sensor not used (not NC)
8	BS1	Bus selection pin	Low=4-wire SPI, High=3-wire SPI (9 bits)
9	BUSY	Busy state output pin	H=Driver busy, L=Can send command/data
10	RES#	Global reset pin	Active low
11	D/C#	Data/Command control pin	High=Data, Low=Command
12	CS#	Chip Select input pin	Low=IC enabled for MCU communication
13	SCL	Serial clock pin (SPI)
14	SDA	Serial data pin (SPI)
15	VDDIO	Power for interface logic pins
16	VCI	Power Supply pin for the chip	2.3~3.7V
17	VSS	Digital ground
18	VDD	Core logic power pin
19	VPP	Power Supply for OTP Programming
20	VSH1	Positive Source driving voltage (for B/W)
21	VGH	Positive Gate driving voltage
22	VSL	Negative Source driving voltage
23	VGL	Negative Gate voltage
24	VCOM	VCOM driving voltage	OTP programmed in factory

Customization Options

The YE0579A07 offers multiple customization options to meet diverse large-size 3-color application needs:

FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.

Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.

Display Colors: Various color combinations available for customization, including black-white-red-yellow, black-white, black-white-red, etc.

Refresh Modes: Multiple refresh methods customizable, such as fast refresh, slow refresh, full refresh, partial refresh, and more.

Tags:

Color E Ink Screen,

E Paper E Ink Display,

Electronic Paper Display
