ESP32 3.2 Inch TFT LCD Display Module With ESP32 WROOM 32 240x320 Resistive Touch

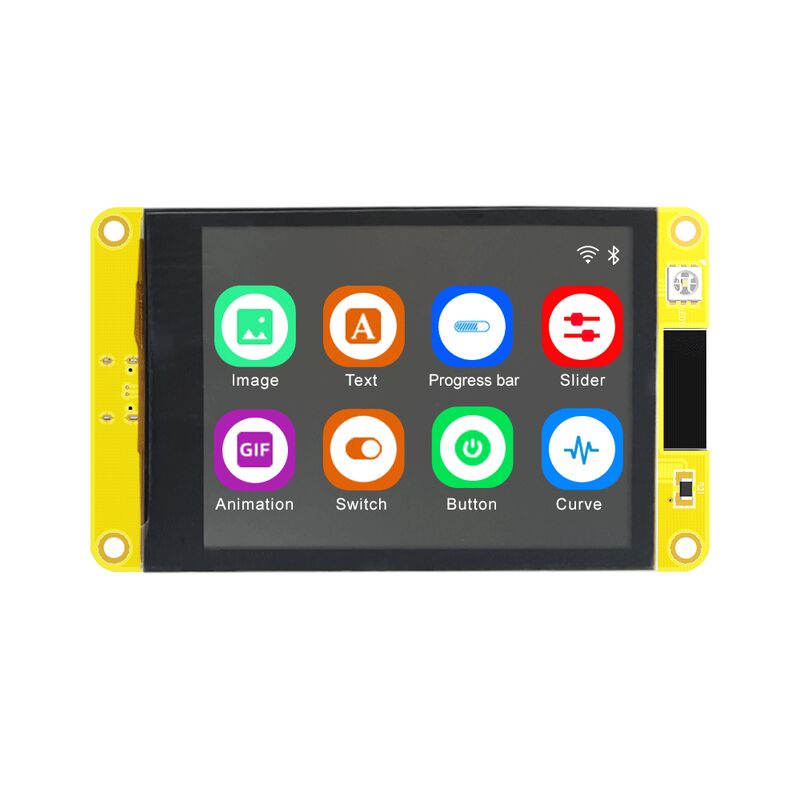

This ESP32 TFT LCD display module integrates an ESP32-WROOM-32 dual-core MCU as the main controller, featuring built-in WiFi and Bluetooth connectivity. The module is equipped with a 3.2 inch color TFT LCD with 240×320 resolution and resistive touch, supporting 16-bit RGB 65K color display for rich and clear visuals.

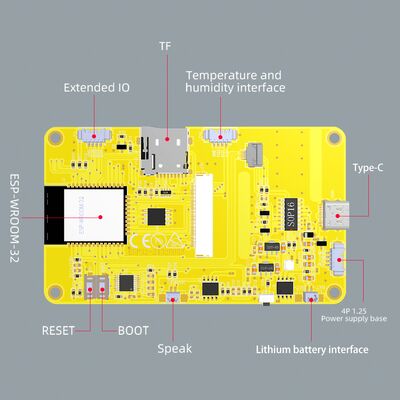

Designed as an all-in-one development solution, the module includes an LCD backlight control circuit, touch control circuit, speaker driver circuit, photosensitive circuit, and RGB LED control circuit. It also provides a TF card slot for storage expansion, serial interface, DHT11 temperature and humidity sensor interface, and a reserved 10-pin expansion interface, making it suitable for various IoT and HMI applications.

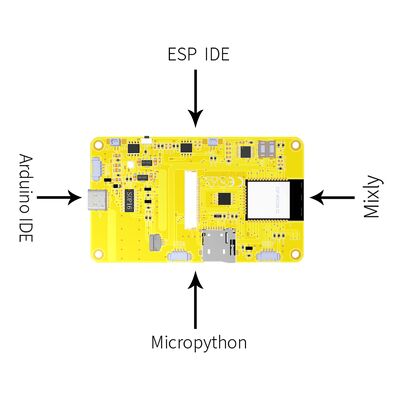

The ESP32 LCD module supports development in Arduino IDE, ESP-IDF, MicroPython, and Mixly. Sample programs are preloaded at the factory, enabling plug-and-play operation and one-click program downloading. Manufactured with military-grade process standards, the module ensures long-term stable operation and supports lithium battery charging and discharging simultaneously, making it ideal for rapid prototyping, education, industrial control, and smart device development.
