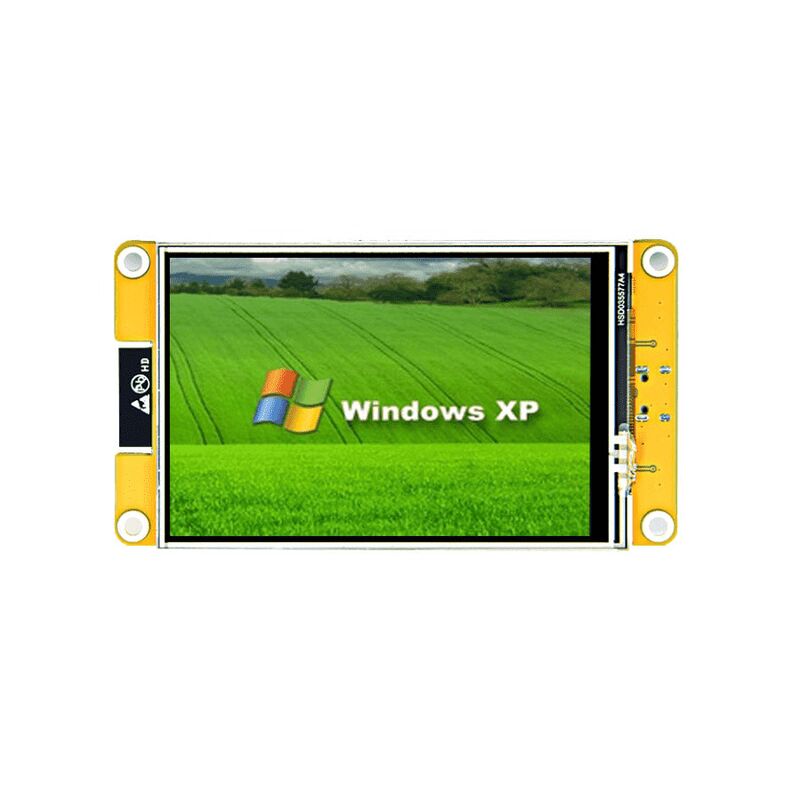

3.5″ TFT LCD Smart Display with 320×480 Resolution and Optional Touch for ESP32 Projects

Brand Name:	YZY
Model Number:	ESP32-3248S035
MOQ:	30 pcs
Price:	$2.99– 11.99 / Piece
Payment Terms:	,T/T
Supply Ability:	Up to 5,000 pcs/day

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE，RoHS

Screen Size:

3.5Inch

Resolution:

320 × 480

Highlight:

3.5″ ESP32 Display Module

320×480 Resolution TFT LCD Display

Optional Touch Smart Display

Product Description

3.5″ Interactive Touch/Non-Touch Display for IoT & HMI

This 3.5″ TFT LCD display module integrates a powerful ESP32 microcontroller with built-in Wi‑Fi and Bluetooth connectivity. Designed for rapid prototyping and embedded smart interfaces, the module supports optional touch functionality for interactive applications.

High-quality 3.5″ TFT display with vivid 320*480 resolution

Built-in ESP32 microcontroller for standalone operation

Optional capacitive touch interface for interactive projects

Pre-loaded example projects for quick development

Arduino library support for rapid prototyping

TF card slot for storage and data expansion

Industrial-grade stability for long-term use

Compatible with Arduino IDE, ESP-IDF, and MicroPython, this module allows developers to create rich graphical interfaces using LVGL. The touch-enabled variant supports interactive GUI elements, enabling applications in HMI, IoT dashboards, and smart control systems.

Module size	101.5*54.9(mm)
Effective display area	73.44*48.96(mm)
Operating temperature	-20°C~70°C
storage temperature	-30°C~80°C
Operating Voltage	5V
Power consumption	About 160mA

Development Support: Compatible with Arduino IDE, ESP-IDF, and MicroPython frameworks with LVGL graphical library integration for advanced GUI development.

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

David K.

United States Dec 20.2025

Helpful (1)

The built-in ESP32 makes this display module very convenient for development. The 2.4 inch screen is clear, and the touch response is stable when testing with Arduino IDE. Suitable for IoT and HMI prototype projects.
