2.8-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen

2.8-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen

MOQ: 500 pcs
Price: $11.99-15.99/Piece
Delivery Period: 30 Working days
Payment Method: T/T
Supply Capacity: Up to 5,000 pcs/day
Detail Information
Place of Origin
China
Brand Name
YZY
Certification
CE,RoHS
Model Number
YBC028EGE-Q2(ES3C28P)
Size:
2.8 Inch
Resolution:
240×320 Pixels
Touch Type:
No Touch / Capacitive Touch(Optional)
Applications:
IoT Devices, HMI, Education, Prototyping
Product Description
YBC028EGE-Q2 (ES3C28P) 2.8-inch IPS TFT ESP32 Development Board
The YBC028EGE-Q2 (ES3C28P) is a 2.8-inch ESP32 development board featuring WiFi, Bluetooth, and a 240x320 resolution smart display screen. This advanced module combines powerful processing capabilities with rich peripheral interfaces for IoT and human-computer interaction applications.
Product Overview
ES3C28P and ES3N28P are two 2.8-inch IPS display modules with built-in ESP32-S3 main control. The ES3C28P features FT6336G capacitive touch screen capability, while ES3N28P does not include touch functionality. Both products utilize the LI9341V screen display driver IC with 240x320 resolution and support connection to various peripherals including I2C interface devices, audio speakers, lithium batteries, MicroSD cards, serial ports, and expansion IO devices.
Key Features
  • Equipped with ESP32-S3 for convenient development with extensive resources
  • 2.8-inch color screen with 240x320 resolution, supporting up to 262K colors (RGB666)
  • Rich interfaces for easy connection to various peripherals (I2C, UART, etc.)
  • Supports external speakers for audio playback
  • Built-in microphone for audio reception
  • RGB three-color indicator lights for comprehensive status display
  • Capacitive touch screen for convenient human-machine interaction
  • Standard TYPE-C interface for programming and power supply
  • Micro TF card slot for easy storage expansion
  • Supports external lithium batteries for portable operation
  • Battery charging management circuit for safe charging and discharging
  • Comprehensive example programs for easy learning
  • Technical support for low-level drivers with online WIKI materials
  • Military-grade standards compliance through aging tests and multiple inspections
  • Support for "Xiaozhi" AI voice chat functionality

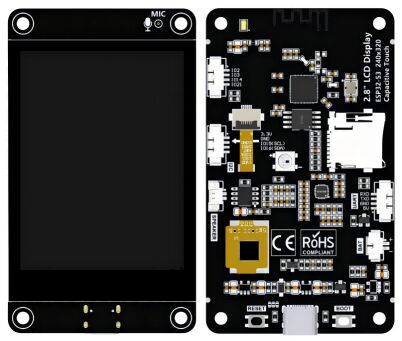

Product Image
2.8-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen 0
Technical Specifications
ESP32 Main Control Parameters
2.8-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen 1
TFT Display Parameters
2.8-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen 2
Touch Screen Parameters
2.8-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen 3
Size Parameters
2.8-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen 4
Battery Charging Parameters
2.8-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen 5
Electrical Parameters
2.8-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen 6
Other Parameters
2.8-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen 7
Product Interface
2.8-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen 8 2.8-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen 9

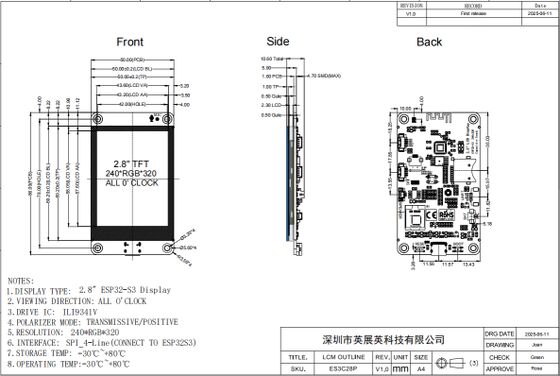

Product Dimensions
2.8-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen 10
Quality Assurance
This module has undergone comprehensive aging tests and multiple inspections to meet military-grade standards, ensuring stable and long-term operation in demanding environments.
