YBR028EGE-Q1 2.8-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen
  • name
  • name
  • name

YBR028EGE-Q1 2.8-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen

MOQ: 500 pcs
Price: $8.5-12.8/Piece
Delivery Period: 30 Working days
Payment Method: T/T
Supply Capacity: Up to 5,000 pcs/day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YZY
Certification
CE,RoHS
Model Number
YBR028EGE-Q1（E32R28T）/YBN028EGE-Q1（E32N28T）
Document
YBR028EGE-Q1（E32R28T） D...et.pdf
Size:
2.8 Inch
Resolution:
240×320 Pixels
Touch Type:
No Touch / Resistive Touch(Optional)
Applications:
IoT Devices, HMI, Education, Prototyping
Highlight:

2.8-inch IPS TFT ESP32 board

,

ESP32 development board with WiFi

,

240x320 resolution smart display screen

Product Description
YBR028EGE-Q1 2.8-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen
Product Overview

The E32R28T and E32N28T are two 2.8-inch display modules featuring ESP32-WROOM-32E main control. The E32R28T includes a resistive touch screen while the E32N28T does not. Both products utilize the ILI9341 screen driver IC with 240x320 resolution and can connect to various peripherals including SPI interface devices, audio speakers, lithium batteries, MicroSD cards, and serial ports. The E32R28T's touch functionality enables extensive DIY capabilities while supporting IoT and human-computer interaction development.

Key Features
  • ESP32-WROOM-32E module with extensive development resources
  • 2.8-inch color screen with 240x320 resolution supporting up to 262K colors (RGB666)
  • Rich interface options for connecting various peripherals (SPI, UART, etc.)
  • External speaker support for audio playback
  • RGB three-color indicator for status display
  • Resistive touch screen for intuitive human-machine interaction
  • Standard TYPE-C interface for programming and power supply
  • Micro TF card slot for storage expansion
  • External lithium battery support for portable applications
  • Battery charging management circuit for safe operation
  • Comprehensive example programs and learning resources
  • Low-level driver technical support with online WIKI updates
  • Military-grade testing standards for long-term stable operation
YBR028EGE-Q1 2.8-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen 0

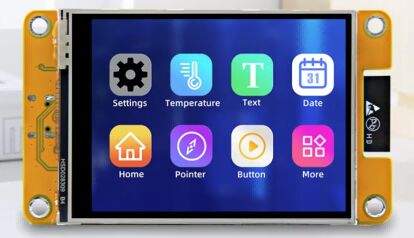

ESP32 2.8 Inch TFT LCD Display Module
YBR028EGE-Q1 2.8-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen 1
Product Front View
ESP32 Main Control Parameters
Item Parameters Unit
Module ESP32-WROOM-32E -
CPU ESP32-D0WD-V3, Xtensa dual core 32-bit LX6 microprocessor -
Frequency 240MHz (Max) -
Memory 48KB ROM + 520KB SRAM + 16KB RTC SRAM + 4MB external QSPI Flash -
WIFI 2.4GHz, 802.11b/g/n modes -
Bluetooth Bluetooth V4.2 BR/EDR and Bluetooth LE standards -
Operating Voltage 3.0~3.6 V
Operating Temperature -40~85 ℃
TFT Display Parameters
Item Parameters Unit
Panel Size 2.8 Inch
Panel Type TN 12 0'CLOCK TFT -
Resolution 240*320 Pixels
Active Area 43.20(W)x57.60(H) mm
Number of Colors Max: 262K (RGB666) Commonly used: 56K (RGB565) -
Driver IC ST7789 -
Display Interface 4-Line SPI (Connect to ESP32) -
View Angle 12'CLOCK -
Brightness (TYP) 260 cd/m²
Operation Temperature -10~50 ℃
Storage Temperature -20~60 ℃
Product Dimensions
YBR028EGE-Q1 2.8-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen 2
Dimension Diagram 1
YBR028EGE-Q1 2.8-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen 3
Dimension Diagram 2
Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

R
robert campbell
United Kingdom Jan 20.2026
trustpilot.com
Helpful (47)
Fit perfectly, an excellent product!
M
Martinez Jao
United Kingdom Dec 24.2025
trustpilot.com
Helpful (36)
The brightness is good. Even under direct sunlight, the display content can still be seen
G
Gary Carr
Ireland Dec 23.2025
trustpilot.com
Helpful (18)
Excellent product, excellent service!
