2.4-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen
  • name
  • name

2.4-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen

MOQ: 500 pcs
Price: $12.99-14.99/Piece
Delivery Period: 30 Working days
Payment Method: T/T
Supply Capacity: Up to 5,000 pcs/day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YZY
Certification
CE,RoHS
Model Number
YBR024EGE-Q1（E32R24P）
Document
YBR024EGE-Q1（E32R24P SPEC....pdf
Size:
2.4 Inch
Resolution:
240×320 Pixels
Touch Type:
No Touch / Resistive Touch(Optional)
Applications:
IoT Devices, HMI, Education, Prototyping
Highlight:

2.4-inch IPS TFT ESP32 development board

,

ESP32 display module with WiFi Bluetooth

,

240x320 resolution smart display screen

Product Description
YBR024EGE-Q1(E32R24P) 2.4-inch ESP32 Development Board
The E32R24P is a 2.4-inch display module equipped with the ESP32-WROOM-32E module as the main control unit. This intelligent display features WiFi and Bluetooth connectivity, IPS TFT technology, touch screen capability, and LVGL support. The product uses the ST7789 display driver IC with a resolution of 240x320 pixels and can connect with various external devices including audio speakers, lithium batteries, MicroSD cards, serial ports, and expansion IO devices.
Key Features
  • ESP32-WROOM-32E module with extensive development resources
  • 2.4-inch color screen with 240x320 resolution supporting up to 262K colors
  • Rich interface options including SPI and UART for peripheral connectivity
  • External speaker support for audio playback
  • RGB three-color indicator for status display
  • Resistive touch screen for easy human-machine interaction
  • Standard TYPE-C interface for programming and power supply
  • External lithium battery support with charging management circuit
  • Comprehensive example programs and technical documentation
  • Military-grade testing standards for long-term stability
  • Micro TF card slot for storage expansion
2.4-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen 0

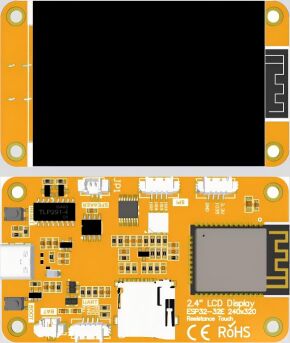

Product Image
2.4-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen 1
ESP32 Main Control Parameters
Item Parameters Unit
Module ESP32-32E -
CPU ESP32-D0WD-V3, Xtensa dual core 32-bit LX6 microprocessor -
Frequency 240MHz (Max) -
Memory 448KB ROM + 520KB SRAM + 16KB RTC SRAM + 4MB external QSPI Flash -
WIFI 2.4GHz, 802.11b/g/n modes -
Bluetooth Bluetooth V4.2 BR/EDR and Bluetooth LE standards -
Operating Voltage 3.0~3.6 V
Operating Temperature -40~85 ℃
TFT Display Parameters
Item Parameters Unit
Panel Size 2.4 Inch
Panel Type IPS TFT -
Resolution 240*320 Pixels
Active Area 36.2(W) x 49(H) mm
Number of Colors Max: 262K (RGB666) Commonly used: 56K (RGB565) -
Driver IC ST7789 -
Display Interface 4-Line SPI (Connect to ESP32) -
View Angle ALL'CLOCK -
Brightness (TYP) 220 cd/m²
Operation Temperature -20~60 ℃
Storage Temperature -30~70 ℃

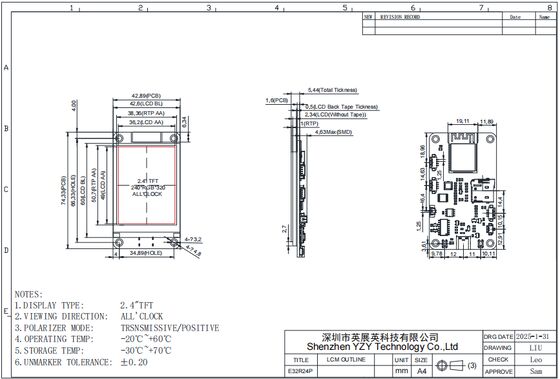

Product Dimensions
2.4-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen 2 2.4-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen 3
