1.1 Inch OLED Display Module with 96x96 Resolution and 4-Wire SPI Interface
  • name
  • name
  • name
  • name
  • name
  • name

1.1 Inch OLED Display Module with 96x96 Resolution and 4-Wire SPI Interface

MOQ: 500 pieces
Price: $2.6/pieces 100-499 pieces
Standard Packaging: 8*8*4
Delivery Period: 14-30 days
Payment Method: T/T
Supply Capacity: 10000Pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
E110XD-W-C10-01
Highlight:

1.1 Inch OLED Display Module

,

96x96 Resolution OLED Display Module

,

4-Wire SPI Interface OLED Display Module

Product Description

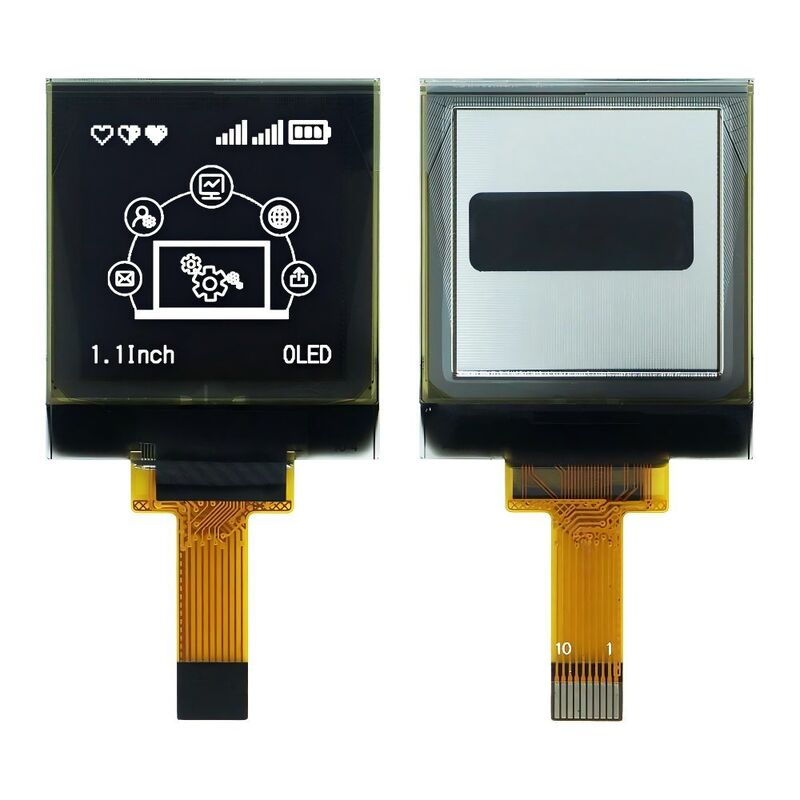

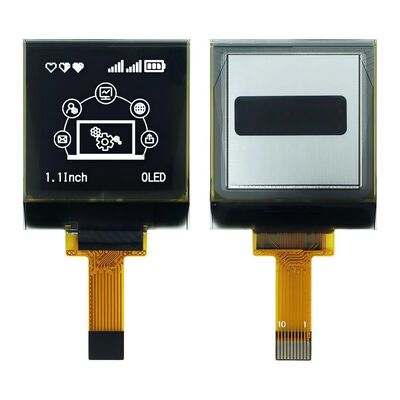

1.1 Inch OLED Display Module with 96x96 Resolution and 4-Wire SPI Interface
This high-performance 1.1-inch OLED module features 96×96 resolution and 4-Wire SPI interface support, offering monochrome white display. Equipped with SH1107 driver IC, COG packaging, 10000:1 ultra-high contrast ratio, and all-direction viewing angles, it delivers clear, sharp visuals with fast response time. With low power consumption, wide operating temperature range (-20℃ to +70℃), and long service life (up to 20,000 hours at 100 cd/m²), it's ideal for portable devices, smart wearables, IoT terminals, industrial controls, and medical instruments.

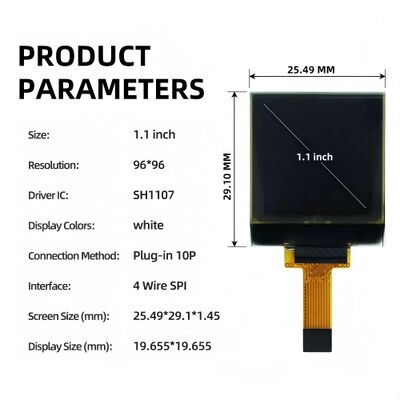

Key Specifications
Product 1.1 inch OLED Module Module Number E110XD-W-C10-01
Resolution 96(H)×96(V) dots Display Color White (Monochrome)
Brightness 80 Cd/m² (Min.), 100 Cd/m² (Typ.) Outline Dimension 25.49(W)×29.1(H)×1.45(T) mm
Viewing Direction All O'Clock Active Area 19.655(W)×19.655(H) mm
Interface 4-Wire SPI Operating Temperature -20 to +70 ℃
Driver IC SH1107 Storage Temperature -30 to +80 ℃
IC Package Type COG (Chip on Glass) Drive Duty 1/96
Pixel Pitch 0.205(W)×0.205(H) mm Contrast Ratio 10000:1 (Dark Room)
Pixel Size 0.18(W)×0.18(H) mm Service Life 20,000 hrs (@100 Cd/m², 50% checkerboard display)
Logic Supply Voltage (VDD) 1.65 to 3.3 V (Typ.) Display Supply Voltage (VCC) 7.0 to 16.5 V (Typ. 15 V)
Product Highlights: 1.1-inch OLED display, 96×96 resolution, 4-Wire SPI interface, SH1107 driver IC, COG packaging, white monochrome display, 10000:1 ultra-high contrast ratio, all-direction viewing angle, wide temperature range (-20~70℃), low power consumption (120~180 mW), fast response time (0.02 ms), long service life (20,000 hours), easy integration with mainstream MCUs
Technical Features

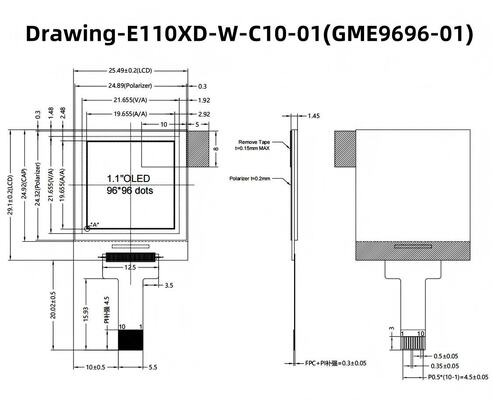

  • COG (Chip on Glass) packaging for compact size (25.49×29.1×1.45mm) and high reliability, perfect for space-constrained devices like smart wearables
  • 4-Wire SPI interface support for stable data transmission, with flexible timing parameters (250~500 ns serial clock cycle based on VDD)
  • Low power consumption: 110~160 μA typical VDD current, 1~1.27 mA typical VCC current, suitable for battery-powered devices
  • Excellent optical performance: 10000:1 dark room contrast ratio, 100 Cd/m² typical brightness, 0.02 ms fast response time, no afterimage
  • Wide operating temperature range (-20℃ to +70℃) adapts to industrial, consumer electronics and semi-harsh environment applications
  • High stability: Withstands storage temperature up to 80℃ (polarizer max 80℃), built-in IREF pin for precise brightness adjustment
  • Strong compatibility: Works with most MCUs, supports standard SPI communication protocols, easy to debug and integrate
  • Compliant with reliability standards: Passes high/low temperature operation, high humidity storage and long-term aging tests
Electrical Specifications
Logic supply voltage (VDD): 1.65~3.3 V; Display supply voltage (VCC): 7.0~16.5 V (Typ. 15 V)
Input high voltage (VIH): ≥0.8×VDD; Input low voltage (VIL): ≤0.2×VDD
Output high voltage (VOH): ≥0.8×VDD; Output low voltage (VOL): ≤0.2×VDD
SPI interface timing (VDD=2.4~3.5V): Clock cycle ≥250 ns, data setup time ≥100 ns, data hold time ≥100 ns
SPI interface timing (VDD=1.65~2.4V): Clock cycle ≥500 ns, data setup time ≥200 ns, data hold time ≥200 ns
Power consumption: 120~180 mW (30% pixels ON, L=100 cd/m²); Frame frequency: 100 Hz (Typ.)

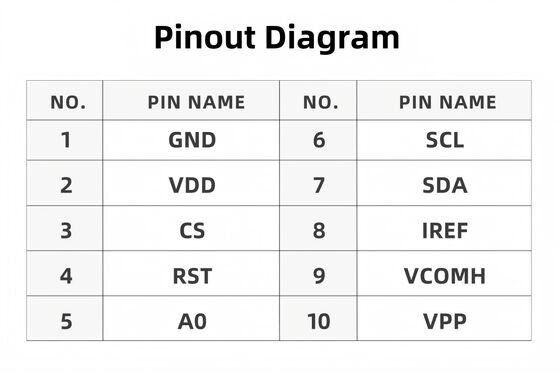

Pin Definition
PIN Symbol Description
1 VSS Ground pin; Reference for all voltage signals, must be connected to external ground
2 VDD Power supply for core logic operation; Voltage range 1.65~3.3 V
3 CS Chip select pin; Active low, used to select the module for SPI communication
4 RST Reset signal input; Pull low to initialize the module, keep high during normal operation
5 A0 Data/Command control pin; High for data transmission, low for command transmission
6 SCL Serial clock pin; Provides clock signal for SPI data synchronization
7 SDA SPI interface input/output pin; Transmits data between module and controller
8 IREF Segment output current reference pin; Connect to resistor for brightness adjustment
9 VCOMH COM signal deselected voltage level pin; Provides high-level voltage for COM signal
10 VCC Power supply for panel driving voltage; Voltage range 7.0~16.5 V
Application Scenarios
  • Smart wearables (smart watches, fitness trackers, sports bracelets)
  • Portable electronic devices (handheld meters, portable detectors, data loggers)
  • IoT terminals and smart sensors (environmental monitors, wireless controllers)
  • Industrial control systems (compact PLC panels, sensor data displays)
  • Medical instruments (portable medical monitors, small diagnostic equipment)
  • Consumer electronics (smart home controllers, small POS machines)
  • Automotive electronics (in-vehicle small displays, secondary control panels)
  • DIY electronics and hobby projects (Arduino/Raspberry Pi compatible displays)
Customization Options
  • FPC Design: Flexible FPC length and pin layout adjustments to match specific system integration requirements
  • Brightness Tuning: Customizable brightness levels (80~150 Cd/m²) based on application scenarios (e.g., outdoor/indoor use)
  • Interface Optimization: SPI clock frequency adjustment and initialization code adaptation for specific MCUs
  • Polarizer Customization: Different polarizer types (wide view, anti-glare) for special viewing environment needs
  • Packaging Solution: Custom anti-static packaging, vacuum packaging with desiccant for long-term storage (over 6 months)
  • Warranty Extension: Extended warranty options (18~24 months) for bulk orders (500+ pcs)
  • Labeling Service: Custom part number or logo printing on FPC for inventory management
Handling Notes
  1. Electrostatic Protection: Use anti-static bracelets and grounded tools during handling. Avoid assembly in dry environments (recommended relative humidity 45%~60%). Do not touch pins, FPC patterns or polarizer directly with bare hands.
  2. Cleaning Instructions: The polarizer surface is fragile and scratch-prone. Clean with soft cotton cloth soaked in petroleum IPA (isopropyl alcohol). Do not use water, ethyl alcohol, ketone or aromatic solvents—they may damage the polarizer.
  3. Storage Conditions: Store in anti-static containers at 23±5℃, humidity ≤45±20%RH. Avoid direct sunlight, high temperature/humidity or low temperature environments. Use modules within 6 months; recheck performance if stored over 12 months.
  4. Operation Precautions: Follow power-on sequence (VDD → RST initialization → A0/CS/SCL/SDA setup → VCC → Display ON) and power-off sequence (Display OFF → VCC OFF → VDD OFF). Do not apply signals when power is off; avoid fixed pattern display for long periods.
  5. Soldering Tips: Welding temperature: 320~350℃; Welding time: ≤10 seconds per pin. Do not stay too long in the same place to avoid FPC damage. Use flux carefully to prevent corrosion of pins.
  6. Mechanical Protection: Do not crush, shake or jolt the module. Do not apply excessive force on the glass panel or bend FPC forcibly (bending radius ≥5 mm).
