YOK242MGI-Q1 2.42inch OLED Module SSD1309 Display with 128x64 Resolution SPI Interface for STM32, C51,Arduino, Raspberry Pi and MSP430 platforms
  • name

YOK242MGI-Q1 2.42inch OLED Module SSD1309 Display with 128x64 Resolution SPI Interface for STM32, C51,Arduino, Raspberry Pi and MSP430 platforms

MOQ: 500 pieces
Price: $8.5-9.5/pieces
Standard Packaging: 12*4*2
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YOK242MGI-Q1（MC242GX）
Highlight:

2.42inch OLED display module SSD1309

,

128x64 resolution OLED module SPI

,

OLED display module for Arduino Raspberry Pi

Product Description
YOK242MGI-Q1 2.42inch OLED Module SSD1309 Display with 128x64 Resolution SPI Interface for STM32, C51,Arduino, Raspberry Pi and MSP430  platforms

MSP242X is a 2.42-inch OLED monochrome display module equipped with three monochrome displays:white, yellow, and blue.The display module is compatible with the SPI interface and IIC interface,with the SPI interface requiring at least 5 IOs for display and the IIC interface requiring at least 4 IOs for display. With a resolution of 128x64, it can be applied to various products that require high brightness, high contrast, and low-power screen display functions.

Product Features

  • 2.42” OLED monochrome screen, equipped with three monochrome displays: white, yellow, and blue
  • 128x64 resolution, clear display effect, high contrast
  • Large viewing angle: greater than 160 °(the screen with the largest viewing angle in the display screen)
  • Wide voltage power supply (3V~5V), compatible with 3.3V and 5V logic levels, without the need for level conversion chips
  • By default, 4-wire SPI serial bus is used, supporting switching to IIC bus
  • Equipped with an iron frame, it can effectively protect the display screen
  • Ultra low power consumption (much lower than TFT display screen)
  • Provide rich example learning programs (ESP32/STM32/ Arduino/C51/CH32/RaspberryPi)
  • Provide low-level driver technical support, and update WIKI information online
  • Multiple tests for module aging can meet military level standards, supporting long-term stable work
Product Parameters

Display Screen Parameters

Item

Parameters

Unit

Panel Size

2.42

inch

Panel Type

OLED

-

Resolution

128x64

pixels

Active Area

55.01(W)x27.49(H)

mm

Display Color

White/Blue/Yellow(Monochrome)

-

Driver IC

SSD1309

-

Display Interface

IIC

-

Pixel Size

0.43(H)x0 .43(V)

mm

View Angle

ALL 0’ CLOCK

deg

Brightness(TYP)

110

cd/m2

Operation Temperature

-40~70

℃

Storage Temperature

-40~85

℃


Size Parameters


Item

Parameters

Unit

OLED Outline Size

60.5±0.2(W)x37.0±0.2(H)x2.0±0.1(D)( Excluding cables and adhesive backing)

mm

Module Outline Size

72.0(W)x43 .0(H)x12 .39(D) (including Pin Header)

mm


Electrical Parameters


Item

Parameters

Unit

Working Voltage

5.0/3.3V

V

Working Current

52(Max)

mA

Power

0.26(Max)

W

Other Parameters


Item

Parameters

Unit

SKU

MC242GW (White)/MC242GB(Blue)/MC242GY (Yellow)

-

Interface

5Pin 2.54mm Header(RES defaults to not welding)

-

Weight(including package)

23

g

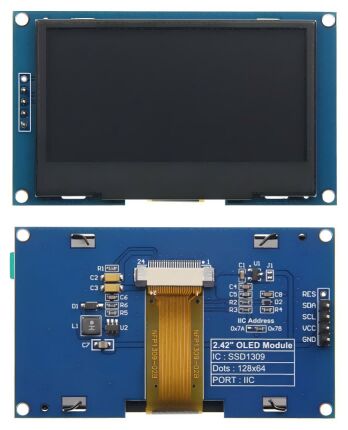

Product Images
 YOK242MGI-Q1 2.42inch OLED Module SSD1309 Display with 128x64 Resolution SPI Interface for STM32, C51,Arduino, Raspberry Pi and MSP430 platforms 0

PRODUCT INTERFACE

YOK242MGI-Q1 2.42inch OLED Module SSD1309 Display with 128x64 Resolution SPI Interface for STM32, C51,Arduino, Raspberry Pi and MSP430 platforms 1

Number

Interface

Function Description

①

5 Pin Header

2.54mm spacing row pins, module signal input pins(RES defaults to not welding)

②

IIC switches resistance from device address

Solder to 0x78 ,using 0x78 slave device address

Soldered to 0x7A, using 0x7A from device address


Pin Function Description


Module Pin

Pin Function Description

GND

OLED screen power supply ground

VCC

OLED screen power supply positive pole (connected to5V/3.3V)

SCL

IIC bus clock signal

SDA

IIC bus data signal

RES

The pin arrangement is not soldered by default. If the reset function needs to be controlled in the program, it needs to be soldered



Cooperative Partners
YOK242MGI-Q1 2.42inch OLED Module SSD1309 Display with 128x64 Resolution SPI Interface for STM32, C51,Arduino, Raspberry Pi and MSP430 platforms 2
Company Profile
Yingzhan Ying Technology was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company has always been committed to custom services, R&D, sales and after-sales services in the optoelectronic display industry.
The company's products include OLED modules, Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These products are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, financial services and other fields, making it a supplier to many well-known clients worldwide.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
Do you supply samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically 7 working days after payment confirmation.
What is the minimum order quantity?
1 piece minimum order quantity.
What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including Raspberry Pi development boards, LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
What shipping methods do you offer?
DHL and China Post shipping services available.
