1.29 Inch OLED Display Module with 128x64 Resolution and 4-Wire SPI Interface
  • name
  • name
  • name

1.29 Inch OLED Display Module with 128x64 Resolution and 4-Wire SPI Interface

MOQ: 1000 pieces
Price: $2.5/pieces 100-999 pieces
Standard Packaging: 7*6*3
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000Pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
E129LJ-W-C16-01
Highlight:

1.29 inch OLED Display Module

,

128x64 Resolution OLED Module

,

4-Wire SPI Interface SSD1315 Display Module

Product Description

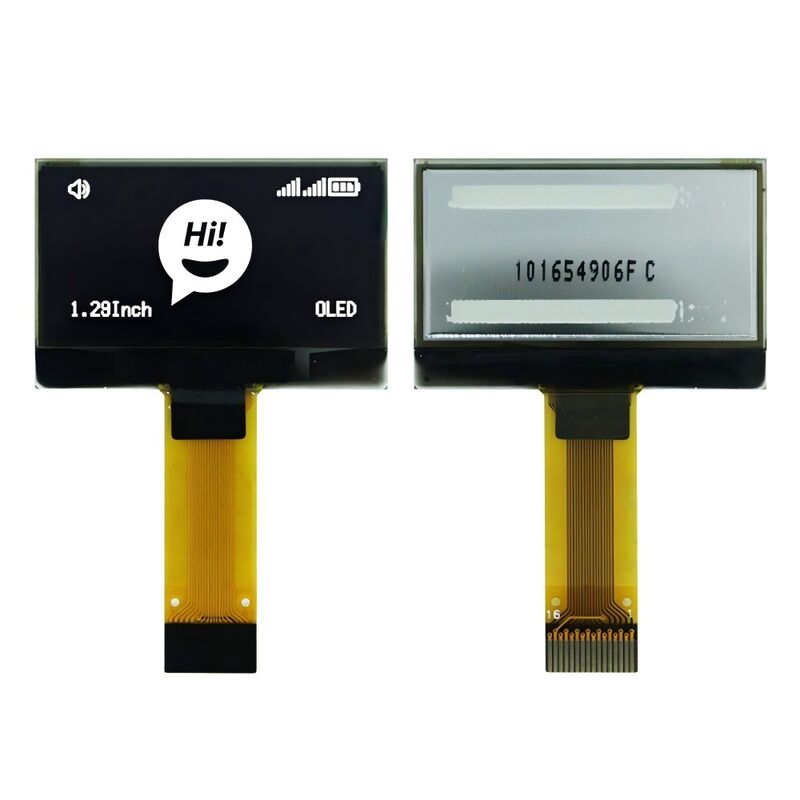

1.29 Inch OLED Display Module with 128x64 Resolution and 4-Wire SPI Interface
The E129LJ-W-C16-01 is a high-performance 1.29-inch OLED module featuring 128×64 resolution and 4-Wire SPI interface support. This monochrome white display delivers clear, sharp text and graphics with 110 Cd/m² typical brightness, 2000:1 dark room contrast, and all-direction viewing angles, ideal for diverse application scenarios.

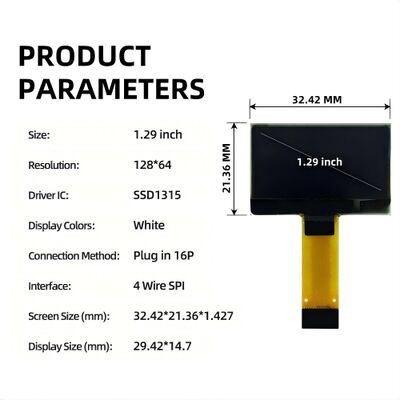

Key Specifications
Product 1.29 Inch OLED Module Module Number E129LJ-W-C16-01
Resolution 128(H)×64(V) dots Display Color White (Monochrome)
Brightness 90 Cd/m² (Min., Internal DC/DC), 120 Cd/m² (Min., External VCC), 110 Cd/m² (Typ.) Outline Dimensions 32.42(W)×21.36(H)×1.427(T)mm

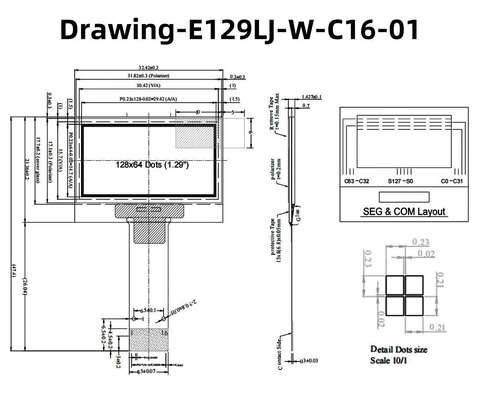

Viewing Direction All O'Clock Active Area 21.74(W)×11.175(H)mm
Interface 4-Wire SPI Operating Temperature -20 ~ +70 ℃
Driver IC SSD1315 Storage Temperature -30 ~ +80 ℃
IC Package Type COG (Chip on Glass) Drive Duty 1/64
Pixel Pitch 0.23(W)×0.23(H)mm RoHS Compliance YES
Product Highlights: 1.29-inch OLED, 128×64 resolution, 4-Wire SPI interface, SSD1315 driver, COG packaging, 2000:1 contrast ratio, wide temperature range (-20~70℃), RoHS compliant, 50,000 hours MTBF
Technical Features
  • COG (Chip on Glass) packaging for compact size and high reliability, minimizing integration failures
  • 4-Wire SPI interface for stable high-speed data transmission, compatible with mainstream MCUs
  • Low power consumption: 160μA typical VDD current, 625μA typical VCC current
  • Excellent optical performance: 2000:1 dark room contrast, natural white color (CIE x:0.25-0.33, y:0.27-0.35)
  • Wide operating temperature range (-20℃ to +70℃) adapts to harsh industrial and outdoor environments
  • Long service life: Up to 32,000 hours at 60 Cd/m² brightness, 10,000 hours at 120 Cd/m²
  • RoHS compliant, meeting international environmental protection standards
  • All-direction viewing angle for consistent display quality from any perspective
Electrical Specifications
Logic supply voltage (VDD): 1.65V to 3.5V
Display supply voltage (VCC): 7.2V to 16.5V at 25℃
SPI interface: Maximum clock frequency 10MHz (minimum clock cycle 100ns)
Input high voltage (VIN): 0.8×VDD; Input low voltage (VIL): ≤0.2×VDD
Output high voltage (VOH): ≥0.9×VDD; Output low voltage (VOL): ≤0.1×VDD
Pin Definition
PIN Symbol Description
1 C2P Charge pump capacitor pin; connect with C2N (PIN2) via capacitor
2 C2N Charge pump capacitor pin; connect with C2P (PIN1) via capacitor
3 C1P Charge pump capacitor pin; connect with C1N (PIN4) via capacitor
4 C1N Charge pump capacitor pin; connect with C1P (PIN3) via capacitor
5 VBAT Power supply for DC/DC converter circuit
6 VSS Ground pin; must be connected to external ground
7 VDD Power supply pin for core logic operation (1.65V~3.5V)
8 CS Chip select pin (low level enable)
9 RESET Reset signal input; pull LOW for initialization, keep HIGH during normal operation
10 D/C Data/Command control pin connecting to MCU
11 SCL Serial clock pin (SPI interface)
12 SDA Serial data input/output pin (SPI interface)
13 IREF Segment current reference pin; connect to VSS via resistor for current stabilization
14 VCOMH COM signal deselected voltage level; connect to VSS via capacitor
15 VCC Panel driving voltage supply pin; connect to VSS via capacitor when charge pump is enabled
16 VSS Ground pin; must be connected to external ground
1.29 Inch OLED Display Module with 128x64 Resolution and 4-Wire SPI Interface 0

Application Scenarios
  • Industrial control equipment (PLC panels, sensor data monitors, compact controllers)
  • Portable instruments (handheld meters, data loggers, portable detection devices)
  • Smart sensor interfaces (environmental sensors, motion sensors, IoT devices)
  • Consumer electronics (smart home controllers, portable gadgets, small POS machines)
  • DIY electronics and hobby projects requiring reliable small-screen displays
Customization Options
  • FPC Design: Flexible FPC layout and connector type adjustments to fit system integration
  • Brightness Tuning: Customizable brightness levels (90~200 Cd/m²) based on application needs
  • Polarizer Customization: Different polarizer types and thicknesses for specific viewing angle requirements
  • Packaging Solution: Customized tray or vacuum packaging for safe transportation and storage
  • Warranty Extension: Extended warranty options available for bulk orders
Handling Notes
Use proper electrostatic protection (anti-static bracelets, grounded tools) when handling. The polarizer is fragile--clean only with soft cloth soaked in petroleum IPA, avoid dry cloth or chemical solvents. Welding temperature: 320~350℃, welding time ≤10s to prevent FPC damage. Store in dark, anti-static containers at 23±5℃ and humidity ≤45±20%RH. Use modules within 6 months of receipt for best performance; recheck if stored over 12 months.
