0.49”OLED Display Module with 64x32 Resolution and I2C Interface
  • name
  • name
  • name

0.49”OLED Display Module with 64x32 Resolution and I2C Interface

MOQ: 1000 pieces
Price: $0.9~2.5/pieces
Standard Packaging: 5*5*3
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 Pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
E049XJ-W-C14-02
Highlight:

0.49-inch OLED Display Module

,

64x32 Resolution OLED Module

,

I2C Interface OLED Display

Product Description
0.49" OLED Display Module with 64x32 Resolution and I2C Interface
This ultra-compact 0.49-inch OLED module features 64×32 resolution and supports I2C interface, offering monochrome white display. Equipped with SSD1315 driver IC, it delivers 2000:1 high contrast and 160~180 cd/m² brightness for clear visuals. With wide temperature range (-40℃ to +85℃), low power consumption, and RoHS compliance, it's ideal for micro IoT devices, mini smart wearables, portable detectors, and space-constrained electronic projects.

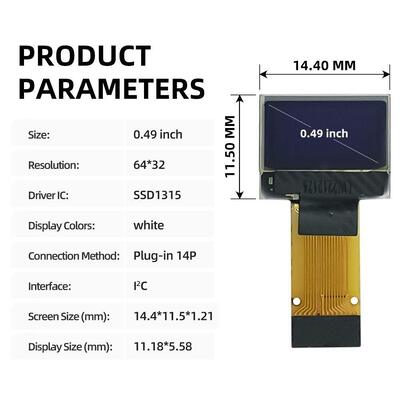

Key Specifications
Product 0.49 inch OLED Module Module Number E049XJ-W-C14-02
Resolution 64(H)×32(V) dots Display Color White (Monochrome)
Panel Size (W×H×T) 14.4 × 11.5 × 1.21 mm Active Area (A.A) 11.18 × 5.58 mm
Pixel Pitch 0.175 × 0.175 mm Pixel Size 0.155 × 0.155 mm
Interface I2C (IIC) Driver IC SSD1315
Operating Temperature -40 to +85 ℃ Storage Temperature -40 to +85 ℃
Brightness (Typ.) 180 cd/m² Contrast Ratio 2000:1 (Dark Room)
Drive Duty 1/32 Duty RoHS Compliance YES
Product Highlights
0.49-inch ultra-compact OLED, 64x32 resolution, I2C interface, SSD1315 driver IC, 2000:1 high contrast, -40~85℃ wide temp, low power, RoHS compliant, easy integration with Arduino/Raspberry Pi
Technical Features
  • Ultra-compact design (14.4×11.5mm) perfect for space-constrained microelectronic devices and mini wearables
  • I2C interface enables simple wiring and stable communication, reducing integration complexity for small projects
  • Wide operating temperature range (-40℃ to +85℃) adapts to extreme industrial and outdoor environments
  • 2000:1 high contrast ratio and 180 cd/m² brightness deliver clear, sharp visuals in various lighting conditions
  • Low power consumption (180~300μA VDD current) ideal for battery-powered portable and wearable devices
  • SSD1315 driver IC ensures reliable performance, with support for internal/external VCC supply modes
  • Long service life (up to 50,000 hours at 60 cd/m²) for durable use in long-term operation scenarios
  • RoHS compliant, meeting international environmental standards for global market distribution
Electrical Specifications
Logic Power Supply (VDD): 1.65~3.3V (Typ. 2.8V)
Display Power Supply (VCC): 7~9V (External) / 7~7.5V (Internal DC/DC)
DC/DC Power Supply (VBAT): 3.5~4.2V (Internal DC/DC enable)
Operating Current: 180~300μA (VDD), 5~15mA (VCC/VBAT)
Sleep Mode Current: 1~5μA (VDD), 2~10μA (VCC)
Pin Definition
PIN Symbol Description
1 C2P Positive Terminal of Flying Boost Capacitor; For internal DC/DC converter, connect to capacitor
2 C2N Negative Terminal of Flying Boost Capacitor; For internal DC/DC converter, connect to capacitor
3 C1P Positive Terminal of Flying Inverting Capacitor; For internal DC/DC converter, connect to capacitor
4 C1N Negative Terminal of Flying Inverting Capacitor; For internal DC/DC converter, connect to capacitor
5 VBAT Power Supply for DC/DC Converter; Connect to external source when converter is used, tie to VDD when not used
6 NC No Connection; Reserved pin, no external connection required
7 VSS Logic Circuit Ground; Reference for all voltage signals, must be connected to external ground
8 VDD Logic Power Supply; 1.65~3.3V, must be connected to external source
9 RES# Reset Signal Input; Pull low to initialize, keep high during normal operation
10 SCL I2C Bus Clock Signal; Synchronizes data transmission for I2C communication
11 SDA I2C Bus Data Signal; Bidirectional data channel between module and controller
12 IREF Brightness Adjustment Reference; Connect resistor to VSS to set display current (max 12.5μA)
13 VCOMH COM Signal High Level; Connect capacitor to VSS for signal stabilization
14 VCC OEL Panel Power Supply; External 7~9V or internal 7~7.5V (DC/DC enable)
Application Scenarios
  • Mini smart wearables (micro fitness trackers, ultra-compact smart watches, health monitors)
  • IoT terminals (wireless sensor nodes, micro environmental monitors, small smart home controllers)
  • Portable electronic devices (handheld meters, mini detectors, data loggers, portable testers)
  • Industrial control systems (compact PLC panels, micro sensor displays, mini industrial controllers)
  • Consumer electronics (miniature remote controls, portable audio players, small POS devices)
  • Automotive electronics (in-vehicle micro displays, secondary control panels, tire pressure monitors)
  • DIY electronics projects (Arduino/Raspberry Pi compatible micro displays, electronic prototypes)
  • Medical devices (portable micro monitors, small diagnostic equipment, health testing tools)
Customization Options
  • Interface Optimization: I2C address adjustment and communication parameter customization for specific MCUs
  • Brightness Tuning: Customizable brightness levels (160~180 cd/m²) for indoor/outdoor application needs
  • Polarizer Customization: Anti-glare, wide-view polarizer options for special viewing environments
  • Packaging Solution: Custom anti-static packaging, vacuum packaging with desiccant for long-term storage
  • Warranty Extension: Extended warranty options (18~24 months) for bulk orders (500+ pcs)
  • Labeling Service: Custom part number or logo printing for inventory management
Handling Notes
  1. Electrostatic Protection: Use anti-static bracelets and grounded tools during handling. Avoid assembly in dry environments (recommended relative humidity 45%~60%). Do not touch pins, FPC patterns or polarizer directly with bare hands.
  2. Cleaning Instructions: The polarizer surface is fragile and scratch-prone. Clean with adhesive tape (Scotch Mending Tape No. 810 or equivalent). Do not use water, alcohol, ketone or aromatic solvents.
  3. Storage Conditions: Store in anti-static bags at 23±5℃, humidity ≤60%RH. Avoid direct sunlight, high temperature/humidity or low temperature environments. Remove protective film before assembly.
  4. Operation Precautions: Follow correct power-on (VDD -> Initialization -> VCC -> Display On) and power-off sequences. Do not apply signals when power is off; avoid fixed pattern display for long periods.
  5. Soldering Tips: Welding temperature: 320~350℃; Welding time: ≤10 seconds per pin. Do not over-bend FPC (bending radius ≥5 mm) to prevent damage.
  6. Mechanical Protection: Do not crush, shake or jolt the module. The panel is glass-based, avoid mechanical impacts or pressure on the display surface.

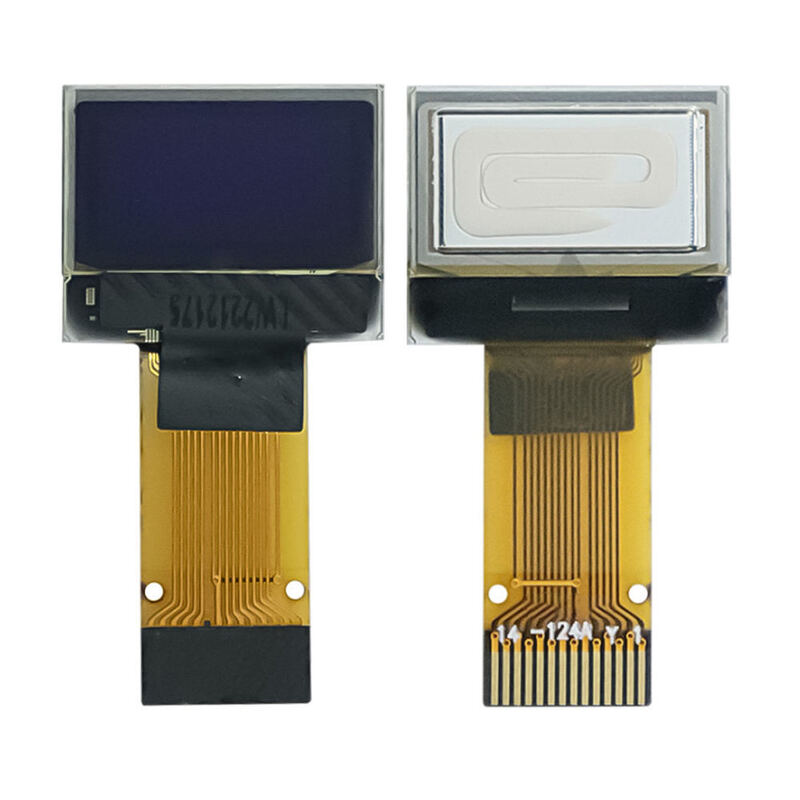

Product Images
0.49”OLED Display Module with 64x32 Resolution and I2C Interface 0
0.49”OLED Display Module with 64x32 Resolution and I2C Interface 1
0.49”OLED Display Module with 64x32 Resolution and I2C Interface 2
Our Factory
0.49”OLED Display Module with 64x32 Resolution and I2C Interface 3
Shipment & Payment
0.49”OLED Display Module with 64x32 Resolution and I2C Interface 4
Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

M
Martinez Jao
United Kingdom Dec 24.2025
trustpilot.com
Helpful (36)
The brightness is good. Even under direct sunlight, the display content can still be seen
G
Gary Carr
Ireland Dec 23.2025
trustpilot.com
Helpful (18)
Excellent product, excellent service!
D
David K.
United States Dec 20.2025
Helpful (1)
The built-in ESP32 makes this display module very convenient for development. The 2.4 inch screen is clear, and the touch response is stable when testing with Arduino IDE. Suitable for IoT and HMI prototype projects.
