0.78" OLED Display Module with 80x128 Resolution and 4-Wire SPI Interface

MOQ: 1000 pieces
Price: $1.99~2.99/pieces
Standard Packaging: 6*6*3
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 Pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
GME80128-01
Highlight:

0.78-inch OLED Display Module

,

80x128 Resolution OLED Module

,

4-Wire SPI/I2C Interface Display Module

Product Description
0.78" OLED Display Module with 80x128 Resolution and 4-Wire SPI Interface
This high-performance 0.78-inch OLED module features 80x128 resolution and supports 4-wire SPI/I2C dual interface, offering monochrome white display. Equipped with SH1107 driver IC, it delivers clear, sharp visuals with excellent stability and low power consumption. With a wide operating temperature range (-30℃ to +80℃) and RoHS compliance, it's ideal for portable devices, IoT terminals, smart wearables, industrial controls, and various small electronic products requiring ultra-compact display solutions.

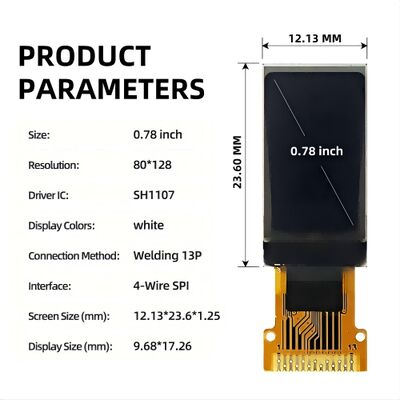

Key Specifications
Display Type 0.78 inch OLED Module Number GME80128-01
Resolution 80(H)×128(V) dots Color White
Panel Size (W×H×T) 23.6±0.15 mm × 12.13±0.15 mm (Custom Thickness) Active Area (A.A) 9.68 mm × 17.26 mm
Polarizer Thickness 0.2 mm Polarizer Size 19.86±0.3 mm × 11.63±0.3 mm
Interface 4-wire SPI/I2C Operating Temperature -30℃+80℃
Driver IC SH1107 Storage Temperature -40℃+85℃
RoHS Compliance YES Unspecified Tolerance ±0.3 mm
Product Highlights
  • 0.78-inch compact OLED display with 80×128 resolution
  • 4-wire SPI/I2C dual interface compatibility
  • SH1107 driver IC for reliable performance
  • White monochrome display with high contrast ratio
  • Wide temperature range (-30~80℃)
  • Low power consumption
  • COG package design
  • RoHS compliant
  • Easy integration with 3M#1318B glue for stable installation
  • Suitable for space-constrained electronic devices
Technical Features
  • Dual 4-wire SPI/I2C interface support for flexible wiring and stable data transmission
  • Compact 0.78-inch size with 80×128 resolution for clear text and simple graphics
  • Wide operating temperature range (-30℃ to +80℃) for extreme environments
  • SH1107 driver IC ensures reliable performance and low power consumption
  • High-quality polarizer (0.2mm thickness) for enhanced clarity and light transmittance
  • 3M#1318B adhesive (10X8X0.05mm) for secure installation and vibration resistance
  • Strict tolerance control (±0.3mm) for consistent product dimensions
  • Free viewing angle design for readability from multiple directions
  • RoHS compliant for international environmental standards
Electrical Specifications
Power Supply Pins: VDD (Power Supply), VSS (Ground), VCOMH (COM Signal High Level), VPP (Auxiliary Power)
Data Transmission Pins: CS (Chip Select), RES (Reset), DC (Data/Command), D0/D1 (Data Pins) for SPI/I2C communication
Reference Current Pin: IREF (Current Reference for Brightness Adjustment), IM1 (Interface Mode Selection)
Tape Requirement: Remove tape with maximum thickness 0.15mm to avoid affecting display performance
Pin Definition
PIN NO. Symbol Description
1 NC Reserve Pin (No Connection)
2 VPP Auxiliary Power Supply for Driver Circuit
3 VCOMH Volume Output High Level for COM Signal
4 VDD Main Power Supply for Logic and Display Circuit
5 IM1 Interface Mode Selection Pin (SPI/I2C Switch)
6 IREF Current Reference for Brightness Adjustment
7 CS Chip Select Pin (Active Low for SPI Interface)
8 RES Reset Pin (Low Level Activates Reset)
9 DC Data/Command Selection Pin (High=Data, Low=Command)
10 D0 SPI Serial Data Input / I2C Clock Signal
11 D1 SPI Serial Clock Input / I2C Data Signal
12 VSS Ground of Logic and Display Circuit; Reference for all voltage signals
13 NC Reserve Pin (No Connection)
Application Scenarios
  • Smart wearables (fitness trackers, sports bracelets, health monitors, smart watches)
  • Portable electronic devices (handheld meters, detectors, data loggers, scanners, audio players)
  • IoT terminals and smart sensors (environmental monitors, wireless controllers, smart home sensors)
  • Industrial control systems (PLC panels, sensor displays, equipment status indicators)
  • Small consumer electronics (remote controls, POS machines, calculators, electronic dictionaries)
  • Automotive electronics (in-vehicle displays, control panels, tire pressure monitors)
  • Medical devices (portable monitors, diagnostic equipment, health testing tools)
  • DIY electronics and hobby projects (Arduino/Raspberry Pi compatible displays)
  • Space-constrained devices (microcontrollers, embedded systems, communication devices)
Customization Options
  • Interface Optimization: SPI/I2C communication parameter customization and address adjustment
  • PCB Customization: PCB size, shape and pin layout adjustments
  • Polarizer Customization: Anti-glare, wide-view polarizer options for outdoor use
  • Glue Specification: Custom glue type, size and thickness for assembly requirements
  • Packaging Solution: Custom anti-static packaging, vacuum packaging with desiccant
  • Warranty Extension: Extended warranty options (18~24 months) for bulk orders
  • Labeling Service: Custom part number or logo printing on PCB
  • Tolerance Adjustment: Precision tolerance control customization
Handling Notes
Electrostatic Protection: Use anti-static bracelets and grounded tools. Avoid assembly in dry environments (recommended relative humidity 45%~60%). Do not touch pins, PCB patterns or polarizer directly with bare hands.
Tape Removal: Remove the protective tape (maximum thickness 0.15mm) before installation.
Storage Conditions: Store in anti-static bags at 23±5℃, humidity ≤45±20%RH. Use within 6 months.
Operation Precautions: Follow correct power-on/power-off sequences. Avoid fixed pattern display for long periods.
Soldering Tips: Control soldering temperature and time to avoid PCB damage.
Mechanical Protection: Do not crush, shake or jolt the module. Avoid mechanical impacts.
Glue Application: Ensure correct application of 3M#1318B glue for stable installation.
Power Supply: Do not exceed absolute maximum ratings. Install overcurrent protection.

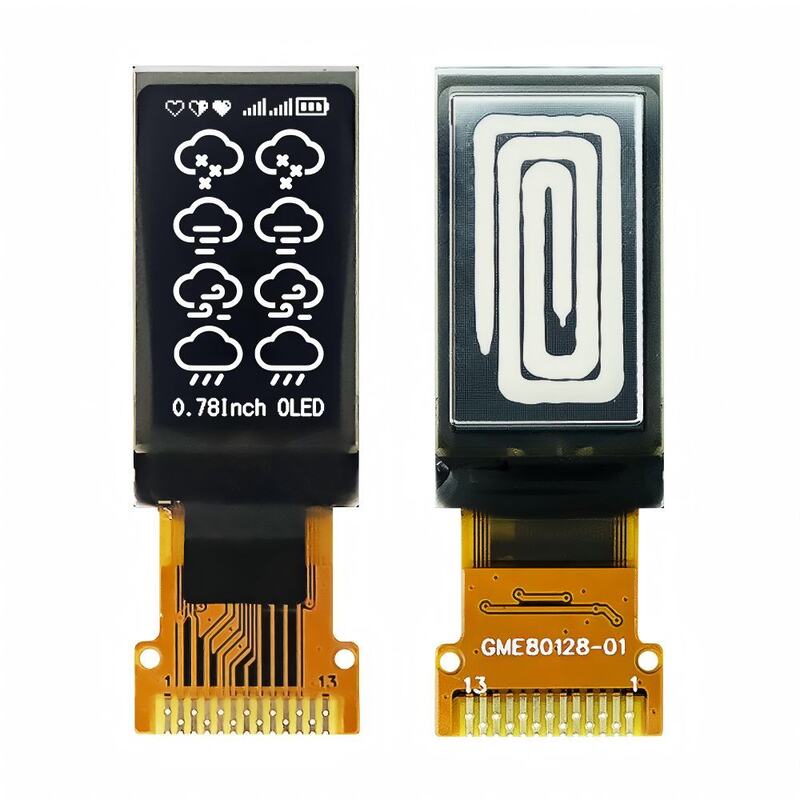

Product Images
0.78" OLED Display Module with 80x128 Resolution and 4-Wire SPI Interface 0 0.78" OLED Display Module with 80x128 Resolution and 4-Wire SPI Interface 1
Production Process
0.78" OLED Display Module with 80x128 Resolution and 4-Wire SPI Interface 2
Shipment & Payment
0.78" OLED Display Module with 80x128 Resolution and 4-Wire SPI Interface 3
