GME6432-06 0.49 Inch 64x32 Dot Matrix OLED Display Module with SSD1315 Driver
  • name
  • name
  • name

GME6432-06 0.49 Inch 64x32 Dot Matrix OLED Display Module with SSD1315 Driver

MOQ: 5 pieces
Price: $1.05~1.75/pieces
Standard Packaging: 12*4*2
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YOK0049GCI-J1
Highlight:

0.49 Inch OLED Display Module

,

64x32 Dot Matrix OLED Module

,

I2C 4-Pin SSD1315 OLED Module

Product Description

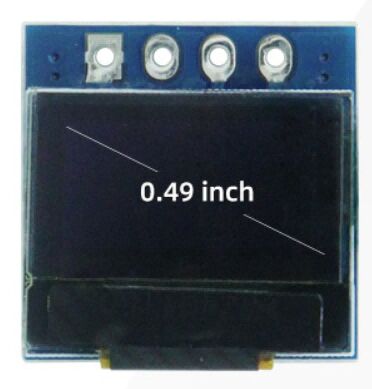

GME6432-06 0.49 Inch 64x32 Dot Matrix OLED Module with SSD1315 Driver

GME6432-06 0.49 Inch 64*32 Dot Matrix OLED Module SSD1315 I2C 4-Pin 3.3~5V

GME6432-06 YOK0049GCI-J1 is a 0.49-inch monochrome (white) OLED module developed by Shenzhen Yingzhanying Technology Co.,Ltd. It features SSD1315 driver IC, supports 64*32 dot matrix resolution and I2C serial interface (4-pin: GND, VCC, SCK, SDA). With input voltage of 3.3~5V, compact outline dimension of 15.0*16.0*11.3mm (Max), and unspecified tolerance of ±0.1mm, it offers low power consumption (typical operating current for logic: 180μA) and wide operating temperature range of -40℃~+85℃. Widely compatible with Arduino, Raspberry Pi, STM32 and other platforms, suitable for embedded display scenarios like portable electronics and industrial control.

Product Specifications
Display TypeMonochrome (White) Positive OLED Module
Model NumberYOK0049GCI-J1
Part NumberGME6432-06
Resolution64 * 32 Dots
Module ModelGME6432-06; YOK0049GCI-J1
Driver ICSSD1315
Input Voltage3.3~5V DC
Logic Supply Voltage (VDD)1.65V (Min) ~ 3.3V (Max); Typ: 2.8V
Display Supply Voltage (VCC)7.0V (Min) ~ 9.0V (Max) (External DC/DC Disable); 7.0V (Min) ~ 7.5V (Max) (Internal DC/DC Enable, Typ:7.25V)
DC/DC Supply Voltage (VBAT)3.5V (Min) ~ 4.2V (Max) (Internal DC/DC Enable)
Operating Current (VDD)Typ: 180μA; Max: 300μA
Operating Current (VCC, External)Typ: 7mA; Max: 13mA (VDD=2.8V, VCC=7.25V, 100% Display On)
Operating Current (VBAT, Internal DC/DC)Typ: 12mA; Max: 17mA (VDD=2.8V, VCC=7.25V, 100% Display On)
Sleep Mode Current (VDD)Typ: 1μA; Max: 5μA
Sleep Mode Current (VCC)Typ: 2μA; Max: 10μA
Interface TypeI2C (Serial Interface)
Pin Number & Function4PIN: 1-GND (Ground), 2-VCC (Power Input), 3-SCK (Clock), 4-SDA (Data)
I2C Clock Cycle Time (tcycle)Min: 2.5μs
Operating Temperature-40℃ ~ +85℃
Storage Temperature-40℃ ~ +85℃
Outline Dimension15.0mm (L) * 16.0mm (W) * 11.3mm (H) (Max)
Active Area11.18mm (L) * 5.58mm (W)
Dot Pitch0.175mm (L) * 0.175mm (W)
Dot Size0.155mm (L) * 0.155mm (W)
Unspecified Tolerance±0.1mm
Product Features
  • 0.49-inch compact size with 64*32 dot matrix resolution, clear monochrome (white) display effect
  • SSD1315 dedicated driver IC, supports internal/external DC/DC power supply, flexible for different power scenarios
  • I2C 4-pin interface design, simple circuit connection, saves IO resources of control platforms
  • Wide input voltage (3.3~5V) and logic voltage (1.65~3.3V), compatible with most embedded systems
  • Ultra-low power consumption: Typical operating current for logic only 180μA, sleep mode current as low as 1μA
  • Extreme wide temperature range (-40℃~+85℃), stable performance in harsh industrial/Outdoor environments
  • Precise mechanical parameters: Outline dimension 15.0*16.0*11.3mm (Max) with ±0.1mm tolerance, easy for assembly
  • Compatible with Arduino, Raspberry Pi, STM32, Pico and other mainstream development platforms
Product Applications
  • Portable measuring instruments (e.g., digital multimeters, thermometers)
  • Embedded system displays (Arduino/Raspberry Pi/STM32 project supporting screens)
  • Industrial control equipment and intelligent operation panels
  • Small handheld smart devices and IoT terminal displays
  • Consumer electronics (e.g., wearable devices, small home appliance control screens)
  • Medical portable equipment (e.g., low-power health monitoring device displays)

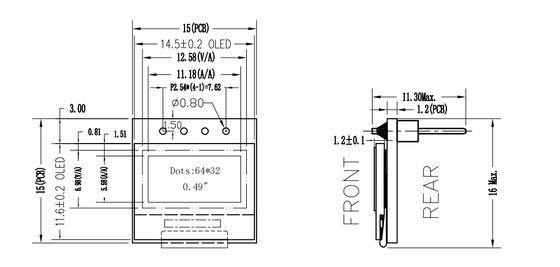

Dimension Drawing
GME6432-06 0.49 Inch 64x32 Dot Matrix OLED Display Module with SSD1315 Driver 0
Product Application
GME6432-06 0.49 Inch 64x32 Dot Matrix OLED Display Module with SSD1315 Driver 1
Cooperative Partner
GME6432-06 0.49 Inch 64x32 Dot Matrix OLED Display Module with SSD1315 Driver 2
Company Profile

Shenzhen Yingzhanying Technology Co.,Ltd is a professional manufacturer focusing on optoelectronic display products. Founded with the predecessor of Shenzhen Shengyuan Optoelectronics Co.,Ltd (established in 2013), the company is committed to R&D, production and sales of OLED modules, LCD modules (LCM), touch modules and FPC boards.

Its flagship products include the GME6432-06 YOK0049GCI-J1 0.49-inch OLED module series, which are widely used in industrial control, medical equipment, handheld devices and automotive electronics. With strict quality control and stable supply capacity, the company has become a trusted supplier for global customers.

Frequently Asked Questions
What platforms is GME6432-06 OLED module compatible with?
It supports Arduino, Raspberry Pi, STM32 and Pico development platforms, and can be driven with U8g2 library (common for OLED displays).
How to choose VCC supply mode (internal/external DC/DC) for this module?
Select based on power design: Internal DC/DC uses VBAT (3.5~4.2V) to generate 7~7.5V VCC; External DC/DC requires direct 7~9V VCC input (refer to Section 4.4 of the module manual for software configuration).
Do you provide samples of GME6432-06 YOK0049GCI-J1?
Yes, samples are available for testing. Contact our sales team to confirm sample quantity and delivery details.
What is the minimum order quantity (MOQ) for this OLED module?
MOQ is 1 piece for sample orders; bulk orders can enjoy preferential prices, and MOQ can be negotiated based on quantity.
How to solve low display brightness or abnormal current?
First check if VCC/VDD voltage meets specs (e.g., VCC=7.25V for typical brightness); if abnormal, confirm DC/DC mode configuration and I2C communication timing (tcycle ≥2.5μA).
What is the delivery time for GME6432-06?
Sample orders: 3~5 working days; bulk orders: 7~10 working days (subject to stock and order quantity).
What shipping methods are available?
DHL, FedEx (for fast delivery) and China Post (for economical delivery) are optional, covering global destinations.
How to handle defective modules received?
Provide order number and photos of defective modules within 7 days of receipt; our team will verify and arrange replacement or refund.
