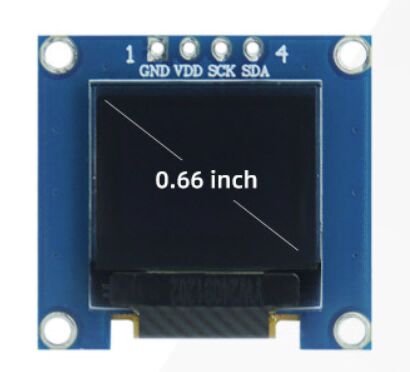

0.66 Inch 64*48 Dot Matrix OLED Module 0.66-4pin SSD1306 I2C 4-Pin 3.3~5V
  • name
  • name
  • name

0.66 Inch 64*48 Dot Matrix OLED Module 0.66-4pin SSD1306 I2C 4-Pin 3.3~5V

MOQ: 5 pieces
Price: $1.1~1.9/pieces
Standard Packaging: 5*5*3
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YOK0049GCI-J1
Highlight:

I2C 4 Pin OLED Module

,

0.66 Inch Dot Matrix OLED Module

,

64*48 Dot Matrix OLED Module

Product Description
0.66 Inch 64x48 Dot Matrix OLED Module SSD1306 COG Design I2C 4-Pin 3.3V
GME066W-47 0.66-inch OLED Module COG SSD1306 I2C Serial Interface This industrial grade 0.66-inch OLED module adopts positive LED mode and advanced COG (Chip On Glass) packaging design, driven by SSD1306 professional driver IC. It features 3.3V operating voltage, 64×48 dot matrix resolution, I2C interface (4-pin: GND, VDD, SCK, SDA), and excellent wide temperature adaptation range (-40~70℃ operating, -40~80℃ storage), with compact outline dimension (27.0×25.9×1.300mm), ultra-low power consumption, stable performance and high reliability, widely applied in industrial control, portable electronics, smart devices, measuring instruments and embedded display systems with strict space and reliability requirements.
Product Specifications
Display Type Positive Monochrome OLED Module
Resolution 64 × 48 Dots
Module Model YOK0066GEB-J1
Part Number GME066W-47
Driver IC SSD1306
Drive Mode 1/48 Duty
Operating Voltage 3.3V DC
Interface Type I2C (IIC, Serial Interface)
Pin Number & Function 4PIN (GND, VDD, SCK, SDA)
Operating Temperature -40℃ ~ +70℃ (Wide Temperature)
Storage Temperature -40℃ ~ +80℃
Connection Type COG (Chip On Glass)
Outline Dimension 27.0mm(L)×25.9mm(W)×1.300mm(t)
Viewing Area (V/A) 15.42mm(L) × 12.06mm(W)
Active Area (A/A) 13.42mm(L) × 10.06mm(W)
Dot Pitch 0.21mm(L) × 0.21mm(W)
Dot Size 0.19mm(L) × 0.19mm(W)
LED Mode Positive
Product Features
  • 0.66-inch compact size with 64×48 dot matrix resolution, clear monochrome display effect and high contrast ratio
  • COG packaging design, 27.0×25.9×1.300mm outline dimension, perfect for space-constrained embedded applications
  • SSD1306 dedicated driver chip, strong anti-interference performance, stable operation and long service life
  • I2C (IIC) serial interface with 4-pin design (GND, VDD, SCK, SDA), simple circuit connection and high compatibility
  • 3.3V fixed operating voltage, stable power supply performance for industrial and consumer electronics scenarios
  • Extreme wide temperature range (-40~70℃ operating, -40~80℃ storage), reliable performance in harsh industrial environments
  • Precise mechanical parameters (0.21mm dot pitch, 0.19mm dot size), ensuring stable assembly and consistent product quality
  • Low power consumption and high reliability, ideal for portable and battery-powered electronic devices
Product Applications
  • Industrial control equipment and intelligent operation panels
  • Portable measuring instruments and precision electronic meters
  • Small handheld smart devices and wearable electronic products
  • Embedded system display modules and IoT terminal devices
  • Automotive electronic auxiliary display components and vehicle-mounted small displays
  • Smart home appliance control panels and mini display screens
  • Medical portable devices and health monitoring equipment
  • Consumer electronics and battery-powered display products

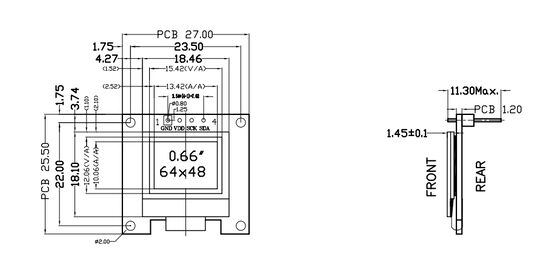

Dimension Drawing
0.66 Inch 64*48 Dot Matrix OLED Module 0.66-4pin SSD1306 I2C 4-Pin 3.3~5V 0
Product Application
0.66 Inch 64*48 Dot Matrix OLED Module 0.66-4pin SSD1306 I2C 4-Pin 3.3~5V 1
Cooperative Partner
0.66 Inch 64*48 Dot Matrix OLED Module 0.66-4pin SSD1306 I2C 4-Pin 3.3~5V 2
Company Profile
Yingzhan Ying Technology was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company has always been committed to custom services, R&D, sales and after-sales services in the optoelectronic display industry.

The company's products include OLED modules, Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These products are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, financial services and other fields, making it a supplier to many well-known clients worldwide.
Frequently Asked Questions
1. How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
2. Do you supply samples?
Yes, we provide samples for evaluation.
3. What is the delivery time?
Typically 7 working days after payment confirmation.
4. What is the minimum order quantity?
1 piece minimum order quantity.
5. What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
6. What are your main products?
Comprehensive range including OLED modules, LCD modules, touch modules, LCD panels, FPC boards and various optoelectronic materials, with a focus on dot matrix display modules for industrial control, medical equipment and smart devices.
7. What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
8. What shipping methods do you offer?
DHL and China Post shipping services available.
