GME013VW-47 1.3" OLED Module 64x128 COG I2C 4-Pin SH1107 3.3V Portrait Screen

MOQ: 5 pieces
Price: $2.1~3.59/pieces
Standard Packaging: 5*5*3
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YOK0130GMB-J1
Highlight:

1.3 inch OLED display module

,

64x128 COG OLED screen

,

SH1107 I2C OLED module

Product Description
GME013VW-47 1.3" OLED Module 64x128 COG I2C 4-Pin SH1107 3.3V Portrait Screen
YOK0130GMB-J1 GME013VW-47 1.3-inch OLED Module COG SH1107 I2C Serial Interface This industrial grade 1.3-inch vertical portrait OLED module adopts advanced COG (Chip On Glass) packaging design, driven by SH1107 professional driver IC with 1/64 Duty driving scheme. It features 3.3V standard operating voltage, 64x128 dot matrix monochrome display, 4-pin I2C interface, ultra-high contrast ratio (>10000:1) and excellent wide temperature adaptation range (-40~70℃ operating, -40~85℃ storage), with compact outline dimension (42x19x11.3mm max thickness), ultra-low power consumption, 10000 hours long service life and high reliability, widely applied in industrial control, portable electronics, smart devices, measuring instruments and embedded display systems with strict space and reliability requirements.
Product Specifications
Display Type Passive Matrix White Monochrome OLED Module (Portrait)
Module Model YOK0130GMB-J1

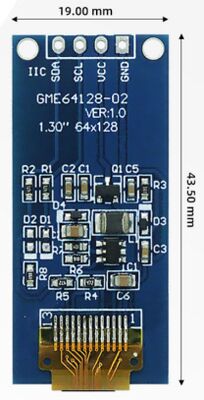

Part Number GME013VW-47 / GME64128-02
Driver IC SH1107
Driving Scheme 1/64 Duty
Operating Voltage (VDD) 3.3V DC (Typ); 1.65~3.5V DC (Range)
Display Voltage (VPP) 12.0V DC (Typ); 7~16.5V DC (Range)
Interface Type I2C (IIC, Serial Interface)

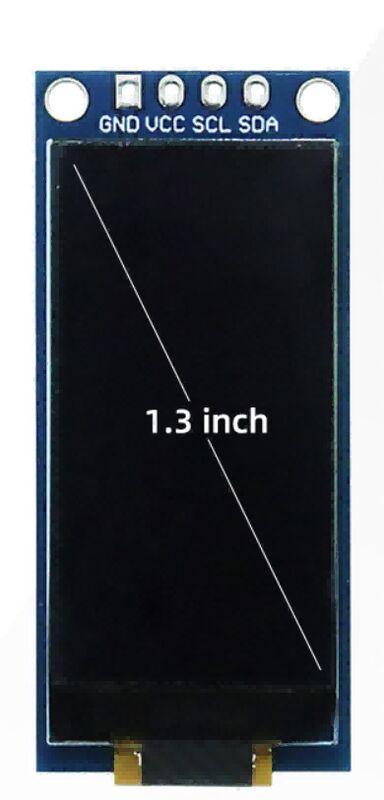

Pin Number & Function 4PIN (1: GND, 2: Vcc, 3: SCL, 4: SDA)
I2C Clock Frequency DC ~ 400 kHz
Operating Temperature -40℃ ~ +70℃ (Wide Temperature)
Storage Temperature -40℃ ~ +85℃
Service Life (150 cd/m²) 10,000 hours (Min)
Connection Type COG (Chip On Glass)
Outline Dimension 42.0mm(L)×19.0mm(W)×11.3mm max(T)
Viewing Area (V/A) 30.02mm(L) × 15.30mm(W)
Active Area (A/A) 29.42mm(L) × 14.70mm(W)
Dot Pitch 0.23mm(W) × 0.23mm(H)
Dot Size 0.21mm(W) × 0.21mm(H)
Brightness 120~160 cd/m² (Typ)
Dark Room Contrast Ratio > 10000:1
Viewing Direction All Directions (Free Viewing Angle)
Sleep Mode Current ≤5 µA (Typ 0.01 µA)
RoHS Compliance Yes
Product Features
  • 1.3-inch vertical portrait design with 64x128 dot matrix white monochrome OLED display, ultra-high contrast ratio (>10000:1) and clear visual effect
  • Advanced COG packaging design, 42.0×19.0×11.3mm compact outline dimension, perfect for space-constrained vertical embedded applications
  • SH1107 dedicated driver chip with 1/64 Duty driving scheme, strong anti-interference performance, stable operation and 10000 hours long service life
  • Standard 4-pin I2C (IIC) serial interface (GND/Vcc/SCL/SDA), simple circuit connection and high compatibility with mainstream controllers
  • 3.3V standard operating voltage (1.65~3.5V range), matching most electronic system power supply, stable power supply performance
  • Extreme wide temperature range (-40~70℃ operating, -40~85℃ storage), reliable performance in harsh industrial and outdoor environments
  • Ultra-low power consumption, sleep mode current as low as 0.01µA, ideal for battery-powered and portable electronic devices
  • 400kHz high-speed I2C interface, fast data transmission, support multiple addressing and display function customization
  • Precise mechanical parameters (0.23mm dot pitch, 0.21mm dot size), ensuring stable assembly and consistent product quality
  • All-direction free viewing angle, 120~160 cd/m² moderate brightness, clear display under various light conditions
  • RoHS compliant, environmental protection, meet international industrial product standards
Product Applications
  • Industrial control equipment and intelligent vertical operation panels
  • Portable measuring instruments, precision electronic meters and handheld testers
  • Small handheld smart devices, wearable electronics and vertical display terminals
  • Embedded system display modules and IoT sensor node vertical displays
  • Automotive electronic auxiliary display components and vehicle-mounted small vertical displays
  • Smart home appliance control panels and mini vertical display screens
  • Medical portable devices, health monitoring equipment and vertical display instruments
  • Consumer electronics, battery-powered display products and digital peripheral equipment
  • Industrial meters, smart wearables and compact embedded display systems

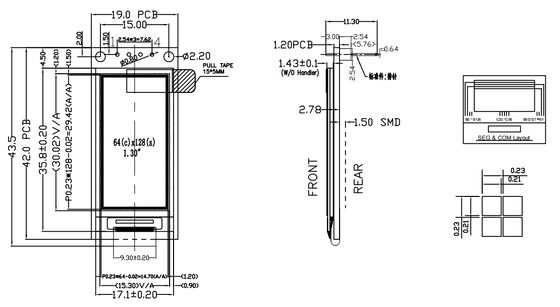

Dimension Drawing
GME013VW-47 1.3" OLED Module 64x128 COG I2C 4-Pin SH1107 3.3V Portrait Screen 0
Product Application
GME013VW-47 1.3" OLED Module 64x128 COG I2C 4-Pin SH1107 3.3V Portrait Screen 1
Cooperative Partner
GME013VW-47 1.3" OLED Module 64x128 COG I2C 4-Pin SH1107 3.3V Portrait Screen 2
Company Profile
Yingzhan Ying Technology was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company has always been committed to custom services, R&D, sales and after-sales services in the optoelectronic display industry.

The company's products include OLED modules, Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These products are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, financial services and other fields, making it a supplier to many well-known clients worldwide.
