1.32 Inch 128x96 Dot Matrix OLED Module SSD1327Z COG Design I2C 4-Pin 3~5V
  • name
  • name
  • name

1.32 Inch 128x96 Dot Matrix OLED Module SSD1327Z COG Design I2C 4-Pin 3~5V

MOQ: 5 pieces
Price: $3.5~5.9/pieces
Standard Packaging: 5*5*3
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YOK0132MKI-J1
Product Description
1.32 Inch 128x96 Dot Matrix OLED Module SSD1327Z COG Design I2C 4-Pin 3~5V
GME132W-4 1.32-inch OLED Module COG SSD1327Z I2C Serial Interface This industrial grade 1.32-inch OLED module adopts advanced COG (Chip On Glass) packaging design, driven by professional SSD1327Z driver IC with 1/128 Duty driving scheme. It features 3V~5V wide range module power supply, 128x96 dot matrix 16 grayscale display, 4-pin I2C interface, 2000:1 high dark room contrast ratio and excellent wide temperature adaptation range (-40~70℃ operating, -40~85℃ storage), with compact outline dimension (34.3mm(L)*38.2mm(W)*11.3mm max thickness), low power consumption, high brightness (90 cd/m² typ) and high reliability, widely applied in industrial control, portable electronics, smart devices, measuring instruments and embedded display systems with strict space and performance requirements.
Product Specifications
Display Type Passive Matrix 16 Grayscale OLED Module (Positive Mode)
Module Model YOK0132MKI-J1
Part Number GME132W-4
Driver IC SSD1327Z
Driving Scheme 1/128 Duty
Module Power Voltage (VCC) 3V~5V DC
OLED Panel Working Voltage (VCI) 2.6V~3.5V DC
OLED Driver Voltage (VOP/VCC) 14.5V~15.5V DC
Interface Type I2C (IIC, Serial Interface)
Pin Number & Function 4PIN (1: GND, 2: NC, 3: SCL/Clock, 4: SDA/Data)
I2C Address 0x7A (Pull-up), 0x78 (Pull-down)
Operating Temperature -40℃ ~ +70℃ (Wide Temperature)
Storage Temperature -40℃ ~ +85℃
Connection Type COG (Chip On Glass)
Outline Dimension 34.3mm(L)×38.2mm(W)×11.3mm max(T)
Viewing Area (V/A) 27.86mm(L) × 21.14mm(W)
Active Area (A/A) 26.86mm(L) × 20.14mm(W)
Dot Pitch 0.21mm(L) × 0.21mm(W)
Dot Size 0.19mm(L) × 0.19mm(W)
Pixel Luminance 70~90 cd/m² (Typ 90 cd/m²)
Dark Room Contrast Ratio 2000:1
Viewing Angle 160 Degree
Response Time 10 μs
Normal Mode Current Consumption 32~34 mA (All pixels on)
Standby Mode Current Consumption 3~4 mA (10% pixels on)
Grayscale Level 16 Grayscale
Frame Rate (Typ) 105Hz
Product Features
  • 1.32-inch 128x96 dot matrix OLED display with 16 grayscale display effect, clear and delicate image for better visual experience
  • Advanced COG packaging design, 34.3×38.2×11.3mm compact outline dimension, perfect for space-constrained embedded applications
  • SSD1327Z dedicated driver chip with 1/128 Duty driving scheme, strong anti-interference performance and stable operation
  • Standard 4-pin I2C (IIC) serial interface (GND/NC/SCL/SDA), simple circuit connection and high compatibility with mainstream controllers
  • 3V~5V wide range module power supply, 2.6~3.5V OLED panel working voltage, matching most electronic system power supply for flexible use
  • Extreme wide temperature range (-40~70℃ operating, -40~85℃ storage), reliable performance in harsh industrial and outdoor environments
  • 2000:1 high dark room contrast ratio, 160° wide viewing angle and 10μs fast response time, clear display under various viewing conditions
  • Dual I2C address optional (0x7A/0x78), support flexible address configuration for multi-device connection scenarios
  • Precise mechanical parameters (0.21mm dot pitch, 0.19mm dot size), ensuring stable assembly and consistent product quality
  • 90 cd/m² typical pixel luminance, moderate brightness with low power consumption, suitable for battery-powered and portable electronic devices
  • Industrial grade reliability, stable performance in long-term operation, ideal for industrial control and professional measuring instruments
Product Applications
  • Industrial control equipment and intelligent operation panels with grayscale display requirements
  • Portable measuring instruments, precision electronic meters and handheld professional testers
  • Small handheld smart devices, industrial handheld terminals and embedded display modules
  • IoT sensor nodes, smart monitoring equipment and industrial data display terminals
  • Automotive electronic auxiliary display components and vehicle-mounted small display screens
  • Smart home appliance control panels and mini display screens with grayscale display
  • Medical portable devices, health monitoring equipment and professional medical display instruments
  • Consumer electronics, battery-powered display products and digital peripheral equipment
  • Industrial meters, smart wearables and compact embedded display systems with wide temperature requirements
  • Professional test and measurement equipment, industrial automation control display terminals

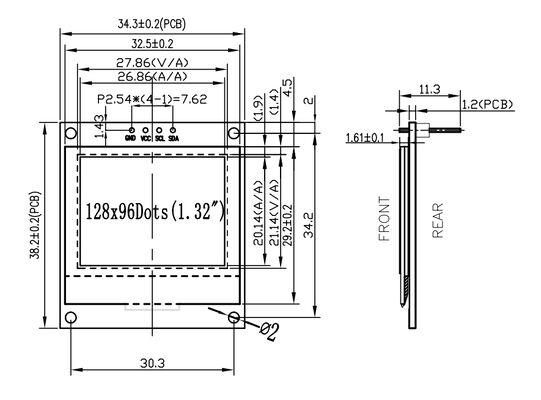

Dimension Drawing
1.32 Inch 128x96 Dot Matrix OLED Module SSD1327Z COG Design I2C 4-Pin 3~5V 0
Product Application
1.32 Inch 128x96 Dot Matrix OLED Module SSD1327Z COG Design I2C 4-Pin 3~5V 1
Cooperative Partner
1.32 Inch 128x96 Dot Matrix OLED Module SSD1327Z COG Design I2C 4-Pin 3~5V 2
Company Profile
Yingzhan Ying Technology was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company has always been committed to custom services, R&D, sales and after-sales services in the optoelectronic display industry.

The company's products include OLED modules, Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These products are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, financial services and other fields, making it a supplier to many well-known clients worldwide.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
Do you supply samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically 7 working days after payment confirmation.
What is the minimum order quantity?
1 piece minimum order quantity.
What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including Raspberry Pi development boards, LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
What shipping methods do you offer?
DHL and China Post shipping services available.
Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
0%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

Y
YB101WSVL-PH01 10.1 Inch IPS HDMI LCD Display with 1024×600 Resolution and Raspberry Pi Compatibility(800+cd/m²；Highlight, sunlight visible )
United Kingdom Dec 24.2025
trustpilot.com
Helpful (36)
The brightness is good. Even under direct sunlight, the display content can still be seen
2
2.4 Inch ESP32 Display Module with 240×320 Pixels TFT LCD and WiFi Bluetooth
United States Dec 20.2025
Helpful (1)
The built-in ESP32 makes this display module very convenient for development. The 2.4 inch screen is clear, and the touch response is stable when testing with Arduino IDE. Suitable for IoT and HMI prototype projects.
1
10.1 Inch IPS HDMI LCD Display with 1024×600 Resolution and Raspberry Pi Compatibility(450/800cd/m² Optional )
United States Dec 14.2025
trustpilot.com
Helpful (15)
very excellent
Tags:

OLED LCD Display Module,

OLED LCD Display,

I2C Interface Display Module

Recommended Products
1.30 Inch 128x64 Dot Matrix OLED Module GME12864 COG Design I2C 4-Pin 1.65~3.3V

1.30 Inch 128x64 Dot Matrix OLED Module GME12864 COG Design I2C 4-Pin 1.65~3.3V

Contact Now
1.1

1.1" 64x128 I2C OLED Module SH1107G Driver IC 4-Pin Monochrome COG Display

Contact Now
128x64 I2C OLED Display Module 0.96

128x64 I2C OLED Display Module 0.96" SSD1306 COG White GME096WBY-B-467

Contact Now
GME096NWBY-B-49 0.96 Inch 128x64 COG OLED Module SSD1315 I2C Interface 3.3V

GME096NWBY-B-49 0.96 Inch 128x64 COG OLED Module SSD1315 I2C Interface 3.3V

Contact Now
0.78 Inch 80x128 Dot Matrix OLED Module SH1107 COG I2C 2-Pin 3.3~5V -40~70℃

0.78 Inch 80x128 Dot Matrix OLED Module SH1107 COG I2C 2-Pin 3.3~5V -40~70℃

Contact Now
0.91 Inch White OLED Passive Matrix Module SSD1306 I2C 3.0V 6 O'clock Viewing

0.91 Inch White OLED Passive Matrix Module SSD1306 I2C 3.0V 6 O'clock Viewing

Contact Now
0.96 Inch 128x64 Resolution COG OLED Display Module with I2C Interface and SH1107 Driver

0.96 Inch 128x64 Resolution COG OLED Display Module with I2C Interface and SH1107 Driver

Contact Now
products
PRODUCTS DETAILS
Products

HDMI LCD Display

TFT LCD Module

Rectangular LCD Display

Round LCD Display

Square LCD Display

Bar Type LCD Display

Industrial Monitor

Portable Monitor

HDMI Driver Board

E Paper Display

Monochrome LCD Display

TFT LCD Touch Screen

Digital Photo Frame

Commercial Display

Laptop LCD Screen

OLED Display Module

ESP32 Display Module
1.32 Inch 128x96 Dot Matrix OLED Module SSD1327Z COG Design I2C 4-Pin 3~5V
  • name
  • name
  • name
1.32 Inch 128x96 Dot Matrix OLED Module SSD1327Z COG Design I2C 4-Pin 3~5V
MOQ: 5 pieces
Price: $3.5~5.9/pieces
Standard Packaging: 5*5*3
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YOK0132MKI-J1
Minimum Order Quantity:
5 pieces
Price:
$3.5~5.9/pieces
Packaging Details:
5*5*3
Delivery Time:
14-60 days
Payment Terms:
T/T
Supply Ability:
10000 pieces
Product Description
1.32 Inch 128x96 Dot Matrix OLED Module SSD1327Z COG Design I2C 4-Pin 3~5V
GME132W-4 1.32-inch OLED Module COG SSD1327Z I2C Serial Interface This industrial grade 1.32-inch OLED module adopts advanced COG (Chip On Glass) packaging design, driven by professional SSD1327Z driver IC with 1/128 Duty driving scheme. It features 3V~5V wide range module power supply, 128x96 dot matrix 16 grayscale display, 4-pin I2C interface, 2000:1 high dark room contrast ratio and excellent wide temperature adaptation range (-40~70℃ operating, -40~85℃ storage), with compact outline dimension (34.3mm(L)*38.2mm(W)*11.3mm max thickness), low power consumption, high brightness (90 cd/m² typ) and high reliability, widely applied in industrial control, portable electronics, smart devices, measuring instruments and embedded display systems with strict space and performance requirements.
Product Specifications
Display Type Passive Matrix 16 Grayscale OLED Module (Positive Mode)
Module Model YOK0132MKI-J1
Part Number GME132W-4
Driver IC SSD1327Z
Driving Scheme 1/128 Duty
Module Power Voltage (VCC) 3V~5V DC
OLED Panel Working Voltage (VCI) 2.6V~3.5V DC
OLED Driver Voltage (VOP/VCC) 14.5V~15.5V DC
Interface Type I2C (IIC, Serial Interface)
Pin Number & Function 4PIN (1: GND, 2: NC, 3: SCL/Clock, 4: SDA/Data)
I2C Address 0x7A (Pull-up), 0x78 (Pull-down)
Operating Temperature -40℃ ~ +70℃ (Wide Temperature)
Storage Temperature -40℃ ~ +85℃
Connection Type COG (Chip On Glass)
Outline Dimension 34.3mm(L)×38.2mm(W)×11.3mm max(T)
Viewing Area (V/A) 27.86mm(L) × 21.14mm(W)
Active Area (A/A) 26.86mm(L) × 20.14mm(W)
Dot Pitch 0.21mm(L) × 0.21mm(W)
Dot Size 0.19mm(L) × 0.19mm(W)
Pixel Luminance 70~90 cd/m² (Typ 90 cd/m²)
Dark Room Contrast Ratio 2000:1
Viewing Angle 160 Degree
Response Time 10 μs
Normal Mode Current Consumption 32~34 mA (All pixels on)
Standby Mode Current Consumption 3~4 mA (10% pixels on)
Grayscale Level 16 Grayscale
Frame Rate (Typ) 105Hz
Product Features
  • 1.32-inch 128x96 dot matrix OLED display with 16 grayscale display effect, clear and delicate image for better visual experience
  • Advanced COG packaging design, 34.3×38.2×11.3mm compact outline dimension, perfect for space-constrained embedded applications
  • SSD1327Z dedicated driver chip with 1/128 Duty driving scheme, strong anti-interference performance and stable operation
  • Standard 4-pin I2C (IIC) serial interface (GND/NC/SCL/SDA), simple circuit connection and high compatibility with mainstream controllers
  • 3V~5V wide range module power supply, 2.6~3.5V OLED panel working voltage, matching most electronic system power supply for flexible use
  • Extreme wide temperature range (-40~70℃ operating, -40~85℃ storage), reliable performance in harsh industrial and outdoor environments
  • 2000:1 high dark room contrast ratio, 160° wide viewing angle and 10μs fast response time, clear display under various viewing conditions
  • Dual I2C address optional (0x7A/0x78), support flexible address configuration for multi-device connection scenarios
  • Precise mechanical parameters (0.21mm dot pitch, 0.19mm dot size), ensuring stable assembly and consistent product quality
  • 90 cd/m² typical pixel luminance, moderate brightness with low power consumption, suitable for battery-powered and portable electronic devices
  • Industrial grade reliability, stable performance in long-term operation, ideal for industrial control and professional measuring instruments
Product Applications
  • Industrial control equipment and intelligent operation panels with grayscale display requirements
  • Portable measuring instruments, precision electronic meters and handheld professional testers
  • Small handheld smart devices, industrial handheld terminals and embedded display modules
  • IoT sensor nodes, smart monitoring equipment and industrial data display terminals
  • Automotive electronic auxiliary display components and vehicle-mounted small display screens
  • Smart home appliance control panels and mini display screens with grayscale display
  • Medical portable devices, health monitoring equipment and professional medical display instruments
  • Consumer electronics, battery-powered display products and digital peripheral equipment
  • Industrial meters, smart wearables and compact embedded display systems with wide temperature requirements
  • Professional test and measurement equipment, industrial automation control display terminals
Dimension Drawing
1.32 Inch 128x96 Dot Matrix OLED Module SSD1327Z COG Design I2C 4-Pin 3~5V 0
Product Application
1.32 Inch 128x96 Dot Matrix OLED Module SSD1327Z COG Design I2C 4-Pin 3~5V 1
Cooperative Partner
1.32 Inch 128x96 Dot Matrix OLED Module SSD1327Z COG Design I2C 4-Pin 3~5V 2
Company Profile
Yingzhan Ying Technology was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company has always been committed to custom services, R&D, sales and after-sales services in the optoelectronic display industry.

The company's products include OLED modules, Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These products are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, financial services and other fields, making it a supplier to many well-known clients worldwide.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
Do you supply samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically 7 working days after payment confirmation.
What is the minimum order quantity?
1 piece minimum order quantity.
What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including Raspberry Pi development boards, LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
What shipping methods do you offer?
DHL and China Post shipping services available.
Tags:

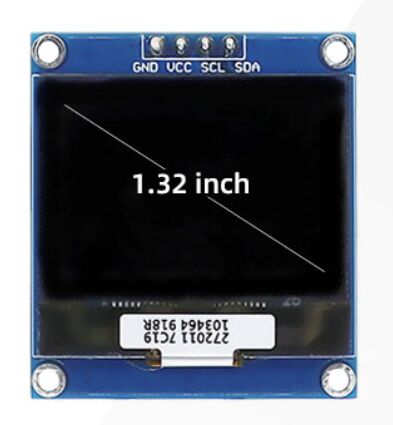

OLED LCD Display Module,

OLED LCD Display,

I2C Interface Display Module

Quick link
Home Products About Us Video News Cases Contact Us
Quick Contact

Address

Room 514, 5th Floor, Block B, Baogang Center, Baoyuan Road, Xixiang Sub-district, Bao 'an District, Shenzhen City

Tel

86-0755-8524744-815

13823537002
Our Newsletter
Subscribe to our newsletter for discounts and more.
Privacy Policy |  sitemap  | China Good Quality HDMI LCD Display Supplier. Copyright © 2025-2026 Shenzhen YZY Technology Co., Ltd . All Rights Reserved.
