10.1 Inch TFT LCD Touch Screen Display Module with 1280x800 Resolution and 10 Point Capacitive Touch
  • name
  • name
  • name

10.1 Inch TFT LCD Touch Screen Display Module with 1280x800 Resolution and 10 Point Capacitive Touch

MOQ: 100 pcs
Price: $47.99-61.99 Piece
Payment Method: ,T/T
Supply Capacity: Up to 1,000 pcs/day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YZY
Certification
CE，RoHS
Model Number
YVT101VLL-A02
Product Description
10.1 Inch TFT LCD Touch Screen 1280x800 LVDS Display Module With 10 Point Capacitive Touch
Product Overview

This 10.1 inch TFT LCD touch screen module features 1280x800 resolution, LVDS display interface, and IIC capacitive touch solution. It supports 10 touch points and utilizes GT9271 touch IC. With full lamination structure, normally black display mode, and wide viewing angle, it is ideal for smart payment devices, industrial terminals, and other embedded touch display applications.

Key Features
  • 10.1 inch TFT LCD touch display with 1280x800 resolution
  • LVDS interface for stable and reliable signal transmission
  • Capacitive touch panel with IIC interface
  • Supports 10-point multi-touch operation
  • Full lamination structure for better display and touch integration
  • Normally black display mode with wide viewing angle
  • High brightness design, typical luminance 800 cd/m²
  • Panda glass cover with high transmittance and durable surface hardness

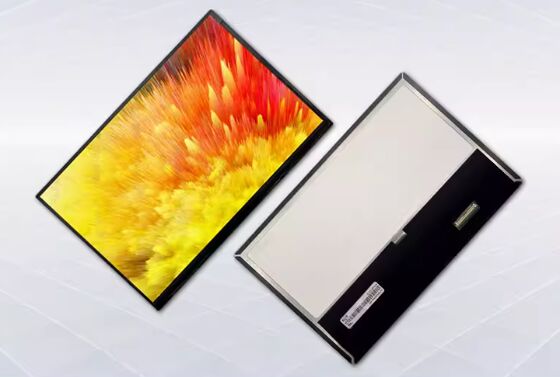

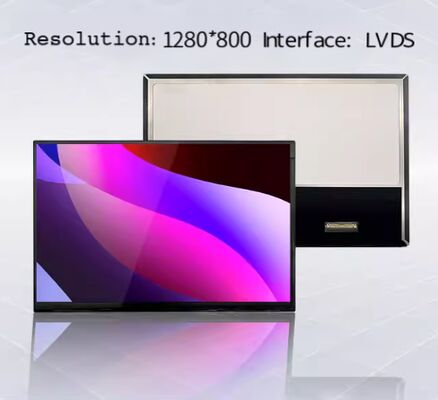

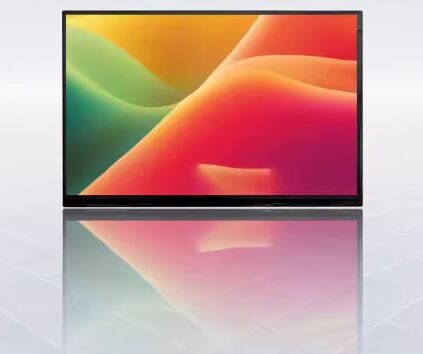

Product Display
10.1 Inch TFT LCD Touch Screen Display Module with 1280x800 Resolution and 10 Point Capacitive Touch 0
Technical Specifications
Screen Size 10.1 Inch
Resolution 1280 * 800
Module Size 249.8 * 157.0 * 6.55 mm
Active Area 216.96 * 135.6 mm
Brightness 800 cd/m²
Support Color 16.7M Colors
Display Interface LVDS
Touch Interface IIC
Touch Type Capacitive Touch / 10 Point Touch
Viewing Angle 80/80/80/80
Operating Temperature -20℃ to 70℃
Storage Temperature -30℃ to 80℃
Application Scenarios
  • POS payment devices
  • Industrial touch control equipment
  • Medical touch display systems
  • Smart home touch panels
  • Interactive embedded terminals
  • Commercial self-service machines
Company Capabilities
10.1 Inch TFT LCD Touch Screen Display Module with 1280x800 Resolution and 10 Point Capacitive Touch 1 10.1 Inch TFT LCD Touch Screen Display Module with 1280x800 Resolution and 10 Point Capacitive Touch 2 10.1 Inch TFT LCD Touch Screen Display Module with 1280x800 Resolution and 10 Point Capacitive Touch 3
  • Extensive Inventory: Over 1,000,000 self-owned stock items including Raspberry Pi boards, LCD monitors, touchscreens, cases, cables, and accessories from leading brands.
  • Competitive Pricing: Significant price advantages to reduce purchasing costs and save valuable time. We wholesale and distribute new, original, well-known brand electronic components worldwide.
  • Quality Assurance: Equipped with internationally advanced electronic component testing equipment and scientific storage systems to ensure consistent product quality.
  • Expert Team: Elite professionals with over 20 years of industry experience and deep understanding of international market trends.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
Do you supply samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically 7 working days after payment confirmation.
What is the minimum order quantity?
1 piece minimum order quantity.
What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including Raspberry Pi development boards, LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
What shipping methods do you offer?
DHL and China Post shipping services available.
Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

M
Martinez Jao
United Kingdom Dec 24.2025
trustpilot.com
Helpful (36)
The brightness is good. Even under direct sunlight, the display content can still be seen
G
Gary Carr
Ireland Dec 23.2025
trustpilot.com
Helpful (18)
Excellent product, excellent service!
D
David K.
United States Dec 20.2025
Helpful (1)
The built-in ESP32 makes this display module very convenient for development. The 2.4 inch screen is clear, and the touch response is stable when testing with Arduino IDE. Suitable for IoT and HMI prototype projects.
