10.36 Inch TFT LCD Touch Screen with 1200x2000 Resolution and 10 Point Touch MIPI Display Module
  • name
  • name
  • name

10.36 Inch TFT LCD Touch Screen with 1200x2000 Resolution and 10 Point Touch MIPI Display Module

MOQ: 100 pcs
Price: $31.99-40.99 Piece
Payment Method: ,T/T
Supply Capacity: Up to 1,000 pcs/day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YZY
Certification
CE，RoHS
Model Number
YVT104TAM-A01
Product Description
10.36 Inch TFT LCD Touch Screen 1200x2000 MIPI Display Module TDDI 10 Point Touch
Product Overview

This 10.36 inch TFT LCD touch display module features 1200x2000 resolution, MIPI interface and TDDI touch solution. It supports 10-point touch with self-capacitance sensing, 16.7M colors, normally black display mode, 1300:1 typical contrast ratio and 260 cd/m² typical luminance. It is suitable for industrial terminals, smart control panels, medical devices and embedded display applications.

Key Features
  • 10.36 inch TFT LCD touch display with 1200x2000 high resolution
  • MIPI interface for fast and stable signal transmission
  • TDDI touch solution for integrated display and touch performance
  • Supports 10-point multi-touch operation
  • Normally black display mode with 16.7M colors
  • Wide viewing angle of 80/80/80/80
  • 1300:1 typical contrast ratio for clear image details
  • Self-capacitance touch technology suitable for smart control applications

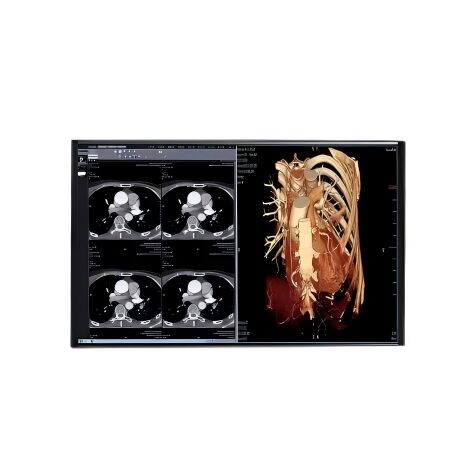

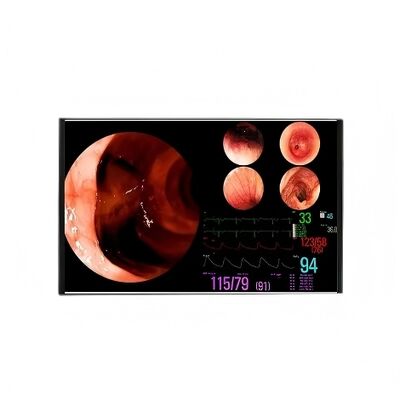

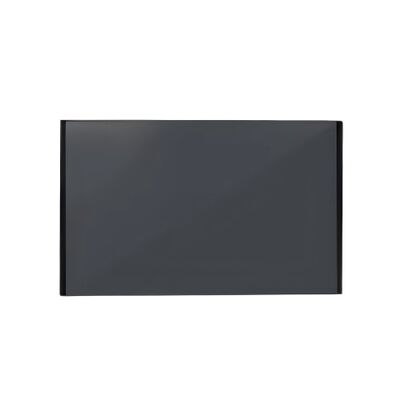

Product Display
10.36 Inch TFT LCD Touch Screen with 1200x2000 Resolution and 10 Point Touch MIPI Display Module 0
Technical Specifications
Screen Size 10.36 Inch
Resolution 1200 × 2000
Module Size 153.22 × 243.46 × 4.6 mm Max
Active Area 135.36 × 225.6 mm
Brightness 260 cd/m²
Support Color 16.7M Colors
Display Interface MIPI
Touch Interface I2C
Touch Type TDDI / Self-Capacitance / 10 Point Touch
Viewing Angle 80/80/80/80
Operating Temperature -10℃ to 50℃
Storage Temperature -20℃ to 60℃
Application Scenarios
  • Industrial control terminals
  • Smart home control panels
  • Medical display devices
  • Embedded touch display systems
  • Portable smart terminals
  • Commercial interactive equipment
Company Capabilities
10.36 Inch TFT LCD Touch Screen with 1200x2000 Resolution and 10 Point Touch MIPI Display Module 1 10.36 Inch TFT LCD Touch Screen with 1200x2000 Resolution and 10 Point Touch MIPI Display Module 2 10.36 Inch TFT LCD Touch Screen with 1200x2000 Resolution and 10 Point Touch MIPI Display Module 3
  • Extensive Inventory: Over 1,000,000 self-owned stock items including Raspberry Pi boards, LCD monitors, touchscreens, cases, cables, and accessories from leading brands.
  • Competitive Pricing: Significant price advantages to reduce purchasing costs and save valuable time. We wholesale and distribute new, original, well-known brand electronic components worldwide.
  • Quality Assurance: Equipped with internationally advanced electronic component testing equipment and scientific storage systems to ensure consistent product quality.
  • Expert Team: Elite professionals with over 20 years of industry experience and deep understanding of international market trends.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
Do you supply samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically 7 working days after payment confirmation.
What is the minimum order quantity?
1 piece minimum order quantity.
What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including Raspberry Pi development boards, LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
What shipping methods do you offer?
DHL and China Post shipping services available.
