YE0130S3‑X1 1.3 Inch EPD Display Module 144×200 Ultra Low Power Electronic Shelf Label Screen
  • name
  • name
  • name
  • name

YE0130S3‑X1 1.3 Inch EPD Display Module 144×200 Ultra Low Power Electronic Shelf Label Screen

MOQ: 5 pieces
Price: $3.39-5.99/pieces
Standard Packaging: 15*18*8
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YE0130S3-X1
Product Description
1.3 Inch 144*200 BWR EPD Module SPI Interface Ultra Low Power Electronic Paper Display
High performance 1.3 inch Active Matrix Electrophoretic Display (AMEPD) module YE0130S3-X1 with 144*200 resolution, 188PPI, black-white-red three-color display, SSD1680 driver IC, 3/4-wire selectable SPI interface and ultra-low power consumption. Designed for electronic shelf label systems, smart tags, IoT devices and embedded applications with bi-stable display, pure reflective mode and wide commercial temperature range.
Product Overview
YE0130S3-X1 is a 1.3-inch active matrix EPD electronic paper display module with 144(H)*200(V) resolution and 188PPI high pixel density. It supports 1-bit BWR full-color display and adopts bi-stable & pure reflective technology for ultra-wide viewing angle and high contrast. Equipped with SSD1680 driver IC, on-chip display RAM, OTP waveform storage, temperature sensor and SPI serial interface (3/4-wire selectable). Operating at 3.0V typical voltage, deep sleep current as low as 3μA, update power consumption 40mAs@25°C. Module dimension 24.69*36.64*1.05mm, weight 1.6±0.2g, with hard-coat antiglare surface. Operating temperature 0~40℃, storage temperature -25~60℃, RoHS compliant, ideal for electronic shelf labels, smart tags and IoT low-power display applications.
Technical Specifications
Part Number YE0130S3-X1 (HINK-E013A02)
Display Type 1.3 Inch Active Matrix Electrophoretic Display (EPD)
Panel Size 1.3 Inch Diagonal
Resolution 144(H) * 200(V) Pixels
PPI 188
Pixel Pitch 0.135 * 0.135 mm
Pixel Configuration Rectangle
Display Color Black / White / Red (BWR)
Active Area 19.44(H) * 27.00(V) mm
Outline Dimension 24.69(H) * 36.64(V) * 1.05(D) mm
Weight 1.6±0.2 g
Surface Treatment Hard coat antiglare surface
Driver IC SSD1680
Interface 3/4-wire SPI selectable
Operating Voltage 2.5V ~ 3.7V (Typ. 3.0V)
Operating Current Typ. 2~3mA (Update)
Deep Sleep Current Max. 3 μA
Update Power 40 mAs @25°C
Contrast Ratio Min. 10
Reflectance Min. 30%
Display Mode Bi-stable, Pure reflective
Operating Temp. 0 ~ 40℃, 45~70%RH
Storage Temp. -25 ~ 60℃, 45~70%RH
Connector 24Pin 0.5mm ZIF Socket
Compliance RoHS Compliant
Key Features
  • 1.3-inch EPD module YE0130S3-X1 with 144*200 resolution and 188PPI for clear image
  • Black-white-red three-color display for retail ESL and smart tag applications
  • Bi-stable & pure reflective mode, zero power for static image display
  • High reflectance, high contrast ratio and ultra-wide viewing angle
  • SSD1680 driver with on-chip RAM, OTP waveform, oscillator and DC-DC
  • 3/4-wire SPI selectable interface for easy MCU integration
  • Built-in temperature sensor with I2C signal for ambient detection
  • Ultra-low power consumption: 3μA deep sleep current, long battery life
  • Compact size 24.69*36.64*1.05mm, lightweight 1.6g for small devices
  • Hard coat antiglare surface for scratch resistance and outdoor readability
  • Wide commercial temperature range 0~40℃ for stable daily operation
  • Supports landscape & portrait display modes for flexible design
  • Passes ESD, temperature cycling, humidity, vibration and drop reliability tests
  • RoHS compliant, meets environmental and export standards
  • 5-year design life under recommended working conditions
Applications
  • Electronic Shelf Label (ESL) system for retail and supermarket
  • Smart price tags and product information display tags
  • IoT wireless sensor nodes and low-power status indicators
  • Asset tracking tags and logistics identification labels
  • Portable handheld terminals and mini intelligent devices
  • Embedded industrial control display and small instrument screens
  • Smart home compact display and battery-powered status panels
  • Wearable electronic devices and lightweight information displays
  • Portable medical devices and low-power health monitors
  • Industrial data loggers and outdoor field display equipment

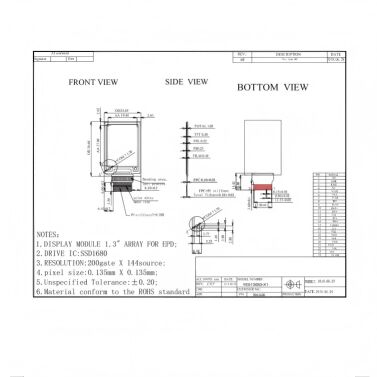

Product Documentation
YE0130S3‑X1 1.3 Inch EPD Display Module 144×200 Ultra Low Power Electronic Shelf Label Screen 0
Pin Definition
YE0130S3‑X1 1.3 Inch EPD Display Module 144×200 Ultra Low Power Electronic Shelf Label Screen 1
Application Scenarios
YE0130S3‑X1 1.3 Inch EPD Display Module 144×200 Ultra Low Power Electronic Shelf Label Screen 2
Partner companies and collaborative projects
YE0130S3‑X1 1.3 Inch EPD Display Module 144×200 Ultra Low Power Electronic Shelf Label Screen 3
Manufacturing facility and quality control environment
YE0130S3‑X1 1.3 Inch EPD Display Module 144×200 Ultra Low Power Electronic Shelf Label Screen 4
Shipping methods and delivery information
Company Profile
Shenzhen Yingzhanying Technology Co., Ltd. (YZY) was founded in January 2018 and is located in Shenzhen, China--a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company specializes in custom services, R&D, sales and after-sales services in the optoelectronic display industry.
Products include Liquid Crystal Display (LCD) modules (LCM), Electrophoretic Display (EPD) electronic paper modules, touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, financial services, retail ESL systems and IoT smart devices.
Frequently Asked Questions
What is the exact model of this 1.3-inch EPD?
The full model is YE0130S3-X1 (also known as HINK-E013A02), with SSD1680 driver IC and 144*200 BWR resolution.
What interface does YE0130S3-X1 support?
It supports 3-wire and 4-wire SPI interface selectable via BS1 pin, compatible with most embedded MCUs.
What is the power consumption of this module?
Update current is 2~3mA, deep sleep current is only 3μA, update power consumption 40mAs@25°C, extremely low power.
Does it have a built-in temperature sensor?
Yes, it supports built-in or external temperature sensor with I2C signal for automatic temperature compensation.
What is the operating and storage temperature range?
Operating: 0~40℃; Storage: -25~60℃, suitable for commercial indoor and general industrial environments.
Do you provide sample orders?
Yes, samples are available for testing and evaluation before mass orders to confirm compatibility and performance.
What is the standard packaging quantity?
32pcs per tray, 12+1 layers per carton, total 384pcs per carton, with anti-static EPE and moisture-proof packaging.
How to maintain the best display effect?
Refresh the screen at least once every 24 hours; avoid long-term use in <45%RH or >70%RH humidity environment.
Is this module RoHS compliant?
Yes, YE0130S3-X1 is fully RoHS compliant and meets global environmental and export requirements.
What is your warranty policy?
We provide 12+1 month warranty and long-term technical support for all EPD modules under normal use conditions.
Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

M
Martinez Jao
United Kingdom Dec 24.2025
trustpilot.com
Helpful (36)
The brightness is good. Even under direct sunlight, the display content can still be seen
G
Gary Carr
Ireland Dec 23.2025
trustpilot.com
Helpful (18)
Excellent product, excellent service!
D
David K.
United States Dec 20.2025
Helpful (1)
The built-in ESP32 makes this display module very convenient for development. The 2.4 inch screen is clear, and the touch response is stable when testing with Arduino IDE. Suitable for IoT and HMI prototype projects.
Tags:

Color E Ink Screen,

E Paper E Ink Display,

Electronic Paper Display

Recommended Products
11.6 Inch Electronic Paper Display 640×960 Black / White / Red 3 Color E Ink Display

11.6 Inch Electronic Paper Display 640×960 Black / White / Red 3 Color E Ink Display

Contact Now
11.6 Inch E Paper Display 960×640 Resolution Black / White 2 Color E Ink Screen

11.6 Inch E Paper Display 960×640 Resolution Black / White 2 Color E Ink Screen

Contact Now
10.2 Inch Electronic Paper Display 640×960 Black / White / Red 3 Color E Ink Screen

10.2 Inch Electronic Paper Display 640×960 Black / White / Red 3 Color E Ink Screen

Contact Now
3.5 Inch E Paper Display 184*384 Resolution 24 Pin Low Power Consumption E Ink Display

3.5 Inch E Paper Display 184*384 Resolution 24 Pin Low Power Consumption E Ink Display

Contact Now
9.7 Inch E Ink Display 960×672 Resolution Black White Red Color E Ink Screen

9.7 Inch E Ink Display 960×672 Resolution Black White Red Color E Ink Screen

Contact Now
4.2 Inch E paper Display 400×300 Resolution Black White Red Yellow 4 Color E Ink Screen

4.2 Inch E paper Display 400×300 Resolution Black White Red Yellow 4 Color E Ink Screen

Contact Now
2.9 Inch E Ink Display 128×296 Resolution 24 Pin Ultra Low Power 2 Color E Ink Screen

2.9 Inch E Ink Display 128×296 Resolution 24 Pin Ultra Low Power 2 Color E Ink Screen

Contact Now
Products
PRODUCTS DETAILS
Products

HDMI LCD Display

TFT LCD Module

Rectangular LCD Display

Round LCD Display

Square LCD Display

Bar Type LCD Display

Industrial Monitor

Portable Monitor

HDMI Driver Board

E Paper Display

Monochrome LCD Display

TFT LCD Touch Screen

Digital Photo Frame

Commercial Display

Laptop LCD Screen

OLED Display Module

ESP32 Display Module
YE0130S3‑X1 1.3 Inch EPD Display Module 144×200 Ultra Low Power Electronic Shelf Label Screen
  • name
  • name
  • name
  • name
YE0130S3‑X1 1.3 Inch EPD Display Module 144×200 Ultra Low Power Electronic Shelf Label Screen
MOQ: 5 pieces
Price: $3.39-5.99/pieces
Standard Packaging: 15*18*8
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YE0130S3-X1
Minimum Order Quantity:
5 pieces
Price:
$3.39-5.99/pieces
Packaging Details:
15*18*8
Delivery Time:
14-60 days
Payment Terms:
T/T
Supply Ability:
10000 pieces
Product Description
1.3 Inch 144*200 BWR EPD Module SPI Interface Ultra Low Power Electronic Paper Display
High performance 1.3 inch Active Matrix Electrophoretic Display (AMEPD) module YE0130S3-X1 with 144*200 resolution, 188PPI, black-white-red three-color display, SSD1680 driver IC, 3/4-wire selectable SPI interface and ultra-low power consumption. Designed for electronic shelf label systems, smart tags, IoT devices and embedded applications with bi-stable display, pure reflective mode and wide commercial temperature range.
Product Overview
YE0130S3-X1 is a 1.3-inch active matrix EPD electronic paper display module with 144(H)*200(V) resolution and 188PPI high pixel density. It supports 1-bit BWR full-color display and adopts bi-stable & pure reflective technology for ultra-wide viewing angle and high contrast. Equipped with SSD1680 driver IC, on-chip display RAM, OTP waveform storage, temperature sensor and SPI serial interface (3/4-wire selectable). Operating at 3.0V typical voltage, deep sleep current as low as 3μA, update power consumption 40mAs@25°C. Module dimension 24.69*36.64*1.05mm, weight 1.6±0.2g, with hard-coat antiglare surface. Operating temperature 0~40℃, storage temperature -25~60℃, RoHS compliant, ideal for electronic shelf labels, smart tags and IoT low-power display applications.
Technical Specifications
Part Number YE0130S3-X1 (HINK-E013A02)
Display Type 1.3 Inch Active Matrix Electrophoretic Display (EPD)
Panel Size 1.3 Inch Diagonal
Resolution 144(H) * 200(V) Pixels
PPI 188
Pixel Pitch 0.135 * 0.135 mm
Pixel Configuration Rectangle
Display Color Black / White / Red (BWR)
Active Area 19.44(H) * 27.00(V) mm
Outline Dimension 24.69(H) * 36.64(V) * 1.05(D) mm
Weight 1.6±0.2 g
Surface Treatment Hard coat antiglare surface
Driver IC SSD1680
Interface 3/4-wire SPI selectable
Operating Voltage 2.5V ~ 3.7V (Typ. 3.0V)
Operating Current Typ. 2~3mA (Update)
Deep Sleep Current Max. 3 μA
Update Power 40 mAs @25°C
Contrast Ratio Min. 10
Reflectance Min. 30%
Display Mode Bi-stable, Pure reflective
Operating Temp. 0 ~ 40℃, 45~70%RH
Storage Temp. -25 ~ 60℃, 45~70%RH
Connector 24Pin 0.5mm ZIF Socket
Compliance RoHS Compliant
Key Features
  • 1.3-inch EPD module YE0130S3-X1 with 144*200 resolution and 188PPI for clear image
  • Black-white-red three-color display for retail ESL and smart tag applications
  • Bi-stable & pure reflective mode, zero power for static image display
  • High reflectance, high contrast ratio and ultra-wide viewing angle
  • SSD1680 driver with on-chip RAM, OTP waveform, oscillator and DC-DC
  • 3/4-wire SPI selectable interface for easy MCU integration
  • Built-in temperature sensor with I2C signal for ambient detection
  • Ultra-low power consumption: 3μA deep sleep current, long battery life
  • Compact size 24.69*36.64*1.05mm, lightweight 1.6g for small devices
  • Hard coat antiglare surface for scratch resistance and outdoor readability
  • Wide commercial temperature range 0~40℃ for stable daily operation
  • Supports landscape & portrait display modes for flexible design
  • Passes ESD, temperature cycling, humidity, vibration and drop reliability tests
  • RoHS compliant, meets environmental and export standards
  • 5-year design life under recommended working conditions
Applications
  • Electronic Shelf Label (ESL) system for retail and supermarket
  • Smart price tags and product information display tags
  • IoT wireless sensor nodes and low-power status indicators
  • Asset tracking tags and logistics identification labels
  • Portable handheld terminals and mini intelligent devices
  • Embedded industrial control display and small instrument screens
  • Smart home compact display and battery-powered status panels
  • Wearable electronic devices and lightweight information displays
  • Portable medical devices and low-power health monitors
  • Industrial data loggers and outdoor field display equipment
Product Documentation
YE0130S3‑X1 1.3 Inch EPD Display Module 144×200 Ultra Low Power Electronic Shelf Label Screen 0
Pin Definition
YE0130S3‑X1 1.3 Inch EPD Display Module 144×200 Ultra Low Power Electronic Shelf Label Screen 1
Application Scenarios
YE0130S3‑X1 1.3 Inch EPD Display Module 144×200 Ultra Low Power Electronic Shelf Label Screen 2
Partner companies and collaborative projects
YE0130S3‑X1 1.3 Inch EPD Display Module 144×200 Ultra Low Power Electronic Shelf Label Screen 3
Manufacturing facility and quality control environment
YE0130S3‑X1 1.3 Inch EPD Display Module 144×200 Ultra Low Power Electronic Shelf Label Screen 4
Shipping methods and delivery information
Company Profile
Shenzhen Yingzhanying Technology Co., Ltd. (YZY) was founded in January 2018 and is located in Shenzhen, China--a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company specializes in custom services, R&D, sales and after-sales services in the optoelectronic display industry.
Products include Liquid Crystal Display (LCD) modules (LCM), Electrophoretic Display (EPD) electronic paper modules, touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, financial services, retail ESL systems and IoT smart devices.
Frequently Asked Questions

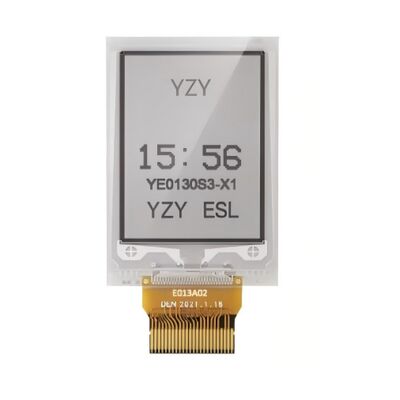

What is the exact model of this 1.3-inch EPD?
The full model is YE0130S3-X1 (also known as HINK-E013A02), with SSD1680 driver IC and 144*200 BWR resolution.
What interface does YE0130S3-X1 support?
It supports 3-wire and 4-wire SPI interface selectable via BS1 pin, compatible with most embedded MCUs.
What is the power consumption of this module?
Update current is 2~3mA, deep sleep current is only 3μA, update power consumption 40mAs@25°C, extremely low power.
Does it have a built-in temperature sensor?
Yes, it supports built-in or external temperature sensor with I2C signal for automatic temperature compensation.
What is the operating and storage temperature range?
Operating: 0~40℃; Storage: -25~60℃, suitable for commercial indoor and general industrial environments.
Do you provide sample orders?
Yes, samples are available for testing and evaluation before mass orders to confirm compatibility and performance.
What is the standard packaging quantity?
32pcs per tray, 12+1 layers per carton, total 384pcs per carton, with anti-static EPE and moisture-proof packaging.
How to maintain the best display effect?
Refresh the screen at least once every 24 hours; avoid long-term use in <45%RH or >70%RH humidity environment.
Is this module RoHS compliant?
Yes, YE0130S3-X1 is fully RoHS compliant and meets global environmental and export requirements.
What is your warranty policy?
We provide 12+1 month warranty and long-term technical support for all EPD modules under normal use conditions.
Tags:

Color E Ink Screen,

E Paper E Ink Display,

Electronic Paper Display

Quick link
Home Products About Us video News Cases Contact Us
Quick Contact

Address

Room 514, 5th Floor, Block B, Baogang Center, Baoyuan Road, Xixiang Sub-district, Bao 'an District, Shenzhen City

Tel

86-0755-8524744-815

13823537002
Our Newsletter
Subscribe to our newsletter for discounts and more.
Privacy Policy |  Sitemap  | China Good Quality HDMI LCD Display Supplier. Copyright © 2025-2026 Shenzhen YZY Technology Co., Ltd . All Rights Reserved.
