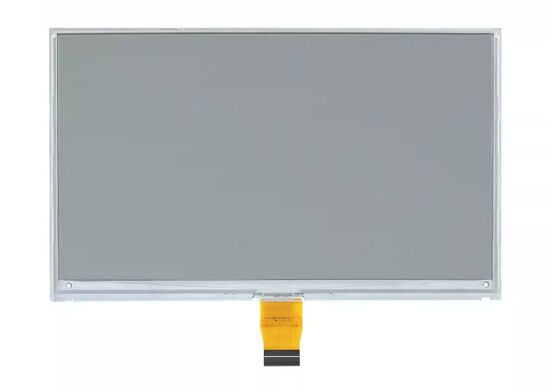

7.5" E-Paper Display YE0750S4-X1 Ultra Low Power Bi-Stable for Electronic Shelf Label

MOQ: 5 pieces
Price: $30.59-37.99/pieces
Standard Packaging: 25*20*8
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YE0750S4-X1
Product Description
7.5 Inch 800x480 EPD Module SPI Interface Black White Red Yellow Ultra Low Power Electronic Paper Display YE0750S4-X1
High performance 7.5 inch Active Matrix Electrophoretic Display (AMEPD) module YE0750S4-X1 with 800×480 resolution, 124PPI, black / white / red / yellow four-color display, JD79665 driver IC, 3/4-wire SPI interface and ultra-low power consumption. Designed for electronic shelf label system, retail display solutions and embedded system applications with bi-stable display, wide viewing angle and commercial temperature range.
Product Overview
YE0750S4-X1 is a 7.5-inch four-color EPD electronic paper display module adopting Active Matrix Electrophoretic Display technology, providing 480(H)×800(V) resolution with 124PPI and 0.204×0.204mm pixel pitch for clear and stable image performance. It supports black, white, red and yellow full display capabilities with pure reflective bi-stable mode, high contrast, high reflectance and ultra-wide viewing angle. Equipped with JD79665 driver IC, on-chip display RAM, internal temperature sensor, OTP waveform storage, low voltage detection and DC-DC booster. It features 3/4-wire selectable SPI interface, 2.4V–3.6V operating voltage, deep sleep current down to 3μA and update power consumption of 800mAs@25℃. With ultra-thin 0.9mm thickness, outline dimension 170.2×111.2mm, light weight 31g, hard coat antiglare surface, 0~40℃ operating temperature and -25~50℃ storage temperature, this module is RoHS2.0+HF+REACH compliant and ideal for large electronic shelf label, retail signage, information display and low-power devices with 5-year design life.
Technical Specifications
Part Number YE0750S4-X1
Display Type 7.5 Inch Active Matrix Electrophoretic Display EPD Module
Panel Size 7.5 Inch Diagonal
Resolution 480(H) × 800(V) Pixels
PPI 124 Pixels Per Inch
Pixel Pitch 0.204 × 0.204 mm
Pixel Configuration Rectangle
Display Capability Black / White / Red / Yellow Four-Color Display
Active Area 163.2(H) × 97.92(V) mm
Outline Dimensions 170.2(H) × 111.2(V) × 0.9(D) mm
Weight 31±0.2 g
Surface Treatment Hard coat antiglare display surface
Driver IC JD79665
Interface Type SPI 3-wire / 4-wire selectable serial interface
Operating Voltage 2.4V ~ 3.6V (Typ. 3.0V)
Operating Current Typ. 3 mA (Update)
Deep Sleep Current Max. 3 μA (VCI=3.3V)
Panel Update Power Consumption Max. 800 mAs @25℃
Contrast Ratio Min. 10
Reflectance Typ. 35% (White state)
Viewing Angle Ultra wide viewing angle
Operating Temperature 0 ~ 40℃, 45~70 %RH
Storage Temperature -25 ~ 50℃, 45~70 %RH
Display Mode Bi-stable display, pure reflective mode
On-chip Features Display RAM, temperature sensor, OTP waveform, oscillator, DC-DC, voltage detection
Design Life 5 years (25℃/60%RH operation)
Connector 24Pin 0.5mm ZIF Socket
Compliance RoHS2.0+HF+REACH Compliant
Key Features
  • 7.5-inch AMEPD electronic paper module YE0750S4-X1 with 480×800 resolution and 124PPI
  • Black / White / Red / Yellow four-color bi-stable display with zero power for static images
  • High reflectance up to 35%, contrast ratio 10:1 and ultra-wide viewing angle for excellent readability
  • Built-in JD79665 driver with on-chip RAM, OTP waveform storage and temperature sensor
  • 3-wire & 4-wire SPI selectable interface for flexible embedded system connection
  • Supports I2C for internal and external temperature sensing and compensation
  • 2.4V–3.6V wide operating voltage, 3μA sleep current and low update power
  • Ultra-thin 0.9mm profile and large display area for retail and industrial applications
  • Light weight 31g suitable for wall-mounted and battery powered equipment
  • Hard coat antiglare surface for scratch resistance and outdoor readability
  • On-chip oscillator, DC-DC booster and voltage regulator reduce peripheral components
  • Wide commercial temperature range 0~40℃ for stable daily operation
  • Supports landscape and portrait display modes
  • Passes high/low temperature, high humidity, temperature cycle, ESD and UV tests
  • RoHS2.0+HF+REACH compliant, meets global environmental standards
Applications
  • Electronic Shelf Label (ESL) system for supermarkets, hypermarkets and retail chains
  • Large format smart price tags and product information display boards
  • Retail advertising signage and promotional information display
  • Industrial control panels and factory status monitoring displays
  • Office information boards and meeting room status indicators
  • Embedded systems and large interface industrial displays
  • Smart home central control panels and status displays
  • Medical equipment and healthcare monitoring devices
  • Portable information terminals and battery powered display units
  • Warehouse logistics and asset management identification displays

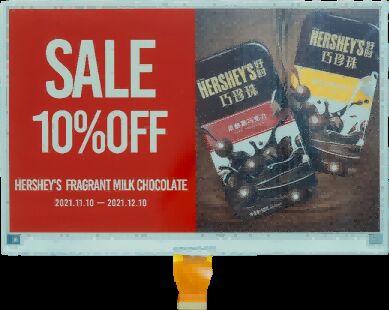

Product Documentation
7.5" E-Paper Display YE0750S4-X1 Ultra Low Power Bi-Stable for Electronic Shelf Label 0
Product Drawing
7.5" E-Paper Display YE0750S4-X1 Ultra Low Power Bi-Stable for Electronic Shelf Label 1
Application Scenarios
7.5" E-Paper Display YE0750S4-X1 Ultra Low Power Bi-Stable for Electronic Shelf Label 2
Partner companies and collaborative projects
7.5" E-Paper Display YE0750S4-X1 Ultra Low Power Bi-Stable for Electronic Shelf Label 3
Manufacturing facility and quality control environment
7.5" E-Paper Display YE0750S4-X1 Ultra Low Power Bi-Stable for Electronic Shelf Label 4
Shipping methods and delivery information
Company Profile
Shenzhen Yingzhanying Technology Co., Ltd. (YZY) was founded in January 2018 and is located in Shenzhen, China--a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company specializes in custom services, R&D, sales and after-sales services in the optoelectronic display industry.
Products include Liquid Crystal Display (LCD) modules (LCM), Electrophoretic Display (EPD) electronic paper modules, touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, financial services, retail ESL systems and IoT smart devices.
Frequently Asked Questions
What is the exact model of this 7.5-inch four-color EPD?
The full model is YE0750S4-X1, with JD79665 driver IC and 480×800 black-white-red-yellow resolution.
What colors does YE0750S4-X1 support?
It supports Black / White / Red / Yellow four-color full display, ideal for ESL and color status indication.
What interface does this module support?
It supports 3-wire SPI and 4-wire SPI interface selectable by BS1 pin, compatible with most embedded MCUs.
What is the power consumption of YE0750S4-X1?
Update power consumption is 800mAs@25℃, deep sleep current is only 3μA, very suitable for long-term battery powered devices.
Does it have a built-in temperature sensor?
Yes, it integrates internal temperature sensor and supports I2C external sensor for automatic temperature compensation.
What is the operating and storage temperature range?
Operating: 0~40℃; Storage: -25~50℃, suitable for commercial indoor and general industrial environments.
Do you provide sample orders?
Yes, samples are available for testing and evaluation before mass orders to confirm compatibility and performance.
What is the standard packaging quantity?
Standard packaging: 12 trays with products + 1 empty tray per carton, with EPE cushioning for safe transportation.
How to maintain the best display effect?
Refresh the screen at least once every 24 hours; avoid long-term use above 35℃ environment.
Is this module RoHS compliant?
Yes, YE0750S4-X1 is fully RoHS2.0+HF+REACH compliant and meets global environmental and export requirements.
What is your warranty policy?
We provide 12+1 month warranty and long-term technical support for all EPD modules under normal use conditions.
