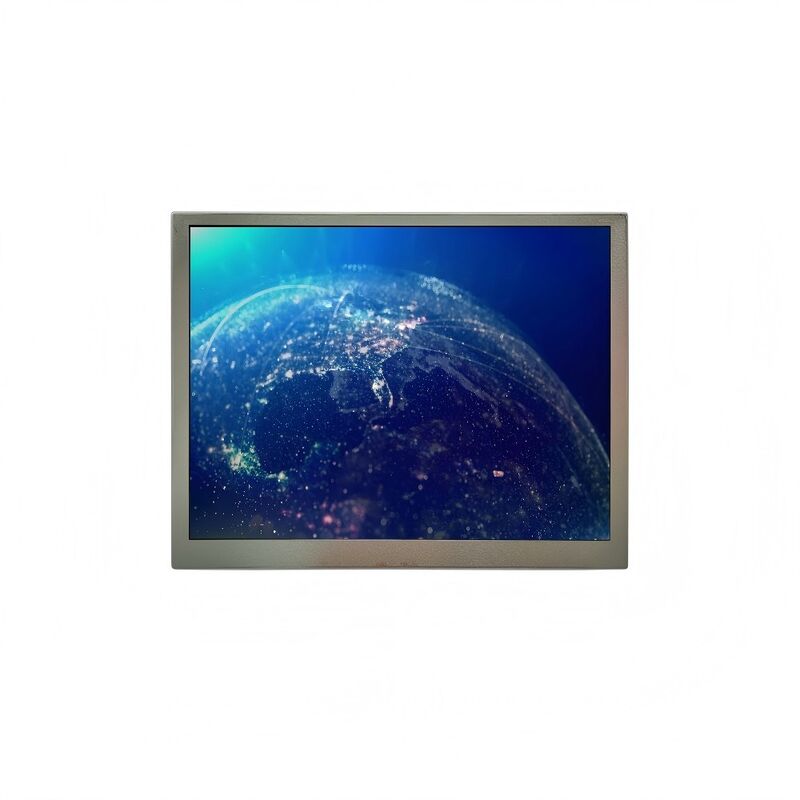

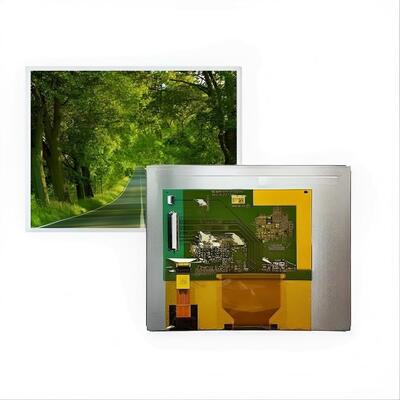

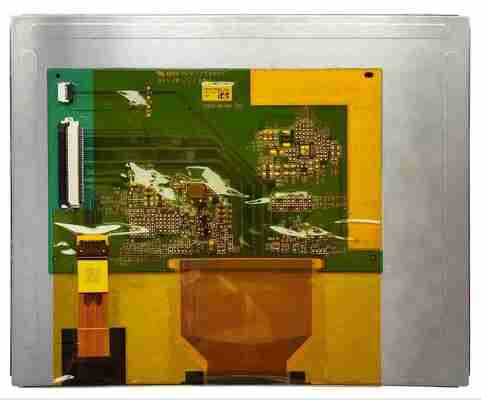

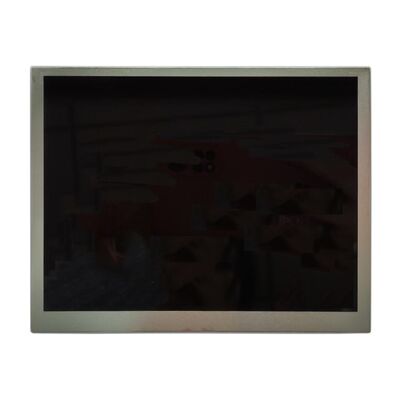

5.7 Inch 640×480 TFT LCD Module M057GWV3 R0 TTL Interface for Industrial Control Equipment
  • name
  • name
  • name
  • name

5.7 Inch 640×480 TFT LCD Module M057GWV3 R0 TTL Interface for Industrial Control Equipment

MOQ: 300 pieces
Price: $50.99-56.99/pieces
Standard Packaging: 20*18*8
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
M057GWV3 R0
Product Description
5.7 Inch 640*480 TFT LCD Module M057GWV3 R0 TTL Interface
High performance 5.7 inch a-Si TFT LCD module with 640*480 resolution, TTL interface, 500 cd/m² high brightness, 1000:1 high contrast ratio and wide viewing angle. Designed for industrial control, HMI systems, instrumentation, medical devices and embedded display applications.
Product Overview
This 5.7 inch color active matrix TFT LCD module uses a-Si thin film transistor technology and integrated backlight system, offering 640*480 VGA resolution and RGB vertical stripe pixel arrangement for clear and stable imaging. With normally black display mode, it delivers typical 500 cd/m² brightness, 1000:1 contrast ratio and 35ms response time, supporting 262K colors and 72% NTSC color gamut. Adopting standard TTL logic interface and 40-pin connector, it features wide viewing angle up to 85/85/85/85 deg, operating temperature from -20℃ to 70℃, and RoHS compliance. The module provides reliable performance, easy integration and long LED lifetime up to 50,000 hours, ideal for industrial HMI, control panels, medical equipment, handheld terminals and various embedded systems.
Technical Specifications
Display Type 5.7 Inch a-Si TFT LCD Module, Normally Black
Panel Size 5.7 Inch Diagonal
Resolution 640 * 480 Pixels (VGA)
Active Area 115.2 * 86.4 mm
Outline Dimensions 127.2(W) * 100.4(H) * 8.0(D) mm (Typ./Max.)
Pixel Pitch 0.06 * 0.18 mm
Pixel Arrangement RGB Vertical Stripe
Display Mode Normally Black, Transmissive
Brightness 500 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.)
Response Time 35 ms (Typ.)
Viewing Angle 85/85/85/85 deg (CR≥10)
Color 262K
NTSC 72% (Typ.)
Interface TTL Logic, 40-pin Connector
Input Voltage 3.3V (Typ.)
Power Consumption 1.622W (Max.)
Weight 100g (Max.)
Operating Temperature -20℃ ~ +70℃
Storage Temperature -30℃ ~ +80℃
Surface Treatment
Compliance RoHS Compliant
Key Features
  • 5.7 inch standard industrial TFT LCD module with 640*480 VGA resolution
  • a-Si TFT active matrix technology with normally black display mode
  • High brightness 500 cd/m² and high contrast 1000:1 for clear visibility
  • Wide viewing angle 85/85/85/85 degrees for multi-direction reading
  • Standard TTL logic interface with 40-pin connector for easy integration
  • 35ms fast response time to avoid motion blur
  • 262K colors and 72% NTSC for stable and natural color performance
  • Wide operating temperature range for industrial environment
  • Long LED backlight lifetime up to 50,000 hours
  • HC surface treatment to protect panel from scratch and damage
  • Compact and reliable mechanical structure for stable installation
  • RoHS compliant and meets industrial environmental requirements
Applications
  • Industrial HMI (Human Machine Interface) control panels
  • Industrial automation equipment and control systems
  • Medical diagnostic and monitoring instruments
  • Handheld terminals and portable testing devices
  • Embedded systems and industrial display solutions
  • Instrumentation and measuring equipment
  • Automotive electronics and vehicle on-board displays
  • Smart devices and IoT industrial display applications
Product Documentation
5.7 Inch 640×480 TFT LCD Module M057GWV3 R0 TTL Interface for Industrial Control Equipment 0
Product Drawing
5.7 Inch 640×480 TFT LCD Module M057GWV3 R0 TTL Interface for Industrial Control Equipment 1
Application examples in industrial and consumer devices
5.7 Inch 640×480 TFT LCD Module M057GWV3 R0 TTL Interface for Industrial Control Equipment 2
Partner companies and collaborative projects
5.7 Inch 640×480 TFT LCD Module M057GWV3 R0 TTL Interface for Industrial Control Equipment 3
Manufacturing facility and quality control environment
5.7 Inch 640×480 TFT LCD Module M057GWV3 R0 TTL Interface for Industrial Control Equipment 4
Shipping methods and delivery information
Company Profile
Shenzhen Yingzhanying Technology Co., Ltd. (YZY) was founded in January 2018 and is located in Shenzhen, China--a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company specializes in custom services, R&D, sales and after-sales services in the optoelectronic display industry.
Products include Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, and financial services.
Frequently Asked Questions
How do you control product quality?
Each product undergoes strict testing before shipping following MIL-STD-105E sampling plan and multiple reliability tests including temperature cycling, vibration test and display performance validation.
Do you supply samples?
Yes, we provide samples for customer evaluation and functional testing.
What is the delivery time?
Typically 7 working days after payment confirmation for standard orders. Custom orders may require additional lead time.
What is the minimum order quantity?
1 piece minimum order quantity for sample orders, with flexible MOQ for bulk production.
What if we receive missing or defective items?
Contact us immediately for investigation and prompt resolution. We offer replacement or refund for confirmed quality issues.
What are your main products?
Comprehensive range including LCD modules, LCM, touch modules, LCD panels, FPC boards and optoelectronic materials for industrial, medical, automotive and consumer electronics applications.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments, Western Union, and PayPal for small orders.
What shipping methods do you offer?
DHL, FedEx, UPS and China Post shipping services available. Express delivery is available for urgent orders.
