| Brand Name: | YZY |
| Model Number: | YVT088FHD-X02 |
| MOQ: | 500 pcs |
| Price: | $16–19 / Piece |
| Payment Terms: | T/T |
Industrial Long‑Strip Normally‑Black TFT LCD Assembly | LVDS 600×1600 500cd/m² Touch Screen

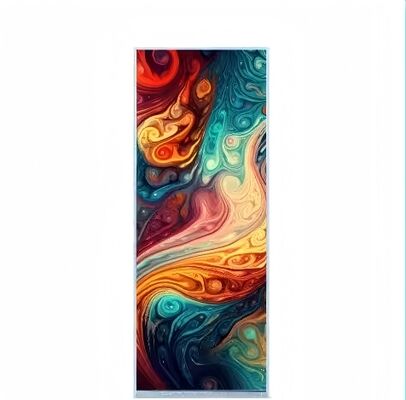

Front appearance of full‑bonded touch display assembly
This 8.88‑inch CTP+OCA+LCM full‑laminated touch assembly integrates TFT LCD panel and capacitive touch panel by OCA optical bonding. It adopts Normally‑Black display mode, LVDS interface, native resolution 600×1600, typical brightness up to 500cd/m², contrast ratio 1000:1.
The module passes complete industrial‑grade reliability tests including high‑low temperature storage & operation, thermal shock and ESD test. Suitable for various long‑strip industrial embedded touch control equipment. FPC surface added conductive cloth for better anti‑interference performance.
Rear side with FPC connector, conductive cloth on LCM‑FPC for anti‑interference
| Item | Specification |
|---|---|
| Display Size | 8.88 Inch Long‑Strip |
| Resolution | 600 × 1600 Pixels |
| Active Area | 76.36 × 203.62 mm |
| Outline Dimension | 82 × 212.3 × 4.5 mm |
| Interface Type | LVDS 40Pins |
| Display Mode | Normally‑Black |
| Brightness(Typ.) | 600 cd/m² |
| Contrast Ratio | 1000:1(Typ.) |
| Color Gamut | 65% NTSC(Typ.) |
| Touch Type | Capacitive Touch,Full OCA Bonding |
85° all‑direction wide viewing angle performance illustration
Each finished module undergoes strict industrial reliability verification, covering temperature cycle, high‑low temperature operation and storage, humidity, vibration, shock and ESD discharge test to guarantee stable performance under complex working environment.
| Test Project | Test Condition |
|---|---|
| High Temperature Storage | 85℃, 96 Hours power‑off |
| Low Temperature Storage | -30℃, 96 Hours power‑off |
| High Temperature Operation | 85℃, 96 Hours powered‑on |
| Low Temperature Operation | -20℃, 96 Hours powered‑on |
| ESD Discharge Test | Contact ±4KV / Air ±8KV |
Outline structure drawing for mechanical housing design reference
This is complete CTP+OCA+LCM full‑laminated finished assembly. We can provide sample supply and bulk order support, offer datasheet and mechanical drawing documents. Partial customization such as FPC length is acceptable. Product complies with RoHS requirements, 12‑month warranty under normal operating conditions.
Welcome to inquire samples, quotation and customized touch display solutions.
