| Brand Name: | YZY |
| Model Number: | YVO0784ISL-X1 |
| MOQ: | 500 pcs |
| Price: | $20–24.5 / Piece |
| Payment Terms: | T/T |
High Brightness Industrial Long‑Strip Screen | LVDS Interface 400RGB×1280

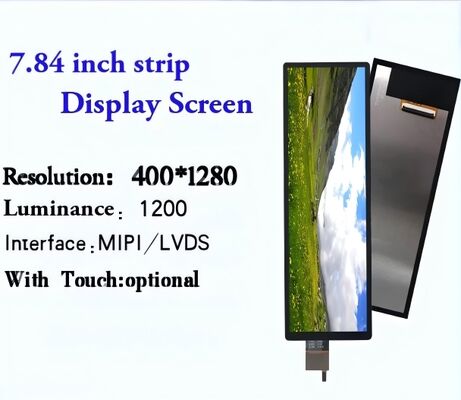

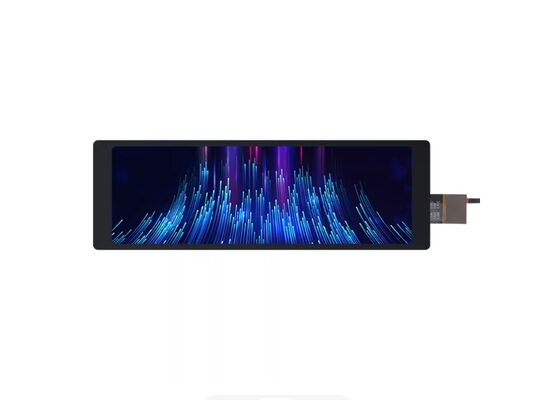

Product Front View
Mechanical Dimension Drawing
This 7.84‑inch long‑strip TFT‑LCD module features 400(RGB)×1280 resolution with LVDS interface. Equipped with 24‑piece white LED backlight, it reaches high brightness up to 1200 cd/m², 70% NTSC wide color gamut and 80° full viewing angle. Stable performance for industrial equipment under ‑20℃~+70℃ working temperature.
Industrial Long‑Strip Display Application
Suitable for industrial control panels, intelligent equipment displays, special embedded terminals and other scenarios that require high brightness and stable operation in wide temperature environments.
| Item | Specification |
|---|---|
| Display Size | 7.84 Inch Long‑Strip |
| Resolution | 400(RGB) × 1280 Pixels |
| Active AA Area | 59.40(W) × 190.08(H) mm |
| Outline Dimension | 67.80 × 205.78 × 4.75 mm |
| Interface | LVDS |
| Brightness(Typ.) | 1200 cd/m² |
| Contrast Ratio(Typ.) | 900 |
| NTSC Color Gamut | 70% |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Test Project | Test Condition |
|---|---|
| High Temperature Storage | 80℃, 96 Hours power‑off |
| Low Temperature Storage | -30℃, 96 Hours power‑off |
| High Temperature Operation | 70℃, 96 Hours powered‑on |
| Low Temperature Operation | -20℃, 96 Hours powered‑on |
| Temperature Cycle Test | -30℃~80℃, 20 Cycles |
Welcome to inquire samples, quotation and customized LCD module solutions.
