| Brand Name: | YZY |
| Model Number: | YVO068HD-X01 |
| MOQ: | 500 pcs |
| Price: | $16–19 / Piece |
| Payment Terms: | T/T |
Incell strip lcd screen MIPI interface with ultra wide temperature for industrial smart devices

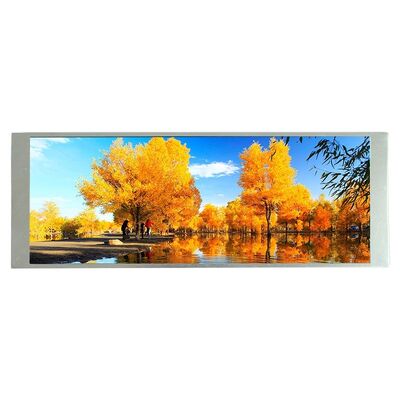

Product Front View

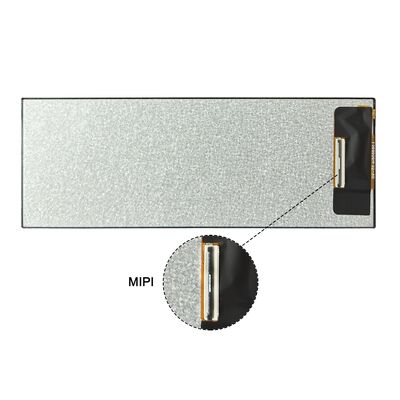

Product Back View
This 6.88‑inch Incell TFT‑LCD module adopts transmissive Normally‑Black display mode, resolution 480×1280, equipped with MIPI high‑speed interface. It supports ultra wide temperature of -30℃ ~ +80℃, typical brightness 500cd/m², 65% NTSC color gamut, 85‑degree full viewing angle. Built‑in 12 parallel/series white LED backlight, suitable for industrial control and various harsh‑environment embedded strip display equipment.
| Item | Specification |
|---|---|
| Display Size | 6.88 Inch Incell |
| Resolution | 480 × 1280 Pixels |
| Active AA Area | 160.512(W) × 60.192(H) mm |
| Outline Dimension | 181 × 66.7 × 4.7 mm |
| Display Mode | Transmissive Normally Black |
| Interface | MIPI |
| Backlight | 12 PCS White LED Parallel/Series |
| Brightness(Typ.) | 500 cd/m² |
| NTSC Color Gamut(Typ.) | 65% |
| Operating Temperature | -30℃ ~ +80℃ |
| Storage Temperature | -30℃ ~ +80℃ |
Mechanical Dimension Drawing
| Test Project | Test Condition |
|---|---|
| High Temperature Storage | 80℃, 96 Hours power‑off |
| Low Temperature Storage | -30℃, 96 Hours power‑off |
| High‑Humidity Operation | 60℃, 90%RH, 96 Hours powered‑on |
| Low Temperature Operation | -20℃, 96 Hours powered‑on |
| High Temperature Operation | 70℃, 96 Hours powered‑on |
| Thermal Shock Test | -30℃ ~ 80℃,72 cycles |
Welcome to inquire samples, quotation and custom lcd module solutions.
