10.1 Inch 1024×600 TFT LCD Display 50Pin RGB Interface for Industrial Equipment
  • name
  • name
  • name
  • name

10.1 Inch 1024×600 TFT LCD Display 50Pin RGB Interface for Industrial Equipment

MOQ: 300 pieces
Price: $17.69-21.99/pieces
Standard Packaging: 40*25*15
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YNO101WSVR-X01
Product Description
YNO101WSVR-X01 10.1 Inch TFT LCD Module
High-performance 10.1-inch a-Si TFT LCD module with 1024×600 resolution, 50Pin TTL RGB interface, 500 cd/m² high brightness and Anti-Glare surface treatment. Designed for industrial control, HMI systems, instrumentation and embedded display applications.
Product Overview
This industrial-grade 10.1-inch TFT LCD module adopts a-Si active matrix technology with Normally White transmissive display mode. It features 1024×600 resolution, 50Pin FPC connector with TTL RGB interface, 500 cd/m² typical brightness and 450:1 typical contrast ratio. The module offers wide viewing angles, 8ms fast response time, 52% NTSC color gamut and Anti-Glare surface treatment. With reliable wide temperature performance and long-life LED backlight up to 30,000 hours, it delivers stable display quality and easy integration for industrial HMI, automation equipment, medical devices and embedded systems.
Technical Specifications
Display Type 10.1 Inch a-Si TFT-LCD Module
Model Number YNO101WSVR-X01
Panel Size 10.1 Inch (Diagonal)
LCD Type a-Si TFT Active Matrix, Transmissive
Display Mode Normally White
Resolution 1024(RGB) × 600 Pixels
Pixel Pitch 0.2175×0.2088 mm
Active Area 222.72×125.28 mm

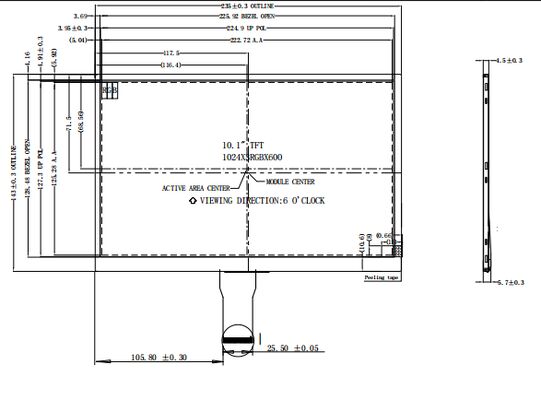

Outline Dimension 235.0×143.0×4.5 mm
Interface 50Pin FPC, TTL RGB Interface
Brightness 500 cd/m² (Typ.)
Contrast Ratio 450:1 (Typ.)
Response Time 8 ms (Typ.)
Viewing Angle 70/50/60/60 deg (Typ.)
Color Gamut 52% NTSC (Typ.)
Surface Treatment Anti-Glare
Backlight WLED, 30,000 Hours Lifetime
Backlight Voltage 19.8V (Typ.)
Backlight Current 160 mA (Typ.)
Input Voltage 3.3V (Typ.)
Operating Temperature -20℃ ~ +70℃
Storage Temperature -30℃ ~ +80℃
Luminance Uniformity 75% (Typ.)
Compliance RoHS Compliant
Key Features
  • 10.1-inch industrial TFT LCD with 1024×600 high resolution for sharp imaging
  • a-Si TFT active matrix technology with normally white transmissive display mode
  • 50Pin FPC connector with standard TTL RGB interface for easy integration
  • 500 cd/m² high brightness for clear visibility in various ambient environments
  • 8ms fast response time to avoid motion blur and ghosting
  • Wide viewing angles for clear display from different perspectives
  • Anti-Glare surface treatment to reduce reflection and improve readability
  • 52% NTSC color gamut for stable and natural color performance
  • Long-life WLED backlight up to 30,000 hours for long-term reliability
  • Wide operating temperature range for harsh industrial environments
  • Compact and slim mechanical structure for space-saving installation
  • Strict reliability testing ensures stable performance and long service life
  • RoHS compliant, meeting international environmental and safety standards
Applications
  • Industrial HMI (Human Machine Interface) control panels
  • Industrial automation equipment and control systems
  • Medical diagnostic and monitoring instruments
  • Handheld terminals and portable testing devices
  • Embedded systems and industrial display solutions
  • Precision measuring instruments and meters
  • Automotive electronics and vehicle-mounted displays
  • Smart devices and IoT industrial display applications
Product Documentation
10.1 Inch 1024×600 TFT LCD Display 50Pin RGB Interface for Industrial Equipment 0

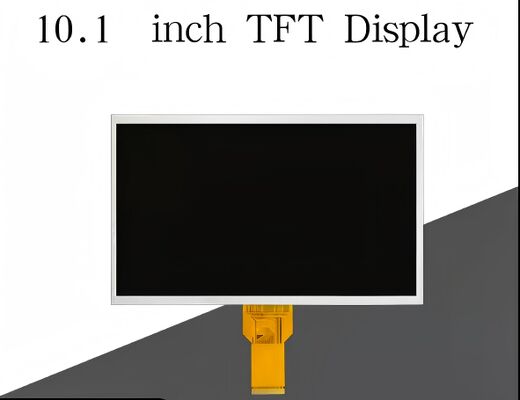

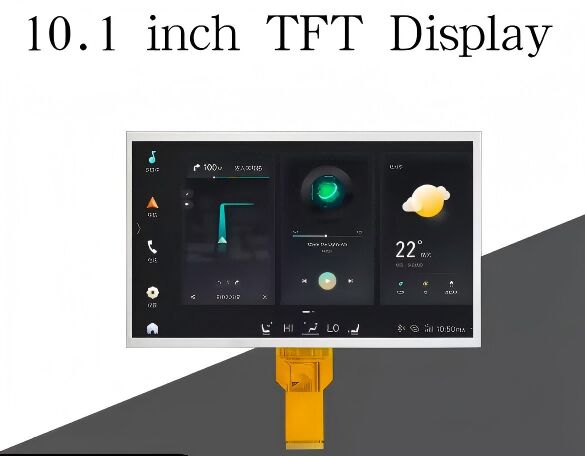

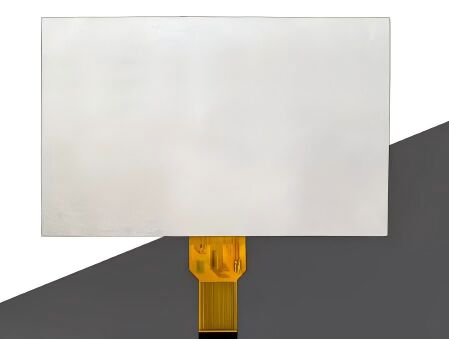

Product Image
10.1 Inch 1024×600 TFT LCD Display 50Pin RGB Interface for Industrial Equipment 1
Application examples
10.1 Inch 1024×600 TFT LCD Display 50Pin RGB Interface for Industrial Equipment 2
Partner companies
10.1 Inch 1024×600 TFT LCD Display 50Pin RGB Interface for Industrial Equipment 3
Manufacturing facility and quality control
10.1 Inch 1024×600 TFT LCD Display 50Pin RGB Interface for Industrial Equipment 4
Shipping methods and delivery information
Company Profile
Shenzhen Yingzhanying Technology Co., Ltd. (YZY) was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company specializes in custom services, R&D, sales and after-sales services in the optoelectronic display industry.
Products include Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, and financial services.
Frequently Asked Questions
  • How do you control product quality?
    Each product undergoes strict testing before shipping following MIL-STD-105E sampling plan and multiple reliability tests including temperature cycling, vibration test and display performance validation.
  • Do you supply samples?
    Yes, we provide samples for customer evaluation and functional testing.
  • What is the delivery time?
    Typically 7 working days after payment confirmation for standard orders. Custom orders may require additional lead time.
  • What is the minimum order quantity?
    1 piece minimum order quantity for sample orders, with flexible MOQ for bulk production.
  • What if we receive missing or defective items?
    Contact us immediately for investigation and prompt resolution. We offer replacement or refund for confirmed quality issues.
  • What are your main products?
    Comprehensive range including LCD modules, LCM, touch modules, LCD panels, FPC boards and optoelectronic materials for industrial, medical, automotive and consumer electronics applications.
  • What payment methods do you accept?
    We accept T/T (Telegraphic Transfer) payments, Western Union, and PayPal for small orders.
  • What shipping methods do you offer?
    DHL, FedEx, UPS and China Post shipping services available. Express delivery is available for urgent orders.
