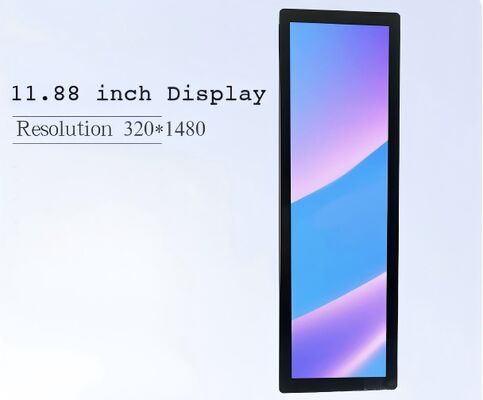

11.88 Inch IPS TFT LCD Module 320×1480 MIPI 800cd/m² High Brightness IPS for Industrial Control
  • name
  • name
  • name

11.88 Inch IPS TFT LCD Module 320×1480 MIPI 800cd/m² High Brightness IPS for Industrial Control

MOQ: 200 pieces
Price: $24.99-30.99/pieces
Standard Packaging: 30*45*15
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YVO1188GTM-X1
Product Description
11.88 Inch TFT LCD Display Module 320*1480 MIPI IPS Full Viewing Angle LCD Screen
High-performance 11.88-inch TFT IPS LCD module with 320*1480 resolution, MIPI interface, 800cd/m² high brightness, IPS full viewing angle and wide temperature design, specially designed for automotive display, industrial control, smart home, automotive dashboard and embedded display applications.YVO1188GTM-X1.pdf
Product Overview
This 11.88-inch IPS TFT LCD module adopts a-Si TFT active matrix technology, supporting 16.7M full colors and stable image performance. It uses standard MIPI interface, 800cd/m² high brightness, IPS full viewing angle and ultra-thin structure design. With wide operating temperature from -20℃ to 70℃ and high reliability, it is an ideal long strip display solution for automotive electronics, industrial HMI, smart home control panel, commercial equipment and IoT intelligent terminals.
Technical Specifications
Display Type 11.88 Inch TFT-LCD, IPS, LCM
Model Number YVO1188GTM-X1
Resolution 320(H) * 1480(V) Pixels
Display Mode IPS, Full Viewing Angle, RGB Vertical Stripe
Display Colors 16.7M Colors
Panel Type Color Active Matrix IPS TFT LCD
Interface MIPI
Brightness 800 cd/m² (Typical)
Viewing Angle 85/85/85/85° Full Viewing Angle
Backlight White LED, 6S3P, 30000 Hours Life
Outline Dimension 65.00(W) * 282.00(H) * 4.50(D) mm
Active Area 268.176(H) * 57.984(V) mm
Pixel Pitch 0.1812*0.1812 mm
Surface Treatment IPS Anti-Glare Fine Sand
Color Gamut NTSC 65% (Typical)
Contrast Ratio 1000 (Typical)
Response Time 30ms (Typical)
Operating Temperature -20℃ ~ +70℃
Storage Temperature -30℃ ~ +80℃
Weight 120g
Compliance RoHS Compliant
Key Features
  • 11.88-inch long strip IPS TFT LCD with 320*1480 high resolution and 16.7M true colors
  • IPS full viewing angle technology for clear display from all directions
  • 800cd/m² high brightness for excellent readability in strong light environments
  • MIPI interface for stable and high-speed signal transmission
  • White LED backlight with long service life up to 30000 hours
  • IPS fine sand anti-glare surface treatment for better visual experience
  • Ultra-thin and compact structure for easy integration into end products
  • Wide temperature range for stable operation in harsh industrial environments
  • High reliability passed high/low temperature and humidity reliability tests
  • RoHS compliant, fully meet international environmental protection standards
  • Support OEM & ODM customization for FPC, pin definition and structure
Applications
  • Automotive dashboard, central control display and air conditioner panel
  • Industrial control panels, PLC equipment and industrial human-machine interaction
  • Smart home control panels and smart home appliance long strip displays
  • Commercial POS machines, self-service equipment and advertising displays
  • IoT intelligent terminals and industrial display equipment
  • Handheld industrial instruments and testing devices
  • Medical device displays and electronic monitoring equipment
  • Custom LCD display solutions for various OEM/ODM industrial projects
Product Documentation
11.88 Inch IPS TFT LCD Module 320×1480 MIPI 800cd/m² High Brightness IPS for Industrial Control 0
Product Image
11.88 Inch IPS TFT LCD Module 320×1480 MIPI 800cd/m² High Brightness IPS for Industrial Control 1
Application examples in industrial and consumer devices
11.88 Inch IPS TFT LCD Module 320×1480 MIPI 800cd/m² High Brightness IPS for Industrial Control 2
Partner companies and collaborative projects
11.88 Inch IPS TFT LCD Module 320×1480 MIPI 800cd/m² High Brightness IPS for Industrial Control 3
Manufacturing facility and quality control environment
11.88 Inch IPS TFT LCD Module 320×1480 MIPI 800cd/m² High Brightness IPS for Industrial Control 4
Shipping methods and delivery information
Company Profile
Shenzhen Yingzhanying Technology Co., Ltd. (YZY) was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company specializes in custom services, R&D, sales and after-sales services in the optoelectronic display industry.
Products include Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, and financial services.
Frequently Asked Questions
How do you control product quality?
Each product undergoes strict testing before shipping following MIL-STD-105E sampling plan and multiple reliability tests including high/low temperature storage, high temperature & high humidity operation and image sticking test.
Do you supply samples?
Yes, we provide samples for customer evaluation and functional testing.
What is the delivery time?
Typically 7 working days after payment confirmation for standard orders. Custom orders may require additional lead time.
What is the minimum order quantity?
200 piece minimum order quantity for sample orders, with flexible MOQ for bulk production.
What if we receive missing or defective items?
Contact us immediately for investigation and prompt resolution. We offer replacement or refund for confirmed quality issues.
What are your main products?
Comprehensive range including LCD modules, LCM, touch modules, LCD panels, FPC boards and optoelectronic materials for industrial, medical, automotive, smart home and consumer electronics applications.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments, Western Union, and PayPal for small orders.
What shipping methods do you offer?
DHL, FedEx, UPS and China Post shipping services available. Express delivery is available for urgent orders.
