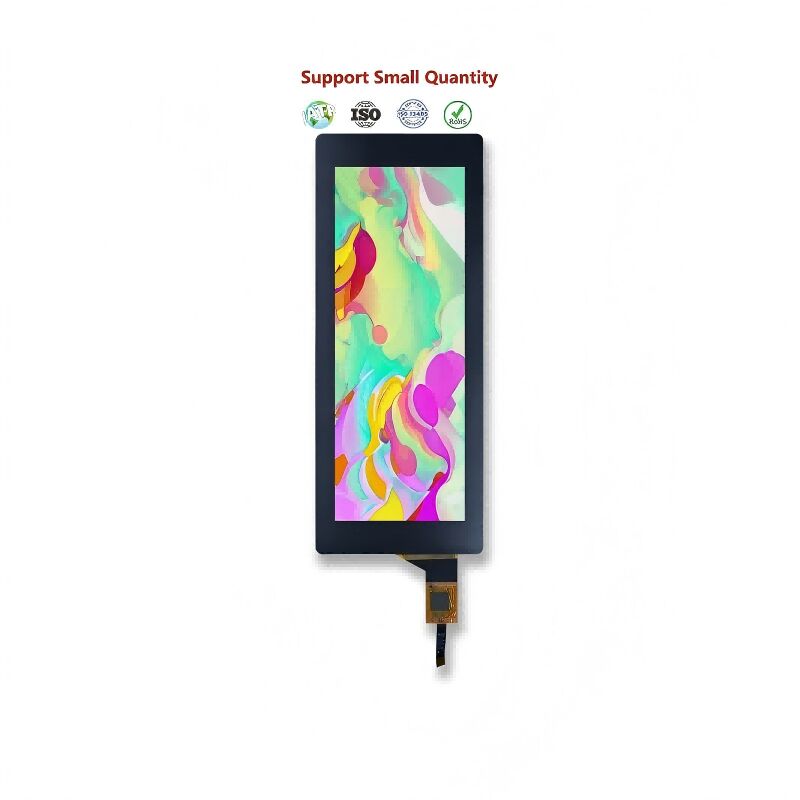

6.86-inch IPS TFT LCD Display 480×1280 MIPI 600cd/m² Touch Module for Industrial Control
  • name
  • name
  • name
  • name

6.86-inch IPS TFT LCD Display 480×1280 MIPI 600cd/m² Touch Module for Industrial Control

MOQ: 300 pieces
Price: $13.99-18.99/pieces
Standard Packaging: 30*20*15
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YVT068HD-X01
Product Description
6.86 Inch TFT LCD Display Module 480×1280 MIPI IPS Full Laminated Touch Screen YVT068HD-X01
High-performance 6.86-inch TFT IPS LCD module with 480×1280 resolution, MIPI interface, 600cd/m² high brightness, IPS full viewing angle and full laminated CTP touch, specially designed for industrial control, automotive display, smart HMI, handheld device and embedded display applications.YVT068HD-X01data sheet .pdf
Product Overview
This 6.86-inch IPS TFT LCD module adopts a-Si TFT active matrix technology with full laminated CTP touch (ILI2131). It supports high contrast image and stable display performance. Standard MIPI interface, 600cd/m² high brightness, IPS full viewing angle and compact structure design. With wide operating temperature from -20℃ to 70℃ and high reliability, it is an ideal display solution for industrial HMI, automotive electronics, smart devices, medical equipment and intelligent terminals.
Technical Specifications
Display Type 6.86 Inch TFT-LCD, IPS, LCM+CTP Full Laminated
Model Number YVT068HD-X01
Resolution 480(H) × 1280(V) Pixels
Display Mode IPS, Full Viewing Angle, Transmissive
Display Colors Standard TFT Display
Panel Type Color Active Matrix IPS TFT LCD
Interface MIPI
Touch Panel Capacitive Touch (CTP), ILI2131
Brightness 600 cd/m² (Typical)
Viewing Angle 85/85/85/85° Full Viewing Angle
Contrast Ratio 1000 (Typical)
Response Time 30ms (Typical)
Backlight White LED, 6S2P, 30000 Hours Life
Outline Dimension 192.4×78×6.8 mm
Active Area 160.512×60.192 mm
Pixel Pitch 125.46×41.82 μm
Surface Treatment IPS Fine Sand, haze 15%
Color Gamut NTSC 65% (Typical)
Operating Temperature -20℃ ~ +70℃
Storage Temperature -30℃ ~ +80℃
Touch IC ILI2131
Compliance RoHS Compliant
Key Features
  • 6.86-inch IPS TFT LCD with 480×1280 high resolution and clear image
  • IPS full viewing angle technology for clear display from all directions
  • 600cd/m² high brightness for excellent readability in strong light environments
  • MIPI interface for stable and high-speed signal transmission
  • Built-in CTP capacitive touch with ILI2131 controller
  • Full laminated structure for high transmittance and better display effect
  • IPS fine sand anti-glare surface treatment for better visual experience
  • Compact and thin design for easy integration into various devices
  • Wide temperature range for stable operation in harsh industrial environments
  • High reliability passed high/low temperature and humidity reliability tests
  • RoHS compliant, fully meet international environmental protection standards
  • Support OEM & ODM customization for FPC, structure and interface
Applications
  • Industrial control panels, HMI equipment and human-machine interaction
  • Automotive display, central control, air conditioner panel and on-board devices
  • Smart home control panel and intelligent household appliances
  • Handheld industrial instruments, testing and measuring equipment
  • Medical device display and electronic monitoring equipment
  • IoT intelligent terminals and commercial display equipment
  • Embedded system display and customized industrial display projects
  • Various electronic devices that require high-quality LCD display
Product Documentation
6.86-inch IPS TFT LCD Display 480×1280 MIPI 600cd/m² Touch Module for Industrial Control 0
Product Image
6.86-inch IPS TFT LCD Display 480×1280 MIPI 600cd/m² Touch Module for Industrial Control 1
Application examples in industrial and consumer devices
6.86-inch IPS TFT LCD Display 480×1280 MIPI 600cd/m² Touch Module for Industrial Control 2
Partner companies and collaborative projects
6.86-inch IPS TFT LCD Display 480×1280 MIPI 600cd/m² Touch Module for Industrial Control 3
Manufacturing facility and quality control environment
6.86-inch IPS TFT LCD Display 480×1280 MIPI 600cd/m² Touch Module for Industrial Control 4
Shipping methods and delivery information
Company Profile
Shenzhen Yingzhanying Technology Co., Ltd. (YZY) was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company specializes in custom services, R&D, sales and after-sales services in the optoelectronic display industry.
Products include Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, and financial services.
Frequently Asked Questions
How do you control product quality?
Each product undergoes strict testing before shipping following MIL-STD-105E sampling plan and multiple reliability tests including high/low temperature storage, high temperature & high humidity operation and image sticking test.
Do you supply samples?
Yes, we provide samples for customer evaluation and functional testing.
What is the delivery time?
Typically 7 working days after payment confirmation for standard orders. Custom orders may require additional lead time.
What is the minimum order quantity?
200 piece minimum order quantity for sample orders, with flexible MOQ for bulk production.
What if we receive missing or defective items?
Contact us immediately for investigation and prompt resolution. We offer replacement or refund for confirmed quality issues.
What are your main products?
Comprehensive range including LCD modules, LCM, touch modules, LCD panels, FPC boards and optoelectronic materials for industrial, medical, automotive, smart home and consumer electronics applications.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments, Western Union, and PayPal for small orders.
What shipping methods do you offer?
DHL, FedEx, UPS and China Post shipping services available. Express delivery is available for urgent orders.
