1.5 Inch Round LCD Display with 360×360 Resolution QSPI Interface and 16 Pin Connector for Smart Watches
  • name
  • name
  • name
  • name

1.5 Inch Round LCD Display with 360×360 Resolution QSPI Interface and 16 Pin Connector for Smart Watches

MOQ: 500 pieces
Price: $2.21~3.99/pieces
Standard Packaging: 15*15*8
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000Pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YVO0150HHS-J1
Highlight:

360×360 Resolution Round LCD Display

,

QSPI Interface TFT LCD Display Module

,

16 Pin Connector IPS TFT LCD Module

Product Description

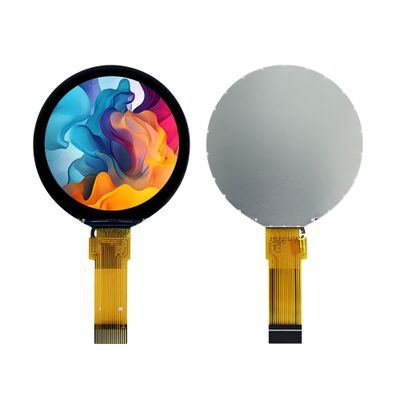

1.5 Inch IPS TFT LCD Display Module

1.5 inch small size IPS TFT LCD module with 360×360 resolution QSPI interface 262K full colors full viewing angle wide temperature range suitable for smart watches wearable devices smart home handheld instruments and embedded display applications

Product Overview

This 1.5 inch IPS TFT LCD module adopts IPS TFT active matrix technology with 360×360 high resolution 262K full colors and QSPI interface It features full viewing angle normally black display mode RGB vertical stripe color arrangement and ST77916 driver IC With wide operating temperature range high contrast ratio compact slim size and stable performance it is an ideal small size display solution for smart wearables intelligent terminals consumer electronics and portable devices

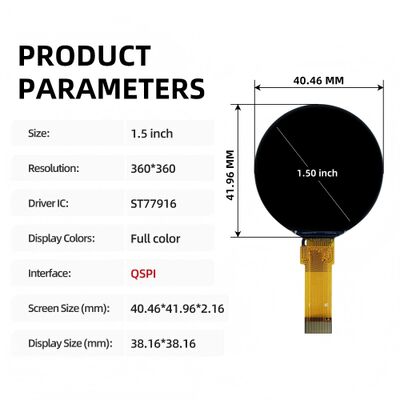

Technical Specifications
Display Type 1.5 Inch IPS TFT-LCD Module LCM
Model Number YVO0150HHS-J1
Part Number NT150XV-C16-01
Resolution 360(RGB) × 360 Pixels
Display Mode Normally Black RGB Vertical Stripe
Display Colors 262K Colors
Panel Type IPS Full Viewing Angle
Interface QSPI
Driver IC ST77916
Contrast Ratio 1500:1 (Typical)
Response Time 30 ms (Typical)
Viewing Angle 80/80/80/80 deg (ALL View)
Backlight White LED Backlight
Outline Dimension 40.46(W) × 41.96(H) × 2.16(T) mm
Active Area 38.16(W) × 38.16(H) mm
Pixel Pitch 0.0337 × 0.0101 mm
Touch Panel Without Touch
Operating Temperature -20°C ~ +70°C
Storage Temperature -30°C ~ +80°C
Backlight Voltage 3.0V (Typical)
Backlight Current 75 mA (Typical)
Power Supply VCC 2.8V IOVCC 1.8V (Typical)
Connector Pin 16 Pin Connector
Compliance RoHS Compliant
Key Features
  • 1.5 inch IPS TFT LCD with 360×360 high resolution and 262K full color display
  • IPS full viewing angle technology for clear image from all directions
  • High contrast ratio up to 1500:1 for vivid and sharp picture quality
  • QSPI interface for stable and efficient signal transmission
  • Built-in ST77916 driver IC for reliable and consistent performance
  • White LED backlight with stable brightness and long service life
  • Compact ultra thin design easy to integrate into small space devices
  • Wide operating temperature range suitable for various environments
  • Without touch panel design for custom touch solution matching
  • 16 pin connector for easy assembly and stable connection
  • RoHS compliant meets international environmental protection standards
  • Support OEM ODM customization for FPC and interface requirements

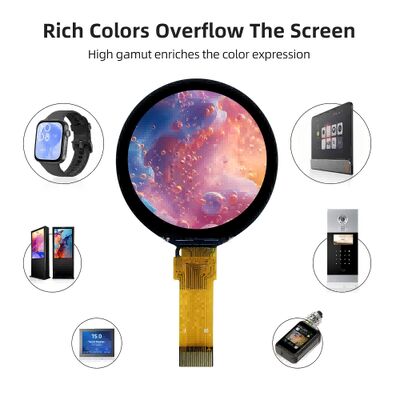

Applications
  • Smart watches and wearable electronic devices
  • Smart home control panels and small home appliance displays
  • Handheld industrial instruments and testing equipment
  • Portable consumer electronics and small smart terminals
  • Embedded systems and IoT intelligent display devices
  • Medical monitoring equipment and portable health devices
  • Automotive auxiliary display and car small indicator screens
  • Multimedia small players and digital electronic products
Product Documentation
1.5 Inch Round LCD Display with 360×360 Resolution QSPI Interface and 16 Pin Connector for Smart Watches 0
Product drawing
1.5 Inch Round LCD Display with 360×360 Resolution QSPI Interface and 16 Pin Connector for Smart Watches 1
Application examples in industrial and consumer devices
1.5 Inch Round LCD Display with 360×360 Resolution QSPI Interface and 16 Pin Connector for Smart Watches 2
Partner companies and collaborative projects
1.5 Inch Round LCD Display with 360×360 Resolution QSPI Interface and 16 Pin Connector for Smart Watches 3
Manufacturing facility and quality control environment
1.5 Inch Round LCD Display with 360×360 Resolution QSPI Interface and 16 Pin Connector for Smart Watches 4
Shipping methods and delivery information
Company Profile

Shenzhen Yingzhanying Technology Co., Ltd. (YZY) was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company specializes in custom services, R&D, sales and after-sales services in the optoelectronic display industry.

Products include Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, and financial services.

Frequently Asked Questions
How do you control product quality?

Each product undergoes strict testing before shipping following MIL-STD-105E sampling plan and multiple reliability tests including high/low temperature storage, high temperature & high humidity operation and image sticking test.

Do you supply samples?

Yes, we provide samples for customer evaluation and functional testing.

What is the delivery time?

Typically 7 working days after payment confirmation for standard orders. Custom orders may require additional lead time.

What is the minimum order quantity?

10 piece minimum order quantity for sample orders, with flexible MOQ for bulk production.

What if we receive missing or defective items?

Contact us immediately for investigation and prompt resolution. We offer replacement or refund for confirmed quality issues.

What are your main products?

Comprehensive range including LCD modules, LCM, touch modules, LCD panels, FPC boards and optoelectronic materials for industrial, medical, automotive, smart home and consumer electronics applications.

What payment methods do you accept?

We accept T/T (Telegraphic Transfer) payments, Western Union, and PayPal for small orders.

What shipping methods do you offer?

DHL, FedEx, UPS and China Post shipping services available. Express delivery is available for urgent orders.
