8.88 Inch Bar TFT LCD Touch Screen with 600x1600 Resolution and 500 Nits Brightness MIPI Display Module
  • name
  • name

8.88 Inch Bar TFT LCD Touch Screen with 600x1600 Resolution and 500 Nits Brightness MIPI Display Module

MOQ: 100 pcs
Price: $19.45-25.77 Piece
Payment Method: T/T
Supply Capacity: Up to 1,000 pcs/day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
YZY
Certification
CE，RoHS
Model Number
YVO0888KUM-X1
Screen Size:
8.88 Inch
Resolution:
600 × 1600
Module Size:
88.5 × 221.88 × 7.4 Mm
Active Area:
76.36 × 203.62 Mm
Brightness:
500 Cd/m²
Touch Type:
Capacitive Touch / CTP
Display Interface:
MIPI
Touch Interface:
I2C
Viewing Angle:
85/85/85/85 Typ.
Operating Temperature:
-20℃ To +85℃
Storage Temperature:
-30℃ To +85℃
LED Lifetime:
30,000 Hours
Highlight:

8.88 inch MIPI TFT LCD touch screen

,

600x1600 resolution LCD display module

,

500 nits brightness touch screen

Product Description
8.88 Inch Bar TFT LCD Touch Screen 600x1600 MIPI Interface GT911 CTP 500 Nits Display
Product Overview

This 8.88 inch bar type TFT LCD touch screen features 600x1600 resolution, MIPI interface and normally black display mode. It is designed as an LCM+CTP assembly with G+G capacitive touch structure, GT911 touch IC and 88.5 x 221.88 mm cover lens outline. The module supports 500 cd/m² typical brightness, 1000:1 contrast ratio, 70% NTSC color gamut and 85/85/85/85 typical viewing angle performance. With a long bar display structure and wide operating temperature range, it is suitable for smart terminals, industrial control panels, vehicle display systems, commercial equipment and customized bar touch display projects. Customization is available for brightness, cover lens, touch panel, FPC structure, interface and other specifications based on project requirements.

Key Features
  • 8.88 inch bar type TFT LCD touch screen with 600x1600 resolution
  • MIPI interface for smart terminal and embedded display systems
  • G+G capacitive touch structure with GT911 touch IC
  • 500 cd/m² typical brightness for clear equipment display use
  • 85/85/85/85 typical viewing angle for stable visual performance
  • 70% NTSC color gamut with normally black display mode
  • 2.5D cover glass edge and ≥6H surface hardness
  • Customization support for brightness, cover lens, FPC, touch and interface design
Product Display
8.88 Inch Bar TFT LCD Touch Screen with 600x1600 Resolution and 500 Nits Brightness MIPI Display Module 0

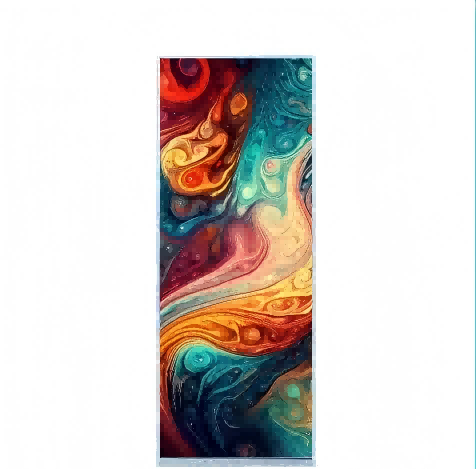

8.88 inch TFT LCD display module front view
8.88 Inch Bar TFT LCD Touch Screen with 600x1600 Resolution and 500 Nits Brightness MIPI Display Module 1

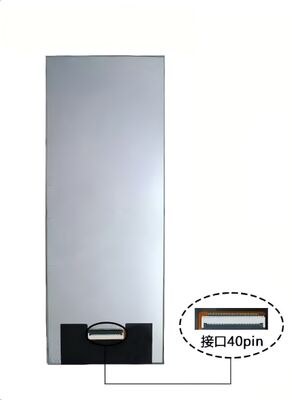

Additional display module view
Application Scenarios
  • Smart terminal displays requiring narrow bar touch screen structure
  • Industrial HMI control panels with MIPI display interface
  • Vehicle-mounted control screens and smart cockpit display panels
  • Commercial equipment touch panels and self-service terminals
  • Medical and testing equipment requiring vertical bar display modules
  • Custom embedded touch display projects using 8.88 inch MIPI LCM+CTP assemblies
Company Capabilities
8.88 Inch Bar TFT LCD Touch Screen with 600x1600 Resolution and 500 Nits Brightness MIPI Display Module 2
Professional testing and storage facilities
8.88 Inch Bar TFT LCD Touch Screen with 600x1600 Resolution and 500 Nits Brightness MIPI Display Module 3
Extensive inventory management systems
8.88 Inch Bar TFT LCD Touch Screen with 600x1600 Resolution and 500 Nits Brightness MIPI Display Module 4
Quality control and testing processes

Extensive Inventory: Over 1,000,000 self-owned stock items including Raspberry Pi boards, LCD monitors, touchscreens, cases, cables, and accessories from leading brands.

Competitive Pricing: Significant price advantages to reduce purchasing costs and save valuable time. We wholesale and distribute new, original, well-known brand electronic components worldwide.

Quality Assurance: Equipped with internationally advanced electronic component testing equipment and scientific storage systems to ensure consistent product quality.

Expert Team: Elite professionals with over 20 years of industry experience and deep understanding of international market trends.

Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
Do you supply samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically 7 working days after payment confirmation.
What is the minimum order quantity?
1 piece minimum order quantity.
What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including Raspberry Pi development boards, LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
What shipping methods do you offer?
DHL and China Post shipping services available.

8.88 Inch Bar TFT LCD Touch Screen with 600x1600 Resolution and 500 Nits Brightness MIPI Display Module 5
