1.33 Inch IPS TFT LCD 240x240 4-Wire SPI ST7789 Industrial Wide Temperature Display
  • name
  • name
  • name
  • name

1.33 Inch IPS TFT LCD 240x240 4-Wire SPI ST7789 Industrial Wide Temperature Display

MOQ: 500 pieces
Price: $2.99~6.99/pieces
Standard Packaging: 35*35*15
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000Pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YVO0133EES-J2
Highlight:

1.33 inch IPS TFT LCD display

,

240x240 SPI ST7789 LCD module

,

industrial wide temperature TFT screen

Product Description

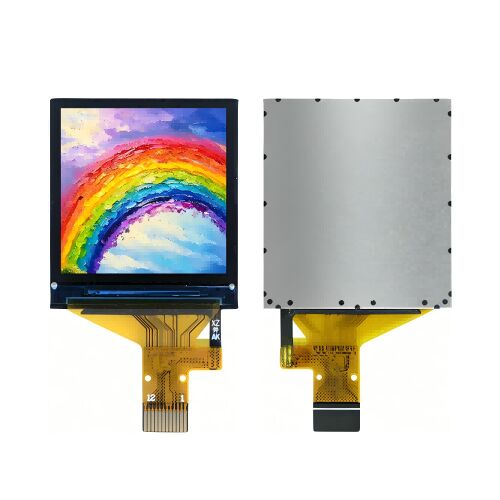

1.33 Inch IPS TFT LCD Display Module

1.33 inch IPS TFT LCD module with 240(RGB)×240 resolution, 4-wire SPI interface, 262K display colors, all viewing angle, wide temperature range, designed for smart wearables, portable medical devices, IoT terminals, handheld instruments and compact embedded display applications. We support customization service to meet diverse application demands.

Product Overview

This 1.33 inch IPS TFT LCD display module adopts IPS full-view technology and ultra-thin compact structure, supporting 240×240 high resolution and 262K rich color display. Equipped with 4-wire SPI interface and ST7789 driver IC, it features ultra-wide all-direction viewing angle, high contrast ratio, stable performance and long service life LED backlight. With operating temperature range from -20℃ to +70℃ and standard FPC interface, this module delivers clear and stable display for smart electronics and industrial control equipment.YVO0133EES-J2(NT133C7-C12-02)V1-Datasheet.pdf

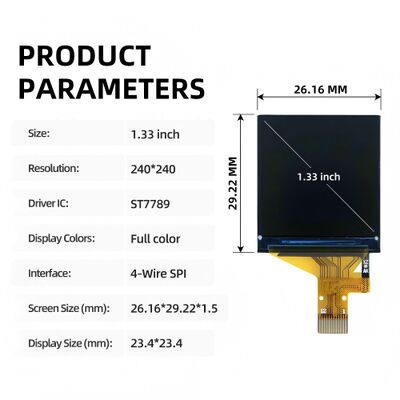

Technical Specifications
Display Type 1.33 Inch IPS TFT-LCD Module LCM
Model Number YVO0133EES-J2
Part Number NT133C7-C12-02
Resolution 240(RGB) × 240 Pixels
Display Mode Normally Black, IPS Transmissive
Display Colors 262K Colors
Viewing Angle All Direction Full View
Interface 4-wire SPI
Driver IC ST7789
Contrast Ratio 640:1 ~ 800:1 (Typical)
Backlight Voltage 2.9V ~ 3.1V (Typical 3.0V)
Backlight Current 40 mA (Typical)
Module Size 26.16(W) × 29.22(H) × 1.50(T) mm
Active Area 23.4(W) × 23.4(H) mm
Operating Temperature -20°C ~ +70°C
Storage Temperature -30°C ~ +80°C
Compliance RoHS Compliant
Key Features
  • 1.33 inch IPS TFT with 240×240 high resolution and 262K rich color display
  • All-direction IPS full viewing angle for clear image in every direction
  • High contrast ratio 640~800:1 for sharp and vivid visual performance
  • 4-wire SPI interface for easy MCU connection and stable signal transmission
  • Built-in ST7789 driver IC for reliable and consistent long-term operation
  • Ultra-thin 1.5mm thickness compact design for space-limited devices
  • Wide temperature -20℃~70℃ design suitable for industrial and consumer scenarios
  • Long lifespan LED backlight up to 50000 hours MTBF
  • RoHS compliant, environmentally friendly and safe to use
  • Strict reliability aging test ensures long-term stable performance
  • Support FPC length, pin definition and mechanical structure customization
  • Excellent optical performance for indoor and outdoor display applications
Applications
  • Smart watch, bracelet and wearable fitness devices
  • Portable medical instruments and health monitoring equipment
  • IoT smart terminals and compact embedded display systems
  • Handheld measurement tools and industrial small meters
  • Smart home control panels and miniature human-machine interfaces
  • Battery-powered portable devices and smart consumer electronics
  • Small automotive auxiliary displays and compact car electronics
  • Micro industrial control modules and intelligent miniature instruments
Product Documentation

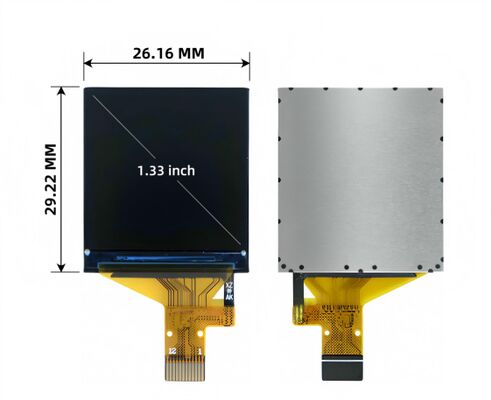

1.33 inch IPS TFT LCD Module technical drawing and dimensions
Product drawing
LCD module application examples in industrial and consumer devices
Application examples in industrial and consumer devices
Technology partner companies and collaborative projects
Partner companies and collaborative projects
Manufacturing facility and quality control environment
Manufacturing facility and quality control environment
Shipping methods and delivery information
Shipping methods and delivery information

Why Choose Us?

Extensive Product Supply: We support a wide range of display products and related consumer electronics accessories, including Raspberry Pi displays, LCD modules, touch screens, laptop screens, digital photo frames, HDMI LCD displays, industrial monitors, portable monitors, driver boards, e-paper displays, OLED display modules, ESP32 display modules, data cables and mobile phone screen protectors.



Competitive Pricing: With stable supply chain resources and flexible order support, we can provide cost-effective solutions for samples, small-batch orders and bulk projects.



Quality Control: Products are checked before shipment based on the product type, including appearance, packaging, basic function testing, and when applicable, screen display, touch response and power input.



Experienced Team: Our team has long-term experience in display products and international project support. We help customers confirm suitable models based on size, resolution, interface, function and application requirements.

Frequently Asked Questions
How do you control product quality?
Products are checked before shipment based on the product type, including appearance, packaging, basic function testing, and when applicable, display performance, touch response and power input.
Do you supply samples?
Yes, samples are available for testing and project evaluation.

What is the delivery time?

For standard models, delivery time depends on stock and order quantity. For customized products or project-based orders, we will confirm the lead time after checking the detailed requirements.


What is the minimum order quantity?

Sample order is available. Bulk order quantity can be discussed based on the product model, stock status and customization requirements.


Can you support customization?

Yes, customization can be supported for selected products, including screen size, resolution, touch panel, interface, cables, driver board, housing, storage, software functions or packaging, depending on the product type.


What if we receive missing or defective items?

Please contact us with photos or videos of the issue. We will check the case and provide a suitable solution as soon as possible.


What payment methods do you accept?

T/T payment is accepted. Other payment methods can be discussed before order confirmation.


What shipping methods do you offer?

DHL, FedEx, UPS, air freight, and China domestic forwarding services are available.
