9.3 Inch Bar TFT LCD Touch Screen with 600x1600 Resolution, 500 cd/m² Brightness, and MIPI Interface
  • name
  • name

9.3 Inch Bar TFT LCD Touch Screen with 600x1600 Resolution, 500 cd/m² Brightness, and MIPI Interface

MOQ: 100 pcs
Price: $1.99-199.9 Piece
Payment Method: T/T
Supply Capacity: Up to 1,000 pcs/day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
YZY
Certification
CE，RoHS
Model Number
YVT0930KVM-X1
Screen Size:
9.3 Inch
Resolution:
600 × 1600
Module Size:
91.80 × 237.80 × 6.60 Mm
Active Area:
82.944 × 221.184 Mm
Brightness:
500 Cd/m²
Touch Type:
Capacitive Touch / CTP
Display Interface:
MIPI
Touch Interface:
I2C
Viewing Angle:
85/85/85/85 Typ.
Operating Temperature:
-20℃ To +70℃
Storage Temperature:
-30℃ To +80℃
LED Lifetime:
30,000 Hours
Highlight:

9.3 inch TFT LCD touch screen

,

MIPI interface TFT LCD display

,

600x1600 resolution touch screen

Product Description
9.3 Inch Bar TFT LCD Touch Screen 600x1600 MIPI I2C 500 Nits Cover Glass Display
Product Overview

This 9.3 inch bar type TFT LCD display assembly features 600x1600 resolution, MIPI interface and I2C touch signal design. It supports 16.7M colors, normally black transmissive display mode, 500 cd/m² typical brightness, 1200:1 typical contrast ratio and full viewing angle performance. The module is designed with cover glass, 2.5D edge, black silk printing, ≥85% CG transmittance and ≥5H surface hardness, making it suitable for smart terminals, industrial control panels, vehicle display systems and custom vertical bar display applications. Customization is available for brightness, cover glass, touch solution, FPC structure, interface and other project requirements.

Key Features
  • 9.3 inch bar type TFT LCD display assembly with 600x1600 resolution
  • MIPI interface with 4-lane signal input for embedded display systems
  • I2C touch signal pins reserved for touch solution integration
  • 500 cd/m² typical brightness for clear equipment display use
  • Full viewing direction with 85/85/85/85 typical viewing angle
  • Cover glass design with 2.5D edge and black silk printing
  • 75% NTSC typical color gamut with 1200:1 typical contrast ratio
  • Customization support for brightness, cover glass, touch, FPC and interface design

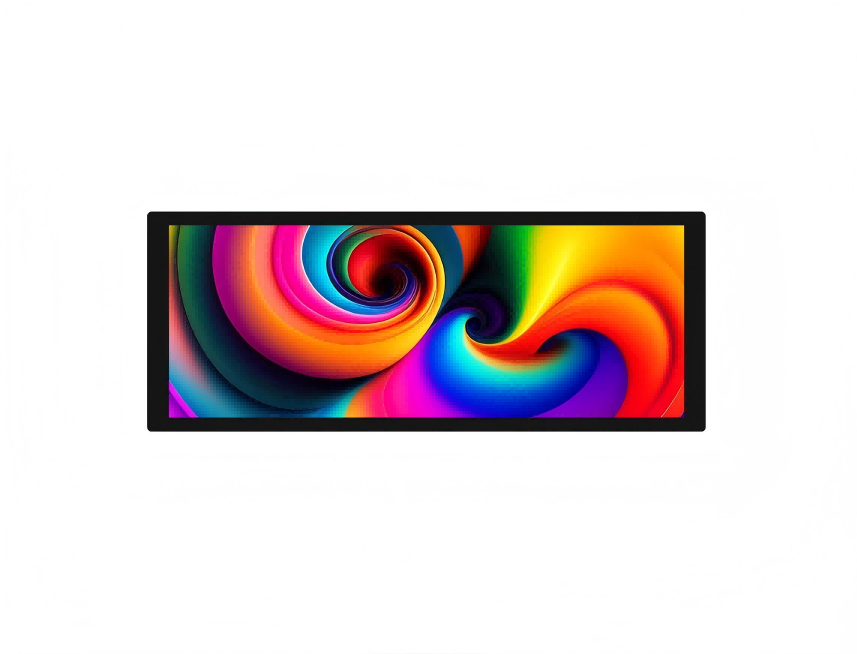

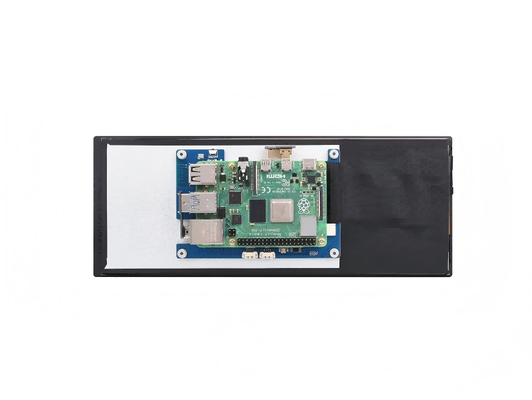

Product Display
9.3 Inch Bar TFT LCD Touch Screen with 600x1600 Resolution, 500 cd/m² Brightness, and MIPI Interface 0
9.3 Inch Bar TFT LCD Touch Screen with 600x1600 Resolution, 500 cd/m² Brightness, and MIPI Interface 1
Application Scenarios
  • Smart terminal displays requiring vertical bar LCD structure
  • Industrial HMI control panels with MIPI display interface
  • Vehicle-mounted control screens and dashboard display modules
  • Commercial equipment panels and self-service terminal displays
  • Medical and testing equipment requiring slim bar display assemblies
  • Custom embedded display projects using 9.3 inch 600x1600 LCD modules
Company Capabilities
9.3 Inch Bar TFT LCD Touch Screen with 600x1600 Resolution, 500 cd/m² Brightness, and MIPI Interface 2
9.3 Inch Bar TFT LCD Touch Screen with 600x1600 Resolution, 500 cd/m² Brightness, and MIPI Interface 3
9.3 Inch Bar TFT LCD Touch Screen with 600x1600 Resolution, 500 cd/m² Brightness, and MIPI Interface 4

Extensive Inventory: Over 1,000,000 self-owned stock items including Raspberry Pi boards, LCD monitors, touchscreens, cases, cables, and accessories from leading brands.

Competitive Pricing: Significant price advantages to reduce purchasing costs and save valuable time. We wholesale and distribute new, original, well-known brand electronic components worldwide.

Quality Assurance: Equipped with internationally advanced electronic component testing equipment and scientific storage systems to ensure consistent product quality.

Expert Team: Elite professionals with over 20 years of industry experience and deep understanding of international market trends.

Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
Do you supply samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically 7 working days after payment confirmation.
What is the minimum order quantity?
1 piece minimum order quantity.
What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including Raspberry Pi development boards, LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
What shipping methods do you offer?
DHL and China Post shipping services available.
9.3 Inch Bar TFT LCD Touch Screen with 600x1600 Resolution, 500 cd/m² Brightness, and MIPI Interface 5
Tags:

TFT LCD TouchScreen,

TFT Touch Display,

Custom TFT Display
