0.72" IPS Full View TFT LCD Screen 4-Wire SPI Small Display for Small Smart Devices and Embedded Systems

0.72 inch IPS TFT LCD module with 60(RGB)×160 resolution, 4-Wire SPI interface, 262K display colors, full all-direction viewing angle, ultra-compact size, and wide temperature design. Ideal for wearable devices, handheld instruments, small IoT terminals, portable meters, health monitors, and miniature embedded display applications. We provide stable supply and professional customization support for your project needs.

This 0.72 inch IPS TFT LCD module features normally black transmissive display mode and ultra-thin compact structure, adopting 60×160 vertical stripe resolution and 262K color display. Built-in GD9D01 driver IC and standard 4-Wire SPI interface, it supports full viewing angle from all directions, contrast ratio up to 1000:1, and low-power white LED backlight. Operating temperature ranges from -20℃ to +70℃, storage temperature -30℃~+80℃, with stable optical performance and 50000 hours long service life for small smart devices and industrial miniature display equipment.YVO0072ADS-J1 (NT072BB-C08-02) datasheet.pdf

• 0.72 inch IPS TFT LCD with 60×160 high resolution
• All direction full viewing angle, clear image from any side
• 262K colors display for clear and realistic picture
• 1000:1 high contrast ratio for sharp visual effect
• Standard 4-Wire SPI interface, easy to drive and integrate
• Built-in GD9D01 driver IC for stable and reliable performance
• Ultra-compact and ultra-thin structure for small space design
• Wide temperature range -20℃~70℃ for industrial and consumer use
• Low power consumption white LED backlight (20mA typical)
• 10000 hours backlight lifespan and 50000 hours MTBF
• RoHS compliant, environmental friendly material
• Stable performance under high/low temperature and humidity test
• Support FPC customization and pin definition adjustment

• Smart bracelet, wearable health tracker and mini wearable devices
• Handheld measuring instrument and portable testing meters
• Small IoT terminal and compact embedded display system
• Portable medical device and health monitoring equipment
• Smart home mini control panel and compact HMI
• Battery powered low power small electronic products
• Small consumer electronics and mini handheld gadgets
• Industrial micro control panel and compact display equipment

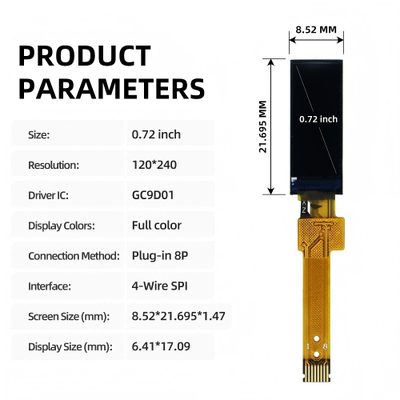

Product Drawing

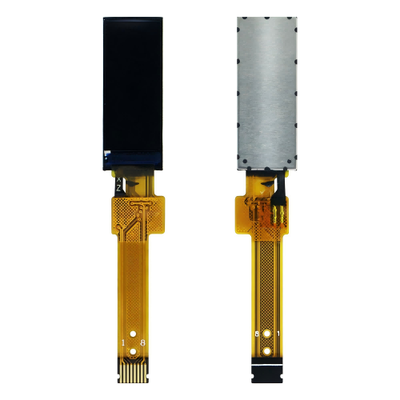

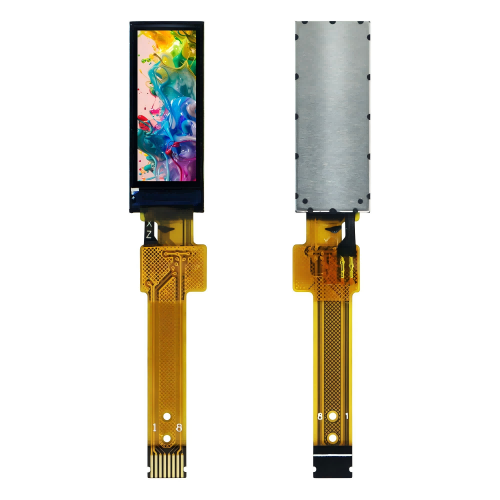

Product Image
